95
Operation
F-FEM-CON — Users Guide
4.12.12

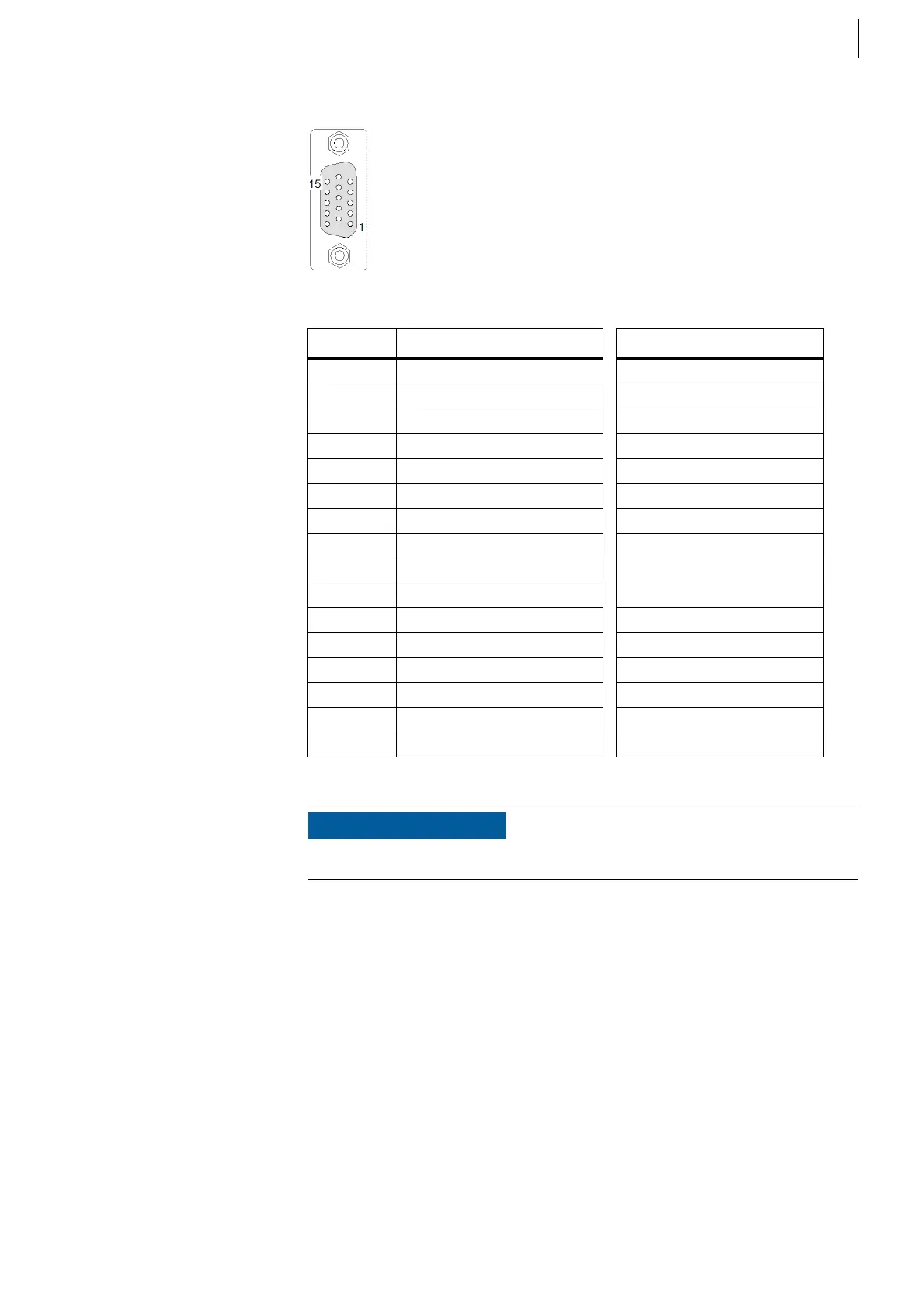

Add-on Connection: X24, X25
Fig. 69
Pin Signal at X24 Signal at X25
1 SLCK+ SLCK+
2 SCLK- SCLK-
3PL1+ PL2+
4PL1 PL2
5nc nc
6SDO1+ SDO2+
7SDO1 SDO2
8SDI1+ SDI2+
9SDI1 SDI2
10 WDOG_NO (24 V) WDOG_NO (24 V)
11 DGND DGND
12 GND_24 GND_24
13 + 24 V + 24 V
14 + 24 V + 24 V
15 GND_24 GND_24
Case Shielding Shielding
Tab. 32
NOTICE
At connector X24 and X25 only prefabricated cables may be used.
