AVL F-FEM-CON User Manual

89
Operation
F-FEM-CON — User’s Guide
4.12.5 Digital Inputs and Outputs X19, X20
These inputs and outputs can either be used directly or with an adapter (SUB-D
to terminal screws) or with the EMCON Strip (see EMCON Strip on page 101).

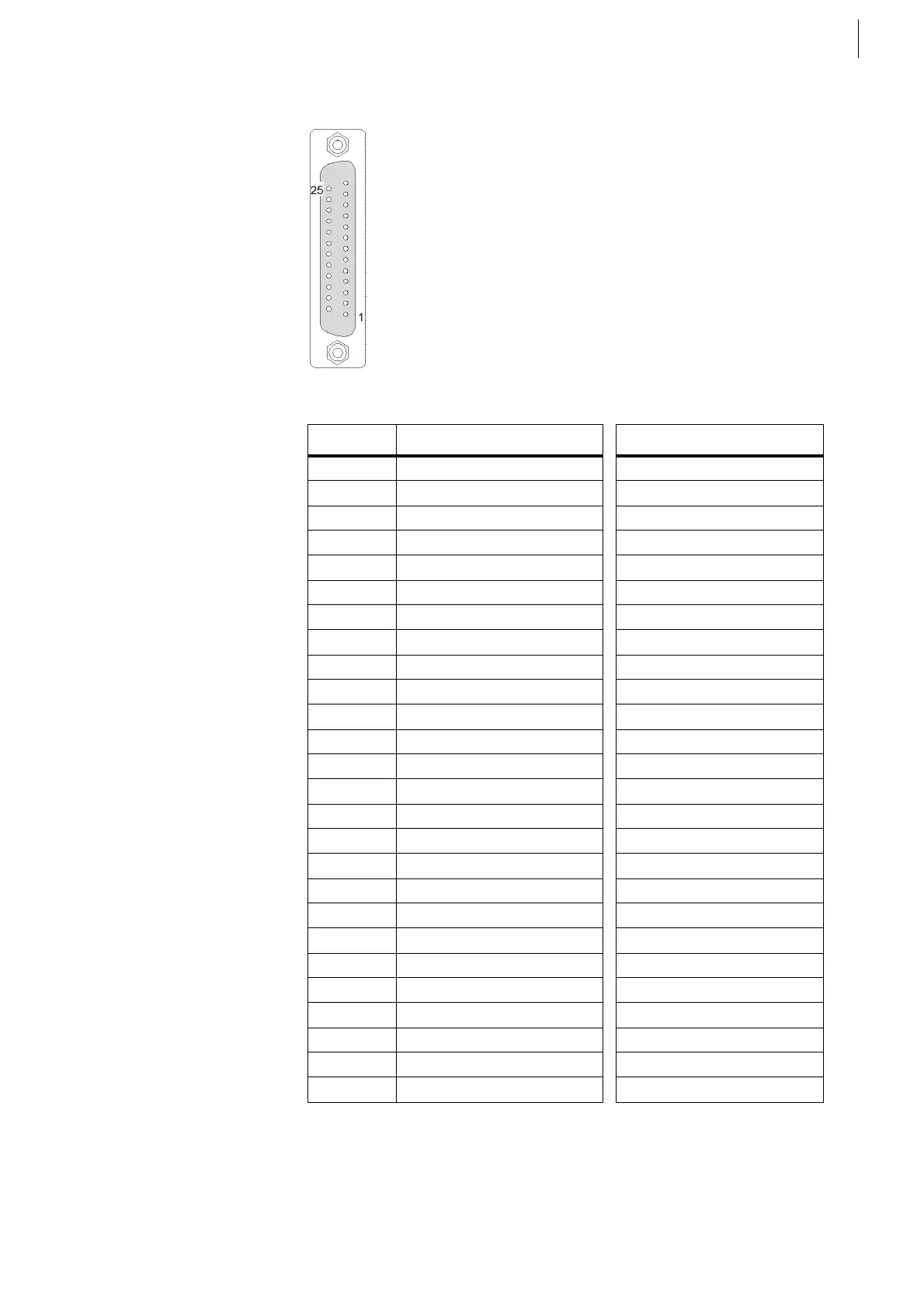

Fig. 62
Pin Signal at X19 Signal at X20
15 DI1 DI1
3DI2 DI2
16 DI3 DI3
4DI4 DI4
17 DI5 DI5
5DI6 DI6
18 DI7 DI7
6DI8 DI8
19 COMM_1-8 (for DI) COMM_1-8 (for DI)
25 6-48V (in for DO) 6-48V (in for DO)
8DO1 DO1
21 DO2 DO2
9DO3 DO3
22 DO4 DO4
10 DO5 DO5
23 DO6 DO6
11 DO7 DO7
24 DO8 DO8
12 GND_19 (for DO) GND_20 (for DO)
20 GND_19 (for DO) GND_20 (for DO)
14 +24V (out) +24V (out)
2GND_24 GND_24
1PE PE
7NC NC
13 NC NC
Case PE PE
Tab. 25
