Operation
78
F-FEM-CON — User’s Guide

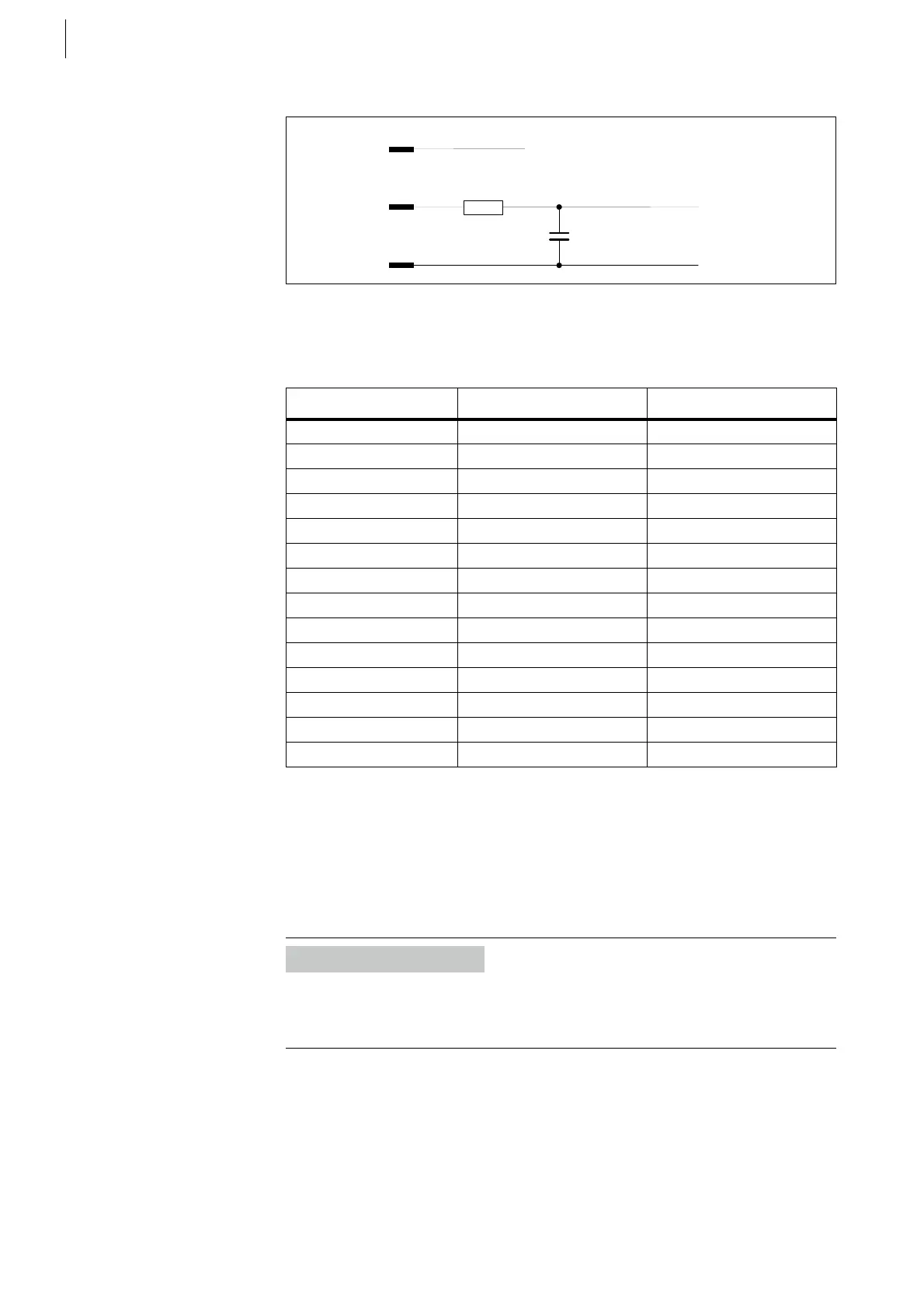

RC-filter inside the housing of X15
For an application in PUMA the parameter block FFS for frequency output of the
PWM is indicated:
*) This parameter field remains empty.
The carrier frequency is defined in the first line (the parameter Quantity remains
empty, a default value of 10 kHz is defaulted). In the second parameterization
line a speed range of 0 - 10000 rpm is assigned a DC from 0.001 to 90 %. The
value 90 is to be varied according to the mains voltage so that 10 V arise at the
exit.
Fig. 55
Quantity (Normname) *) N_demand
F-FEM Num 5 (Example: DAC) 5
Ch No 1 1
Channel Unit rpm
Channel Description Carrier frequency Demand speed
Rate 100 Hz 100 Hz
S.Type PWM PWM
Default Value 10000 0
Marks - don't care - - don't care
-
Cal. Tab. Type Frequency DutyCycle
Points f. Calibration 0 2
1. Raw 0
1. Physical 0.001
2. Raw 10000
2. Physical 90
Tab. 17
Information
This kind of the demand value is suitable only for small claims of the default and
to employ only in a closed control loop because of the bad absolute accuracy.
The resolution on the other hand is very high.
7
R
12 V
8
9
from F-OUT to customer
C
