Barco DP2K-23B - Removal of the Side Cover

10. Removal and installation of the projector covers
10.5 Removal of the side cover
Necessary tools
Flat screwdriver
How to remove

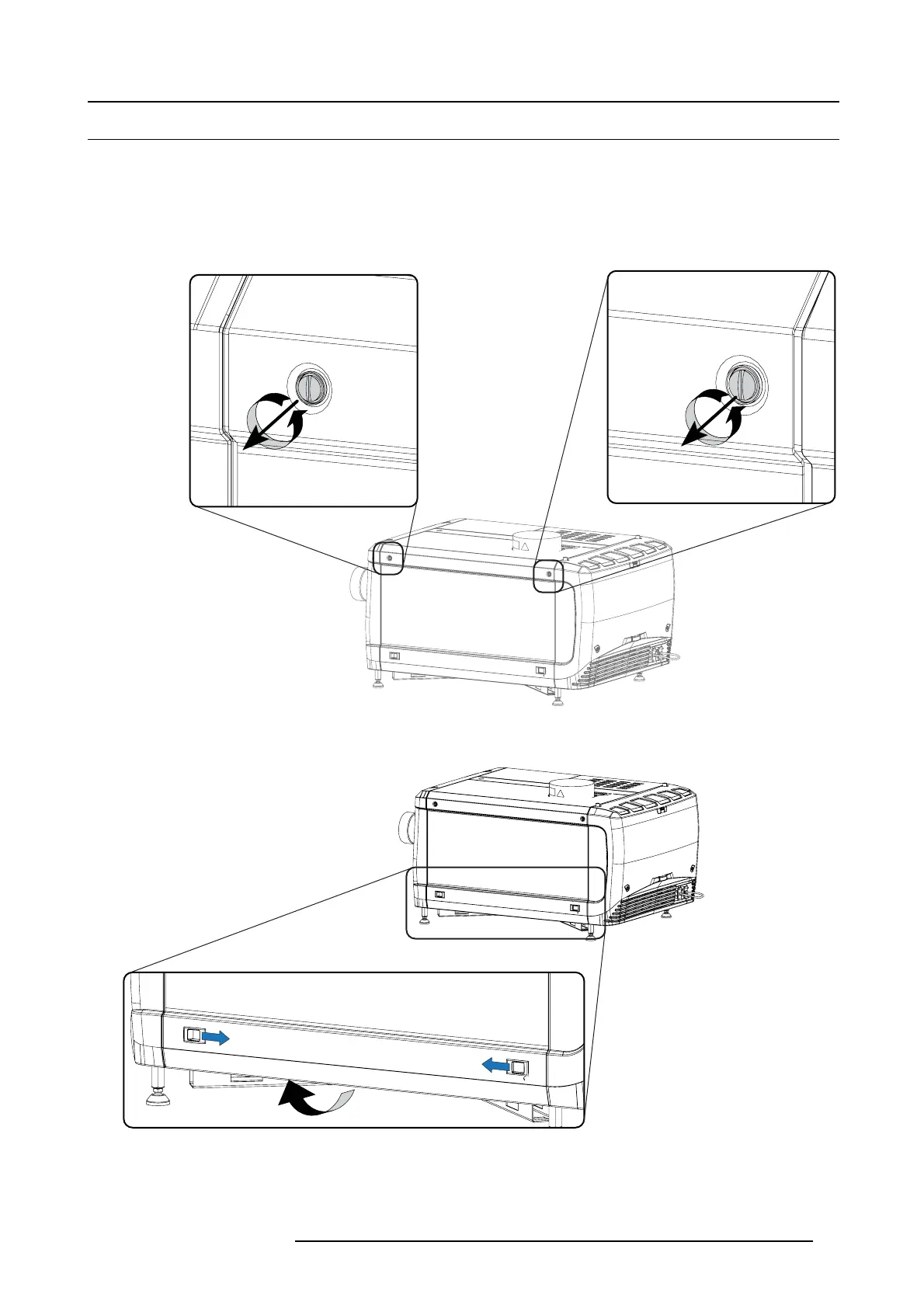

1. R elease both captive screws on top of the side c over.
Image 10-10
Captive screws
2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector.
Image 10-11
Unlock side cover
3. Take off the cover.
R59770495 DP2K-23B 30/04/2010
95
