3. Physical installation
3.3 Access to the power connection
Necessary tools
Flat scre w driver 6 mm
How to access
1. R emove the back cover.
2. Loosen both captive screws (1).
1

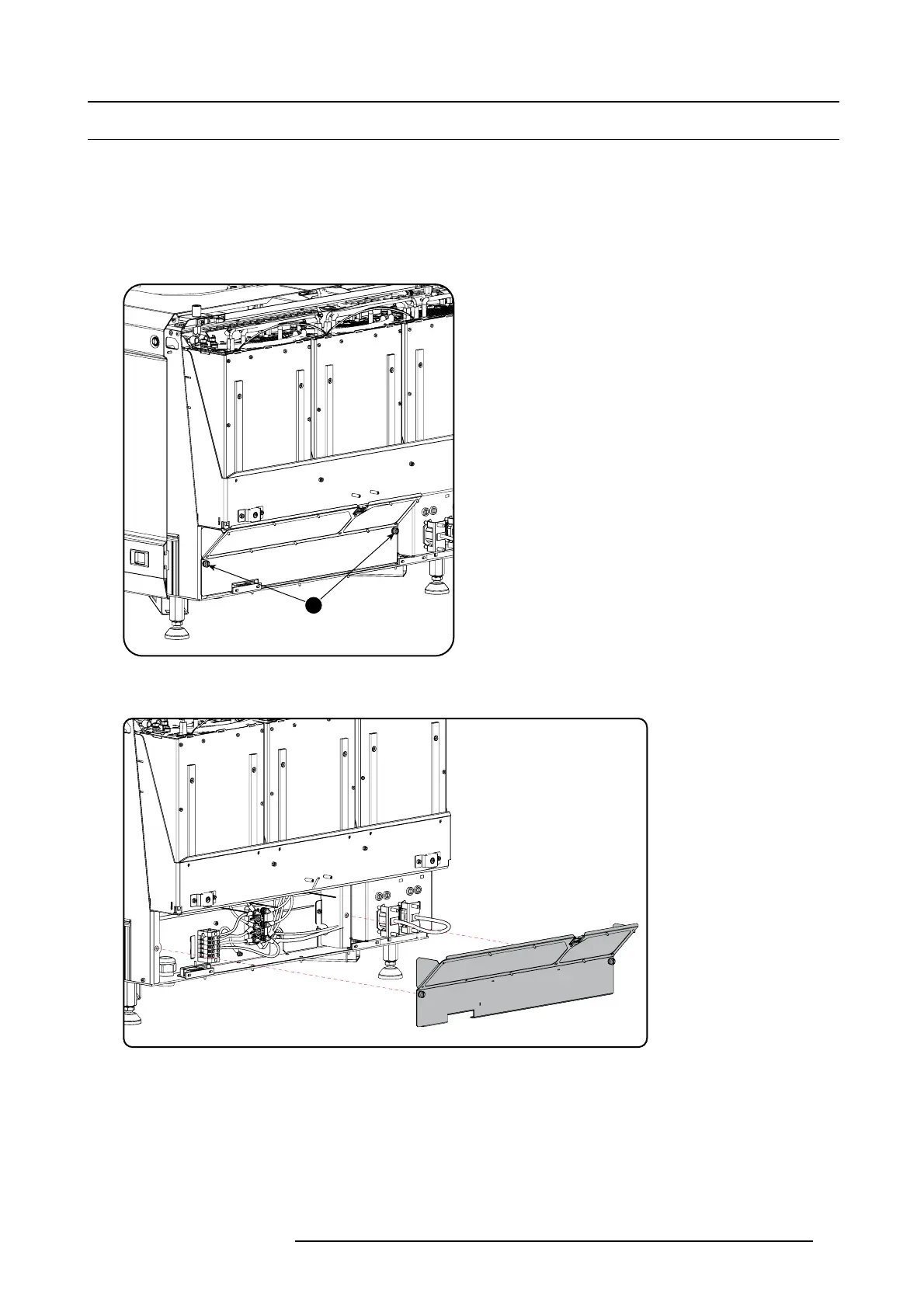

Image 3-7
Power connection cover, captive screws
3. Slide off the power connection cover.
Image 3-8
Te rminal strip accessible
The terminal strip and connection plate is accessible.
R59770495 DP2K-23B 30/04/2010
23
