Barco DP2K-23B Installation Manual

11. Maintenance
11 .6 Cooling liquid refill
WARNING: This procedure may only be performed by qualified technical service personnel.
Order info cooling liquid
B1909086K : bottle of 1 liter cooling liquid.
Necessary parts
Cooling liquid
How to refill
1. R emove the side cover, see "Removal of the s ide c over", page 95.
2. Open the filler cap by turning it anti clockwise.
Max
Min

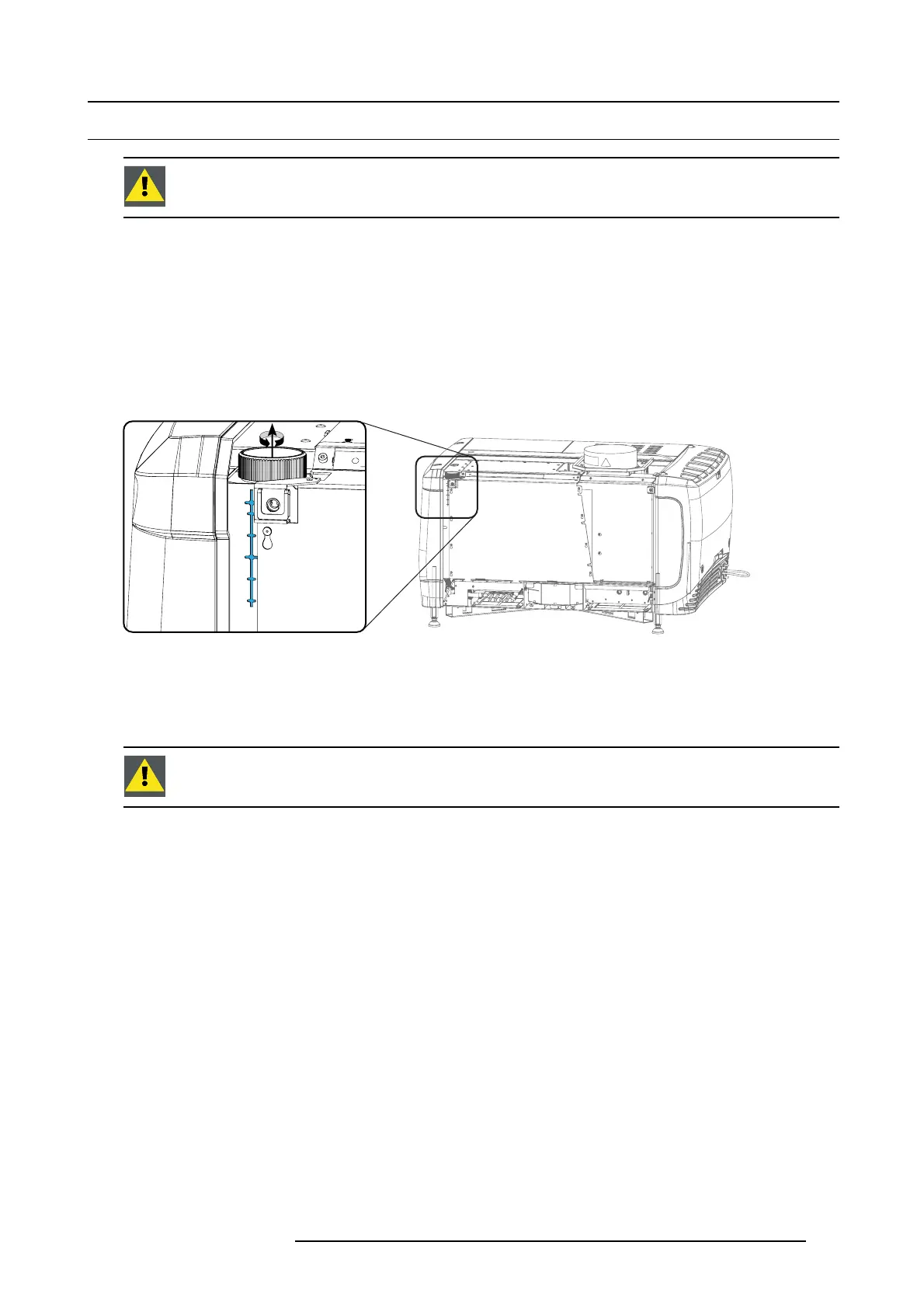

Image 11-6
Cooling liquid refill
3. Fill the reservoir with cooling liquid until the level is equal with the Max indica tion on the reservoir.
4. C lose the reservoir again. Turn the filler cap cloc kwise to close t he reservoir.
5. R einstall t he side cover.
CAUTION: Never fill above M ax level m ark !
R59770495 DP2K-23B 30/04/2010 111

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
