Barco DP2K-23B Installation Manual

6. Input & communication
6.1 Introduction
General
The input & com m unication side of a DP2K-23B projector consists of a button module and 3 separate removable u nits, fan controller
module, Integrated cinema processor (ICP), HDSDI module and a C inema c ontroller m odule.
1
2
3
4
5
6
A
B
C
G
D
F
E

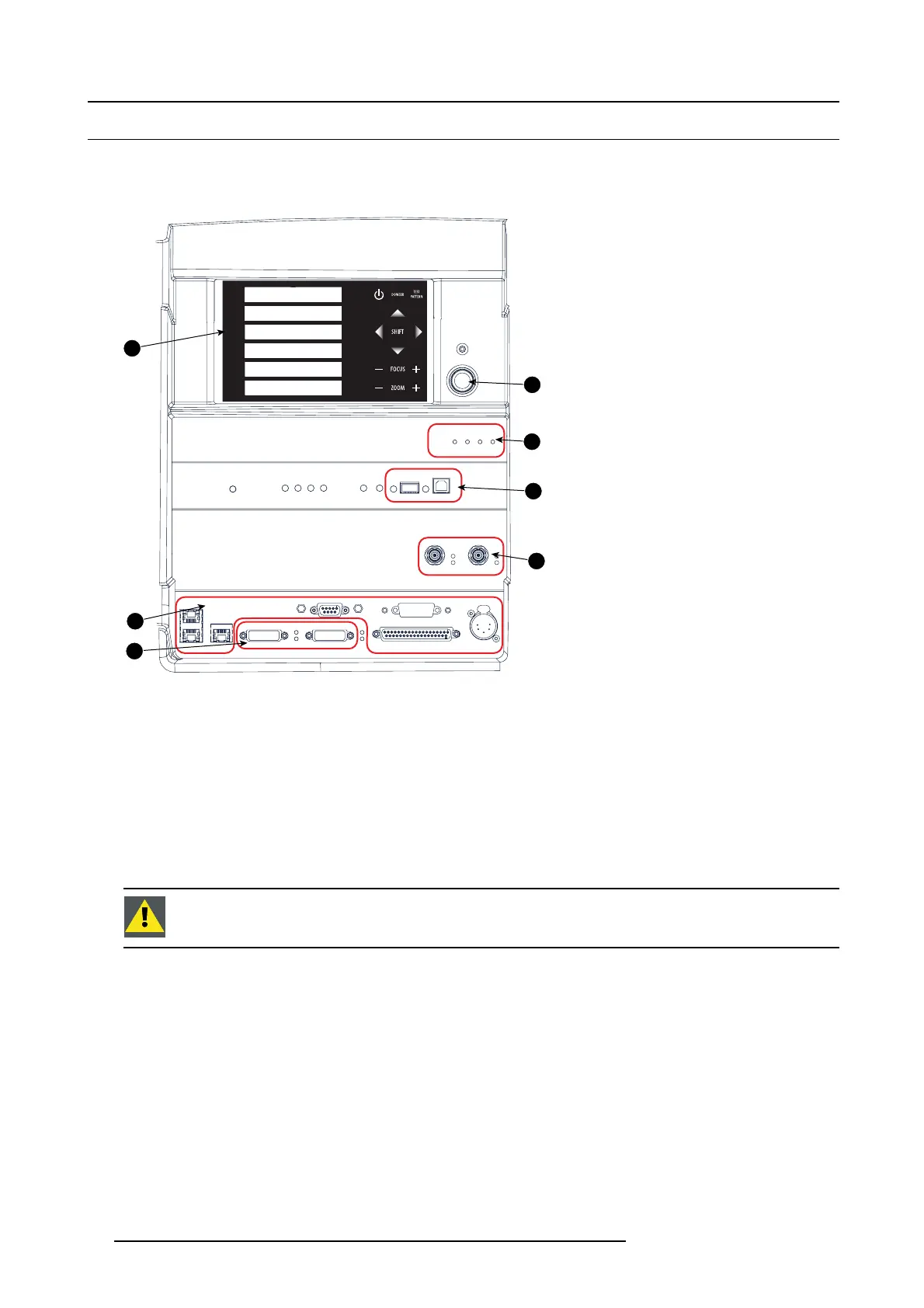

Image 6-1
Input and communication
A
Local keypad (button module)
B
Communication ports
C
DVI input ports
D
Socket for security key
E Fan controller module
F
USB ports (for future ex pansion) and
LED indications for service purpo ses
G SMPTE inputs (HDSDI)
CAUTION: A unit m ay only be removed by qualified service personnel. Removing a u nit w ill result in an
authorization request upon starting.
58 R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
