Barco DP2K-23B Installation Manual

7. Communicator Touch Panel
7.2 Installation of the touch panel interface
Necessary tools
• 17 mm wr ench
• 10 mm wr ench
How to install the touch panel interface

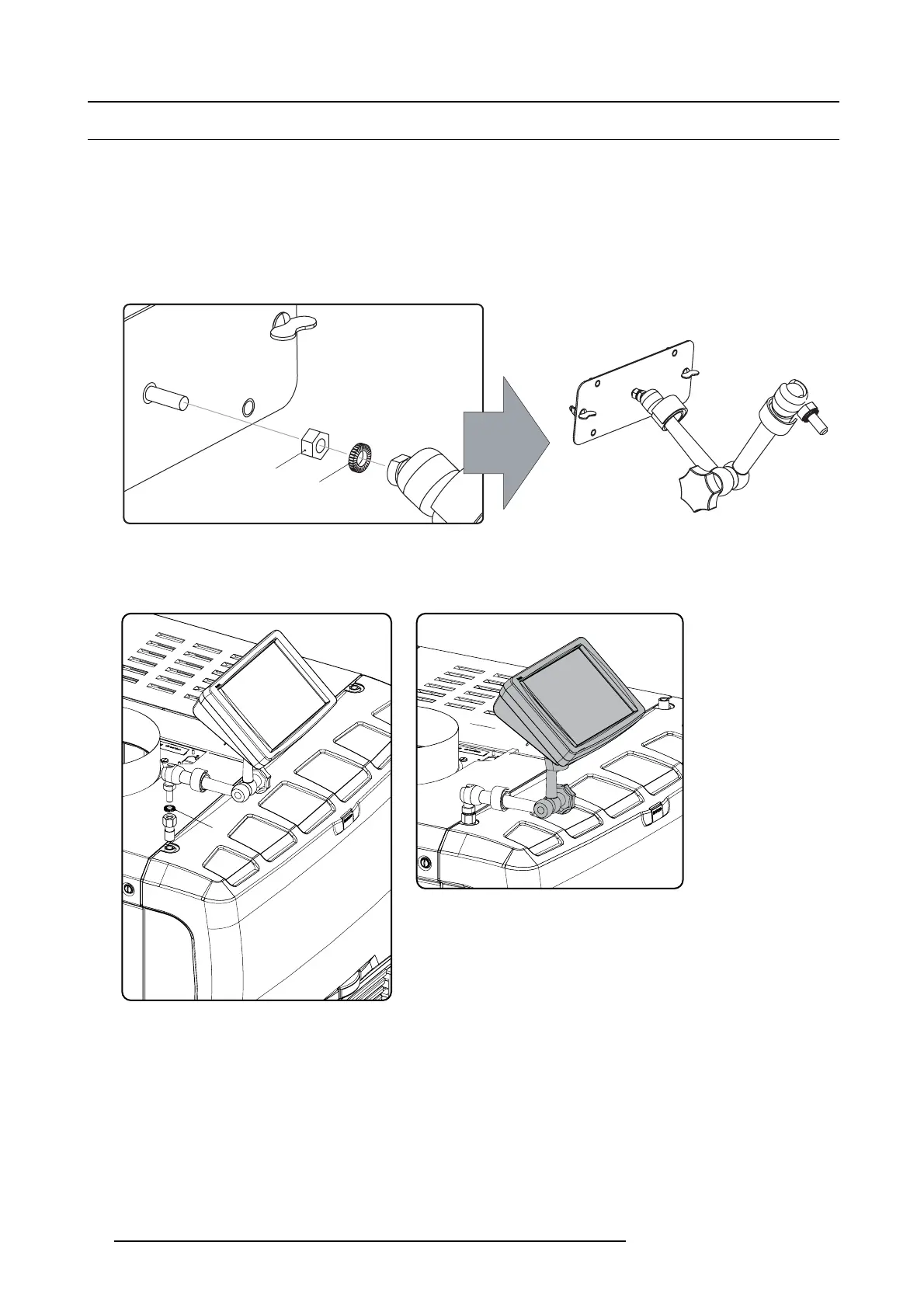

1. Ass emble the mounting plate and the swivel arm together as illustrated. First place the nut (N) upon the rod of the mounting
plate, then add the lock washer (L), then fasten the mounting plate and the swiv el arm together. When the arm i
s mounted, turn
nut (N) against the arm to s ecure the pos ition.
N
L
Image 7-3
Assemble swivel arm
2. Slide a washer (M) over the base of the swivel arm and Insert the base of the sw ivel arm into the mounting hole at the top of the
DP2K-23B projector as illustrated.
M
Image 7-4
Mount touch panel
Image 7-5
Touch panel mounted
3. Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W ) as illustrated.
70
R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
