Barco DP2K-23B Installation Manual

7. Communicator Touch Panel
7.1 Introduction
Communicator Touch Panel for digital ci nema projectors
The Comm unicator Touch P anel is designed for multi-user command and control, the Communicator enables users to learn quickly
and operate efficiently - using an elegant and flexible touch panel interface. The interface’s com mo nality means that operators
can intuitively use any model in the produ ct line, without restriction, and its user-friendly nature translates d irectly into a short and
enjoyable learning curve.

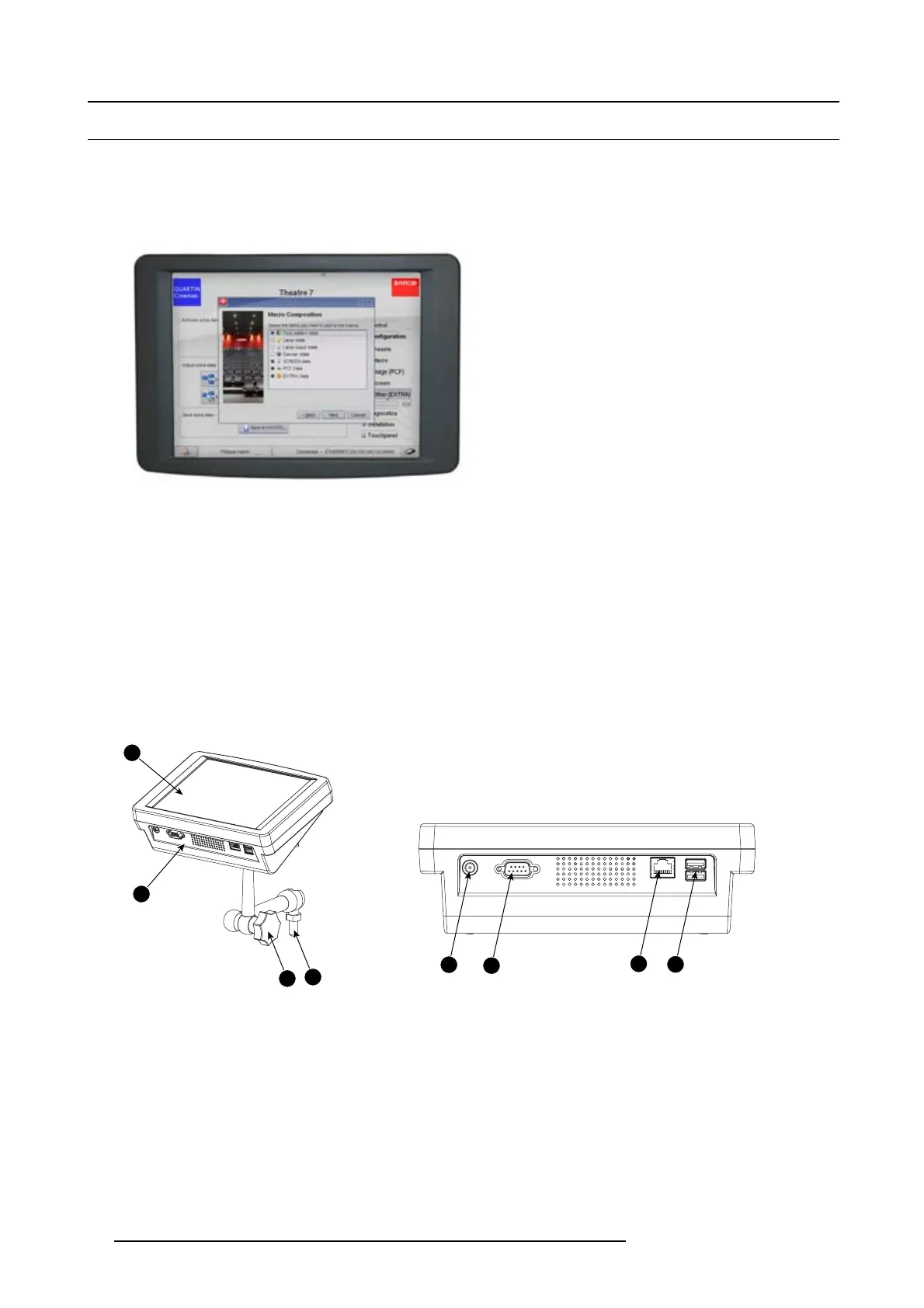

Image 7-1
Flexible touch panel interface
The touch panel interface can be mounted upon a swivel ar m which easily fits on top of the DP2K-23B projector. One c entral locking
mechanism of the swivel arm allows an instant fixation of the touch panel interface in any position.
The touch panel interface can also be installed further aw ay from the DP2K-23B projector. For that you can use a s erial (RS232)
cable up to 10 meter or an E thernet cable up to 50 meter to allow a direc t da ta comm unication between the DP 2K-23B projector and
the Co mmunicator Touch Panel.
The touch pa nel interface can also be connected with a Local Area N etwork (LAN) just like the DP 2K-23B projector. In this case
both devices can communicate with each other as well.
The touch panel interface requires a +12 VDC voltage, 1,5 ampere . The use of a separate +12 VDC adaptor (1,5 ampere m inimum)
is required.
Parts location of the touch panel interface
A
B
C
D
E
F
G
H
Image 7-2
Communicator touch panel
A Touch screen
B Com m unication panel
C Knob to op erate central swivel c lamp
DBaseofswivelarm
E Power input 12 V DC, 1.5A
F RS232 port (sub-D)
G Ethernet port (RJ45)
68
R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
