Barco DP2K-23B Installation Manual

4. Lamp & lamp house
4.2 Removal of the lamp house
WARNING: This procedure may only be performed by qualified technical service personnel.
WARNING: The lamp house is very hot after operation. To avoid burns, let the projector cool down for at least
15 minutes before proceeding to remove the lamp house.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot o r cold states if imp roperly
handled.
Necessary tools
• Nut driver 10 mm
• Flat screw driver
How to remove
1. M ake sure the projector is switched off.
2. R emove the lamp cover.
3. R elease both captive screws at the base of the lamp house.

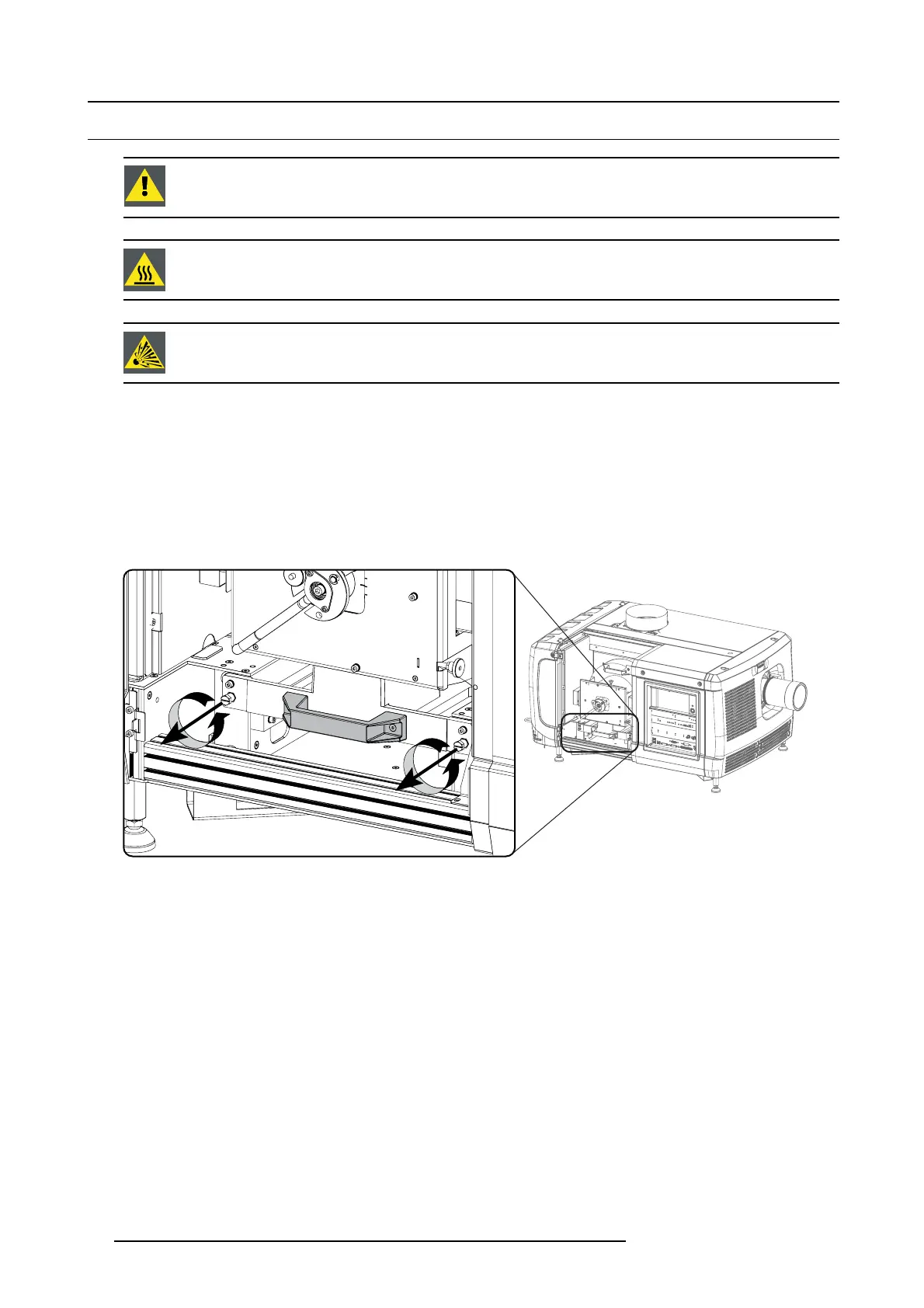

Image 4-4
Loosen lamp house screws
4. R emove the lamp house as follows:
a) G rip the lamp house by the bottom handle and partially slide it out of the lamp compartment
b) G rip the lam p house by both handles and remove it completely from the projec tor.
c) Place the lamp house on a stable support.
Caution: Be aware of the weight of the lamp as sembly. Take the nec essary precautions to av oid personal injury.
30
R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
