Barco DP2K-23B Installation Manual

4. Lamp & lamp house
4.5 Installation of the lamp house
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot o r cold states if imp roperly
handled.
Necessary tools
• 10 mm nut driver
• Flat screw driver
How to install the lamp house
1. Gr ip the lamp house by both handles and place the front of the lamp house on the base plate inside the lamp comp
artment of
the projector, lining up the foot of the lamp house with the slots on the base.

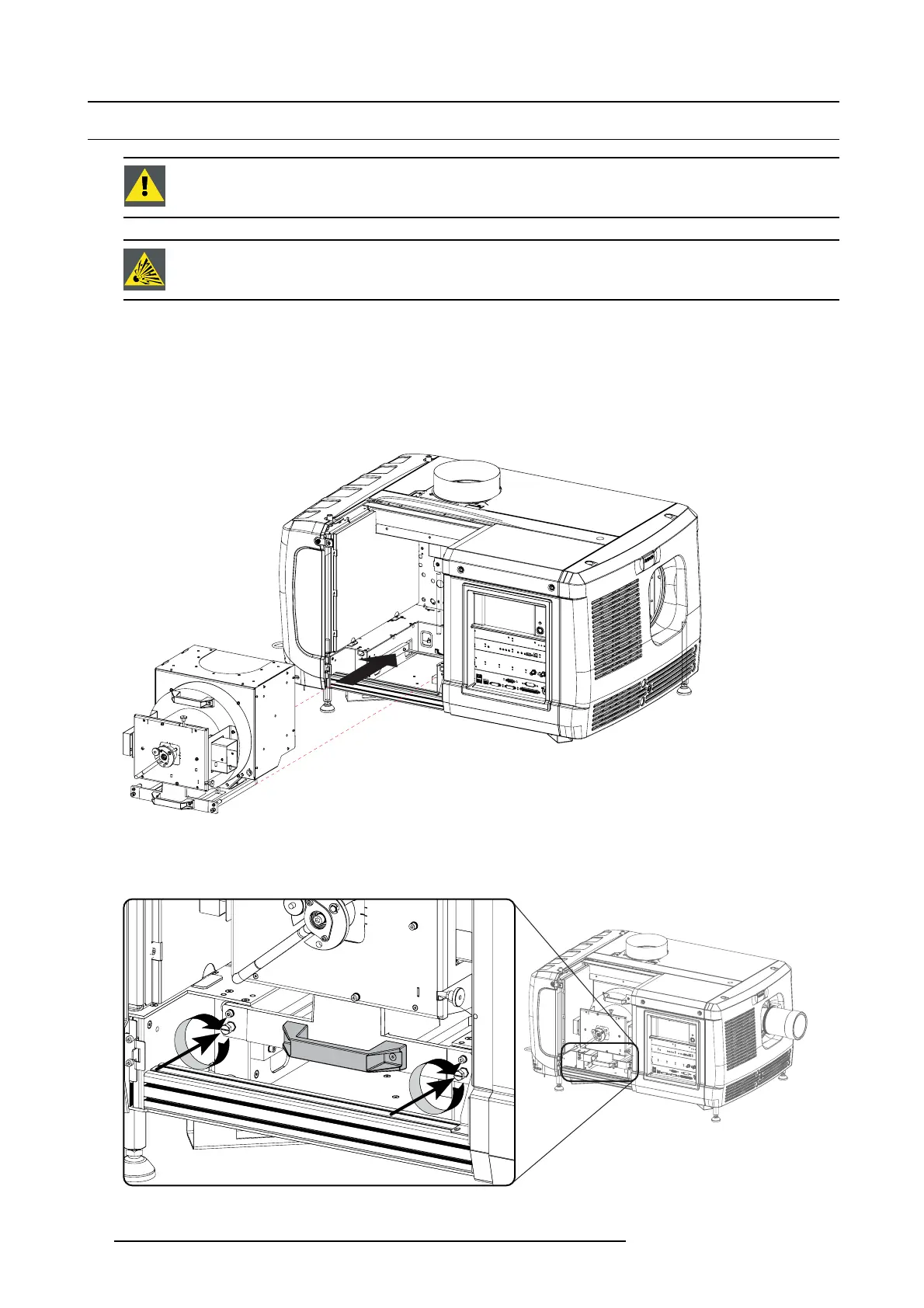

Image 4-22
Mount lamp house
2. Push the lamp fully into the slots.
3. Secure the lamp house by fastening both captive screws at the base of the lamp ho use.
Image 4-23
Secure lamp house
40 R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
