Barco DP2K-23B Installation Manual

12. Convergence
12.1 Open the sealed compartment
This procedure assu me s that the side cover of the projector is already remo ved.
CAUTION: This procedure may only be done by a qualified and trained service technician.
Necessary tools
3 mm A llen wrench
How to open the sealed compartment
1. R emove both h exagon head cap screws (1).
1

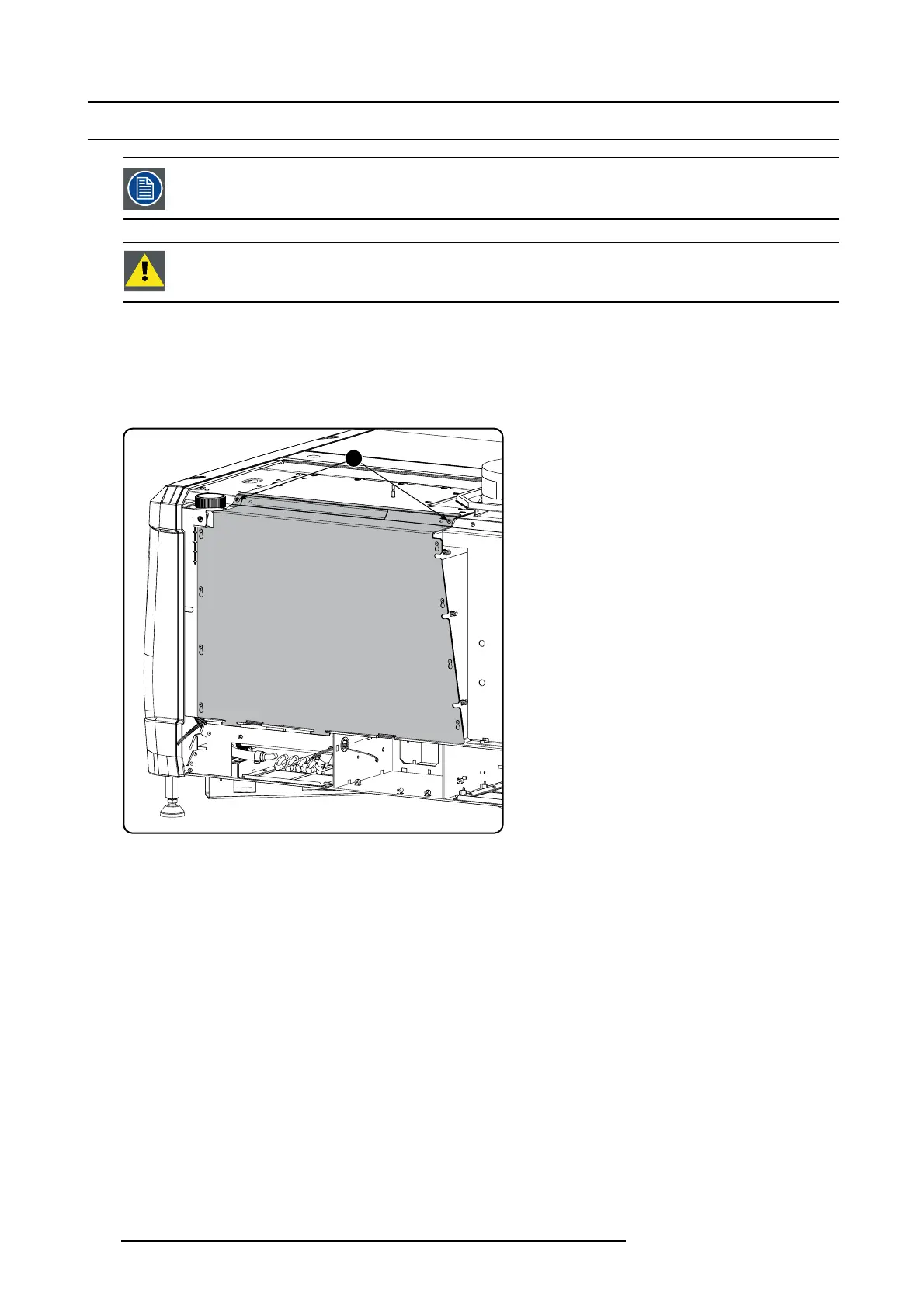

Image 12-1
Sealed cover fixation
2. Lift up the cov er plate slightly using both lower lips (2) and then remove the cover by taking it away from the projector.
114
R59770495 DP2K-23B 30/04/2010
