Barco DP2K-23B Installation Manual

3. Physical installation
3.1 Positioning the DP2K-23B at port window
WARNING: The installation of the DP2K-23B projector requires at least 4 p ersons.
General guide lines
• Use a solid pedestal to put the DP2K-23B projector on. Ensure that the pedestal can handle the weight o
f the projector and
that all feet of the pr ojector ar e captured.

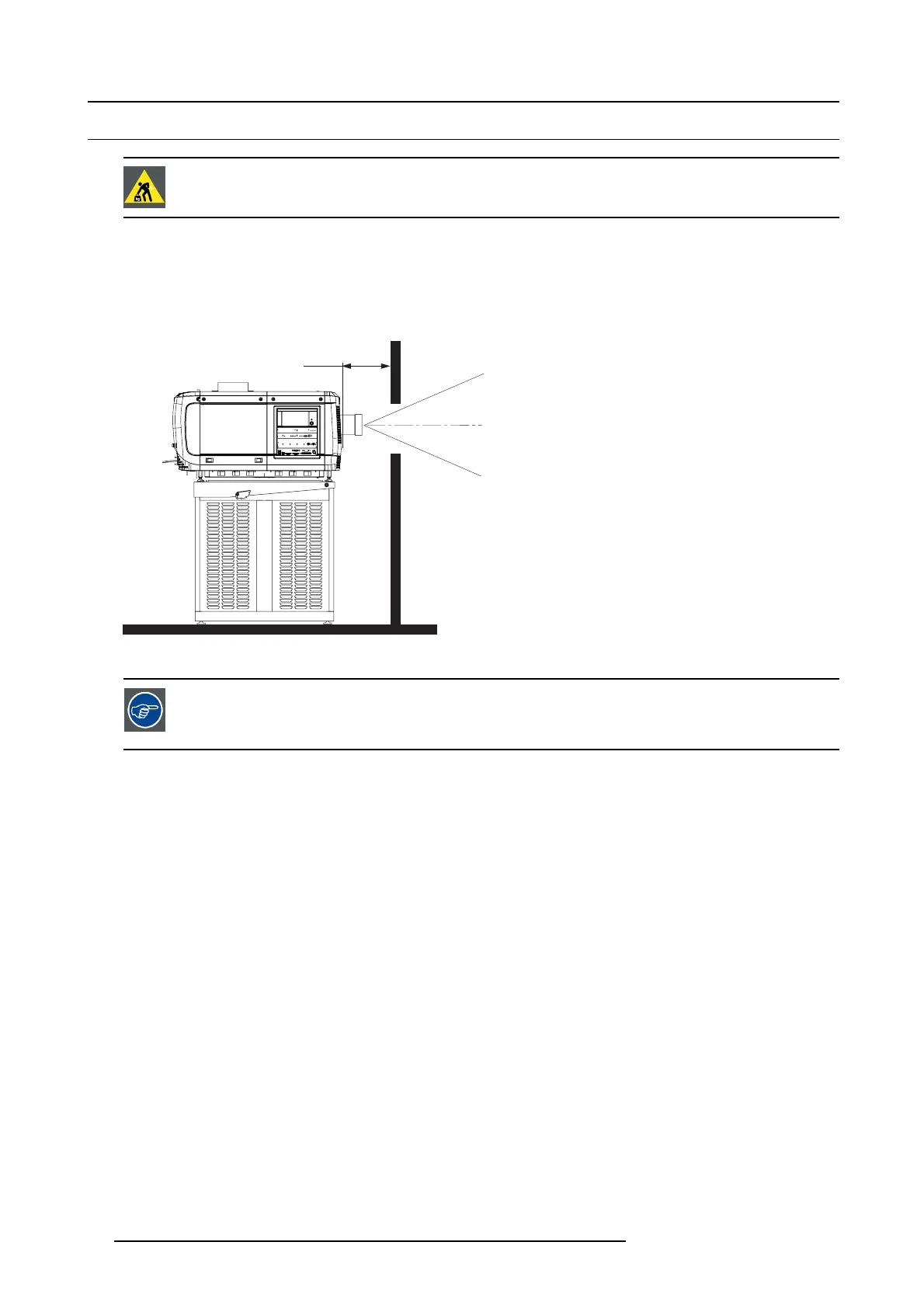

• The pedes tal should be placed in front of the port w indow wall in a manner that the projector front cover is at a minim um distance
of 20 centimeters from the port window.
20 cm
Image 3-1
Positioning at port window
Barco offers a pedestal for the DP2K -23B digital p rojector. This universal pedestal allows a solid and easy
setup of the projector. The un iversal ped estal has a separate co mp artment t o install the UPS unit (if available)
for the DP2K-23B d igital projector. Futhermo re, the u niversal pedestal co ntains a standard 19” rack to build
in the projector peripherals like alternative co ntent switchers (e.g. ACS-2 048).
Necessary tools
• 14 mm wr ench
• 17 mm wr ench
Projector centering
1. If the projector is standalone in front of the port window, center the projector with the theatre screen (see ref A image 3-2).
2. If a film pro jector is already present (proj
ector w ill be off-center), try to optimize aim (see ref B imag e 3-2).
Note: Unlike film projectors, it is best to keep the projector lens surface as parallel to the screen as possible, even if it is
significantly above the screen center.
The off-center position slightly increases s ide keystone, but will m inimize horizontal lens offset required.
18
R59770495 DP2K-23B 30/04/2010

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
