Barco DP2K-23B Installation Manual

3. Physical installation
3.2 Installation of the exhaust system
WARNING: THE USE OF AN EXHAUST SYSTEM IS MANDATORY !
WARNING: Never lo ok into the exhaust output. High luminance and UV radiation could result in dam age to
the eye. The installation of an exhaust syst em is mandatory before operating the pro jector.
CAUTION: T he exh aust system must be capable of remo ving minimum 10 m
3
/min (350 CFM ), measured at the
projector’s exhaust opening.
About Exhaust
The exhaust stack of the projector head is designed to fit a 201 mm (7.91 inch) diameter duct. This s ize must be used throughout
the entire system and installed to eliminate any possibility of downdraft or rain dripping into the lamp house.
The exhaust fan must be capab le of removing m inimum 10 m
3
/min (350 CFM), meas ured at the projector’s exhaust opening.
A built-in v ane switch detects if the airflow in the exhaust opening is high enough. When something goes wrong one of the following
error co des can be displayed : 6090 or 6091 (insufficient air flow in exhaust of projector check exhaust fan and/or exhaust air outlet
system ).
Check the functioning of this vane switch regularly. Replace if necessary.

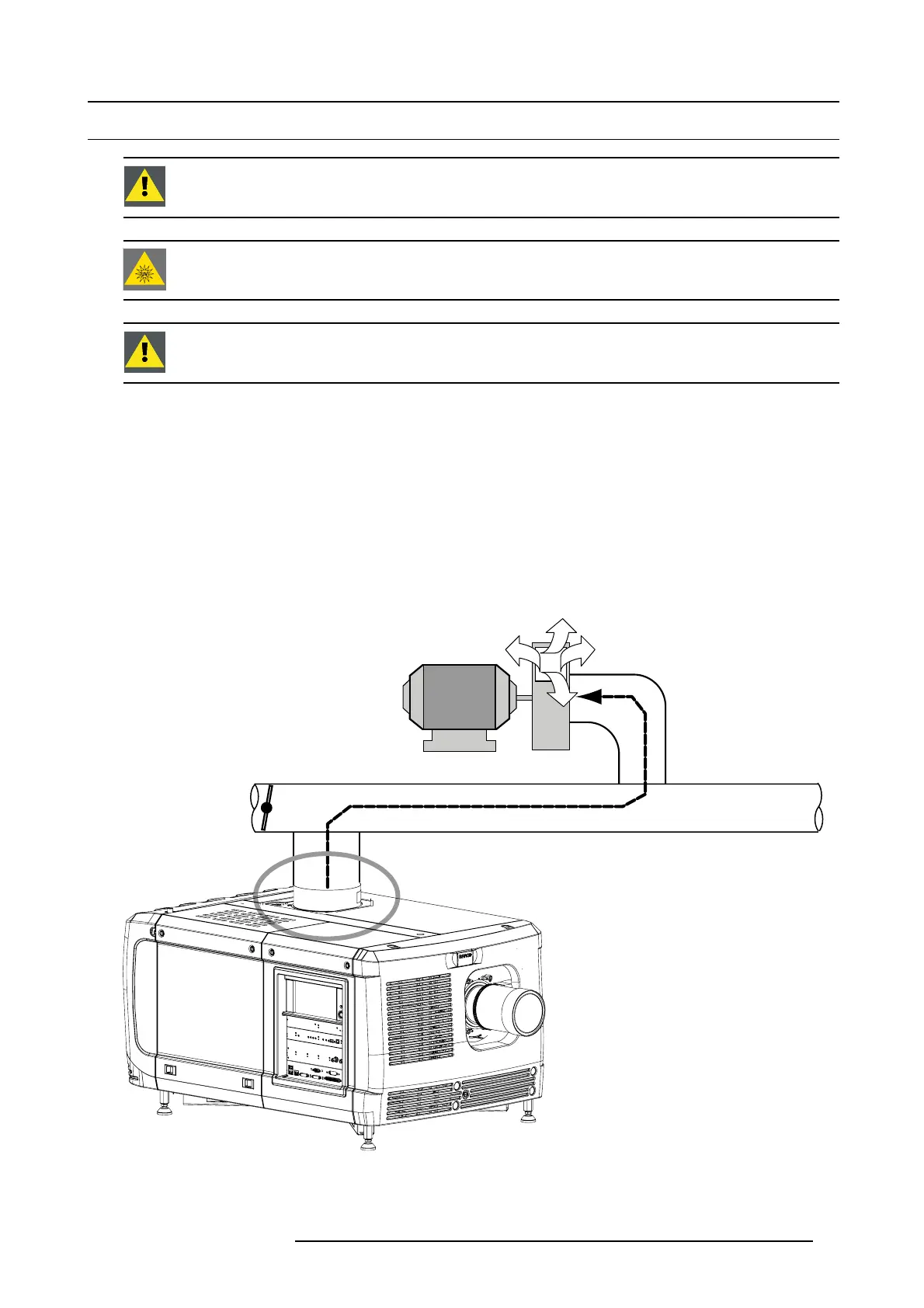

How to install the Exhaust stack
See illustration below:
Image 3-5
Exhaust system
R59770495 DP2K-23B 30/04/2010 21

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
