Barco DP2K-23B - Page 20

2. General
1
2

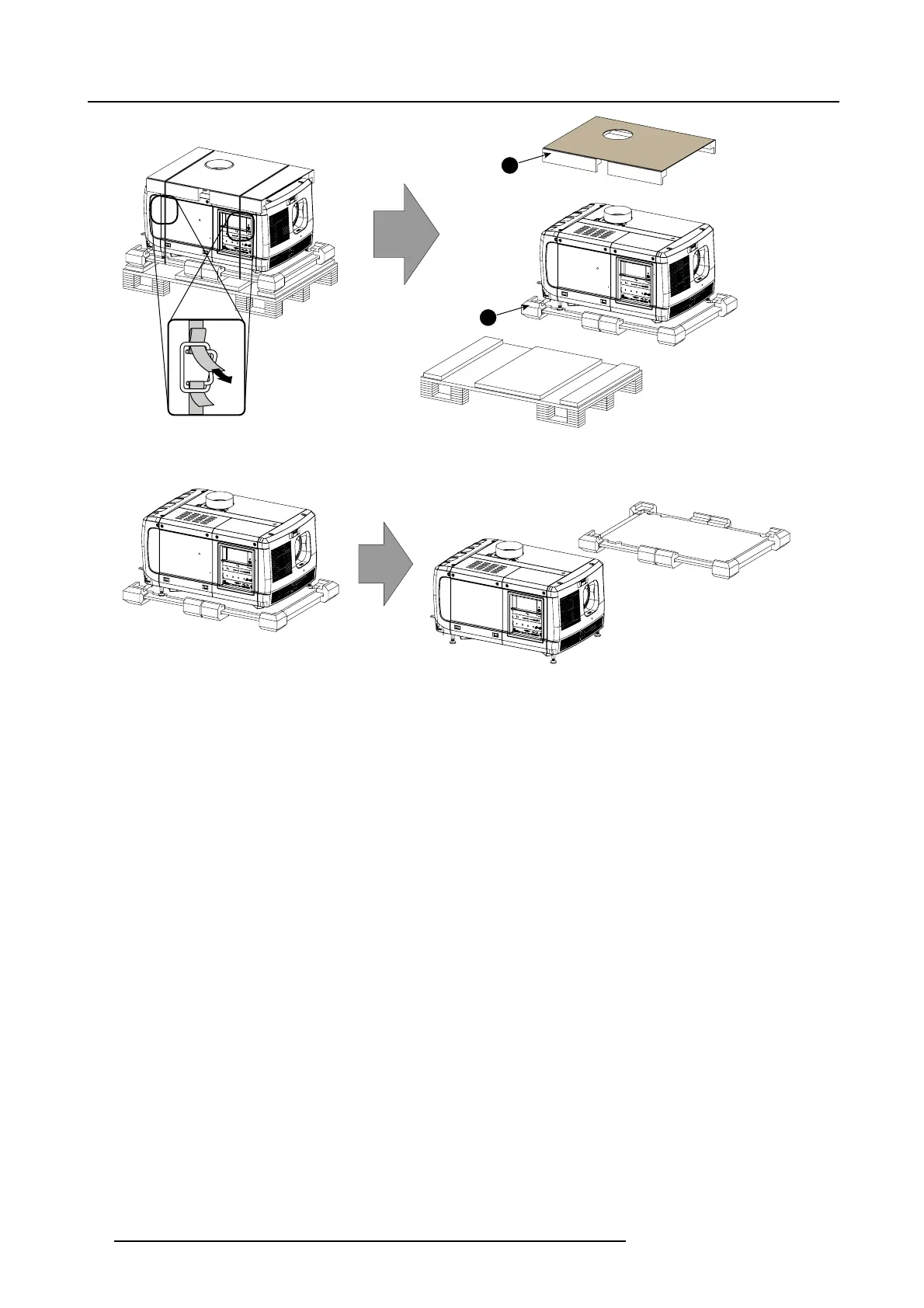

Image 2-4
Remove wooden pallet
5. Take the projector from the wooden boa rd by gripping the bottom of the pr ojector an d plac e t he projector on the pedestal.
Image 2-5
Remove projector
14 R59770495 DP2K-23B 30/04/2010
