1. Safety
As described in "High Brightness precautions: Hazard Distance (HD)", page 8 , it is mandatory to create a restricted zone within
the beam areas closer than any NOHD. In th e enc losed projection area the combination of two restricted zones are relevant: T he
restricted zone of the projected beam toward the screen; taking into account 1 meter Separation W idth (SW ) from the beam onward.
Combined with the restricted zone related to the rear reflection from the s creen (HD
reflection
); also taking into account a 1 meter lateral
separation.
The HD
reflection
distance equals 25% of the difference between the determined HD distance a nd the projection distance to the rear
projection screen. To determine the HD distance for the used lens a nd projector mod el see graphs in chapter "HD in function of the
lens T hrow Ratio (TR)", page 11.
HD
reflection
= 25% (HD – PD)
The light emitted from the s creen within the observation shall never exc eed the RG 2 exposure limit, determined at 10 c m. The
HD
diffuse
can b e neglected if the m easured light at the sc reen surface is below 5000 cd/m² or 15000 LUX .
1.4.4 HD in function of the lens Throw Ratio (TR)
TR (T hrow Ratio)
The ratio of the distance to the screen (throw) to the screen width.
HD versus Throw Ratio
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
0.4 0.8 1.2 1.6 2.0 2.3 2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5 5.9 6.3 6.7 7.1 7.5 7.9 8.3 8.7 9.1 9.5 9.9
Hazard distance [m]
Throw Rao
F80-Q7, F80-4K7 F80-Ultra, F80-Q9, F80-4K9

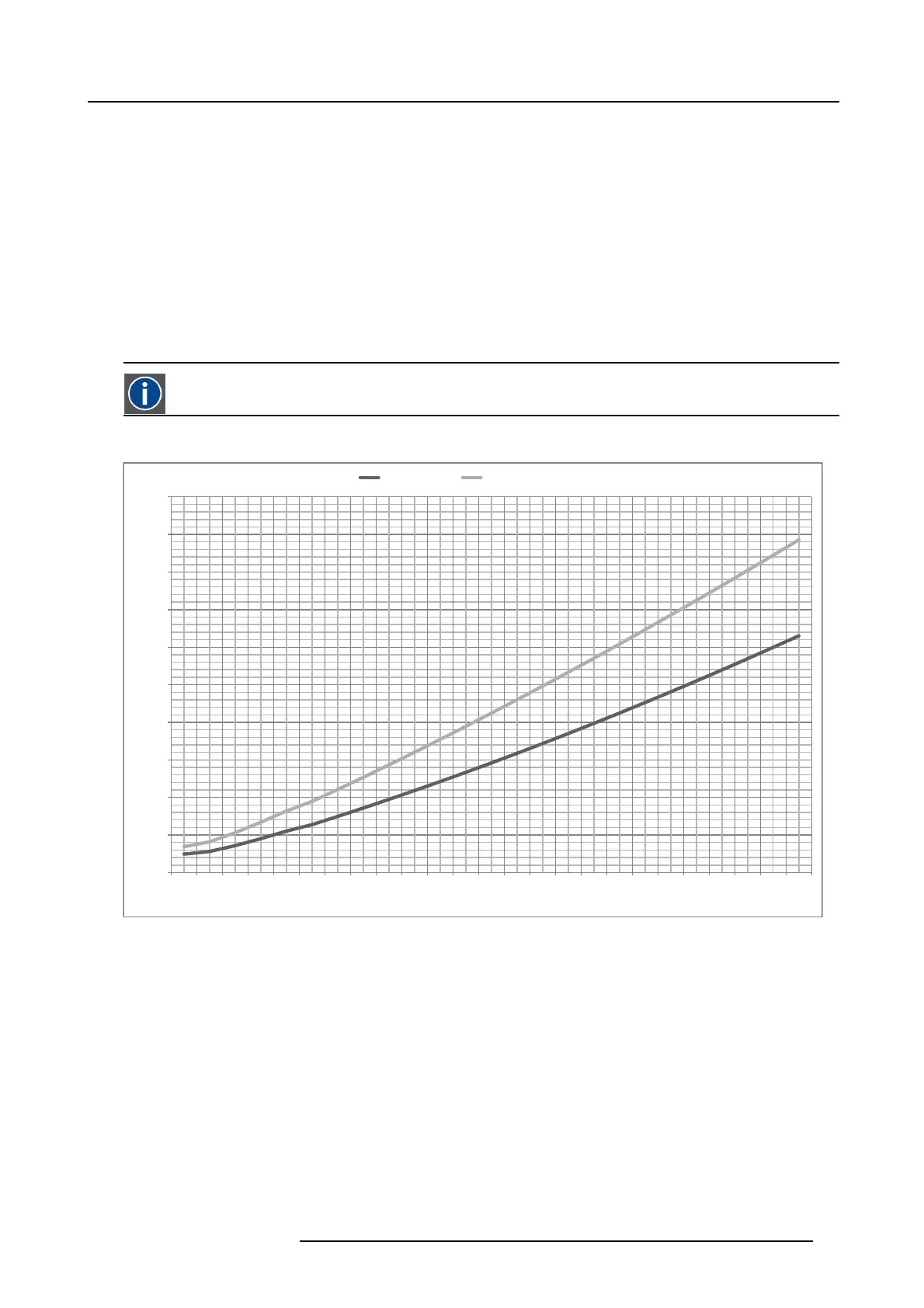

Image 1-4
Graph shows Hazard Distance in meters versus Throw ratio of the lens
R5906852 F80 SERIES 21/09/2017
11

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
