Barco F80-Q7 User Manual

2. Remote Control Unit
2. REMOTE CONTROL UNIT
2.1 Remote control, Battery installation
Where to find the batteries for the remote control ?
The batteries are not placed in the remote control unit to avoid control operation in its package, r
esulting in a shorter battery life
time. At delivery the batteries can be found in a separated bag attached to the rem ote control unit. Before using your remote control,
install the batteries first.
How to install

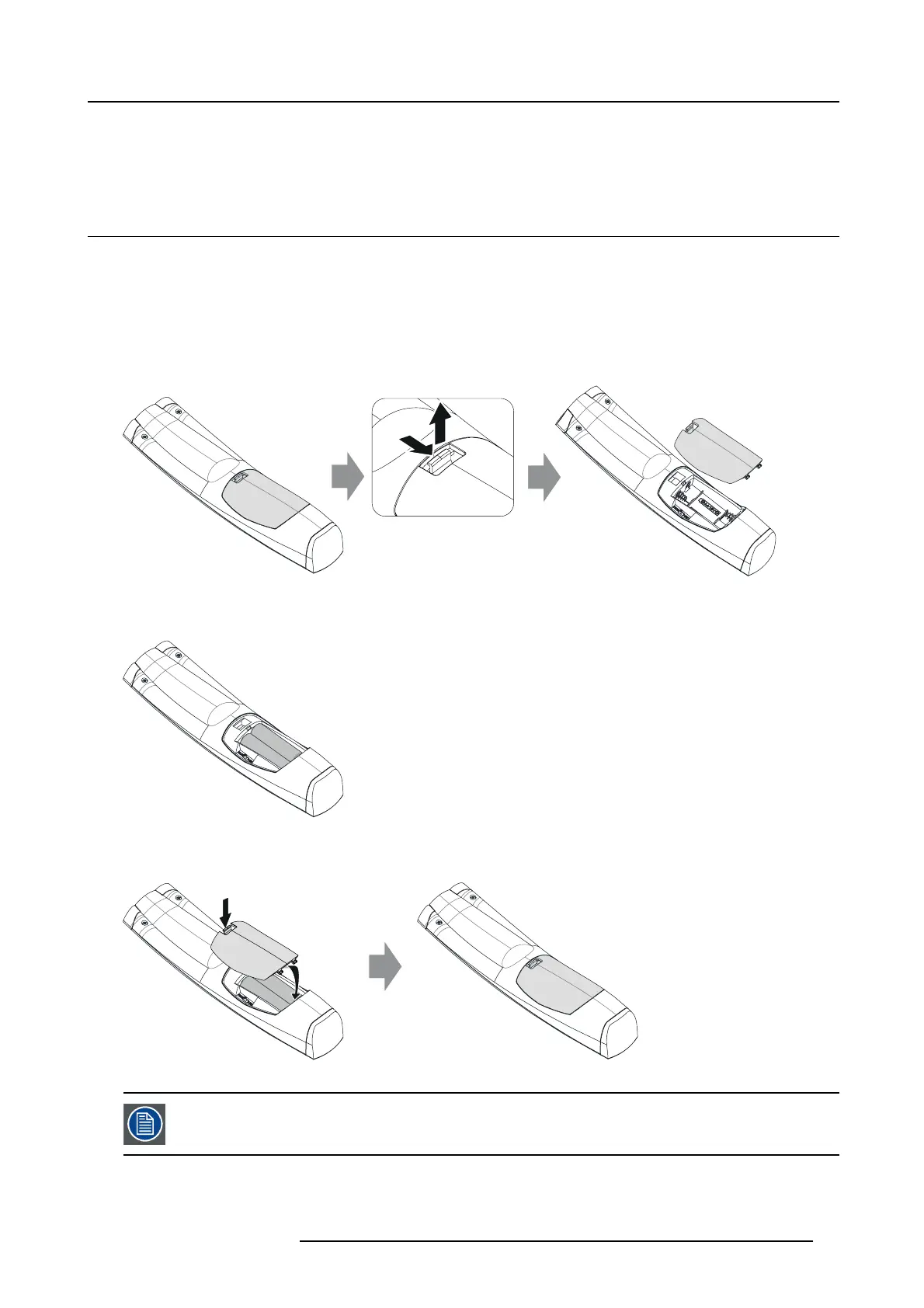

1. Push the battery cover tab with the fingernail a little backwards (1) and pull, at the same time, the c over upwards (2).
1
2
Image 2-1
2. Insert the two AA size batteries, making sure the polarities match the + and - marks ins ide the battery com partment.
Tip: Use alkaline batteries for optimum r ange and life time.
+
-
-
+
Image 2-2
3. Insert (1) both lower tabs of the battery cover in the gaps at the b ottom of the remote control, and press (2) the cover until it clicks
in place.
+
-
-
+
1
2
Image 2-3
When replacing batteries, the b roadcast address of the RCU will be reset to its default value ’0’.
R5906852 F80 SERIES 21/09/2017 13

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
