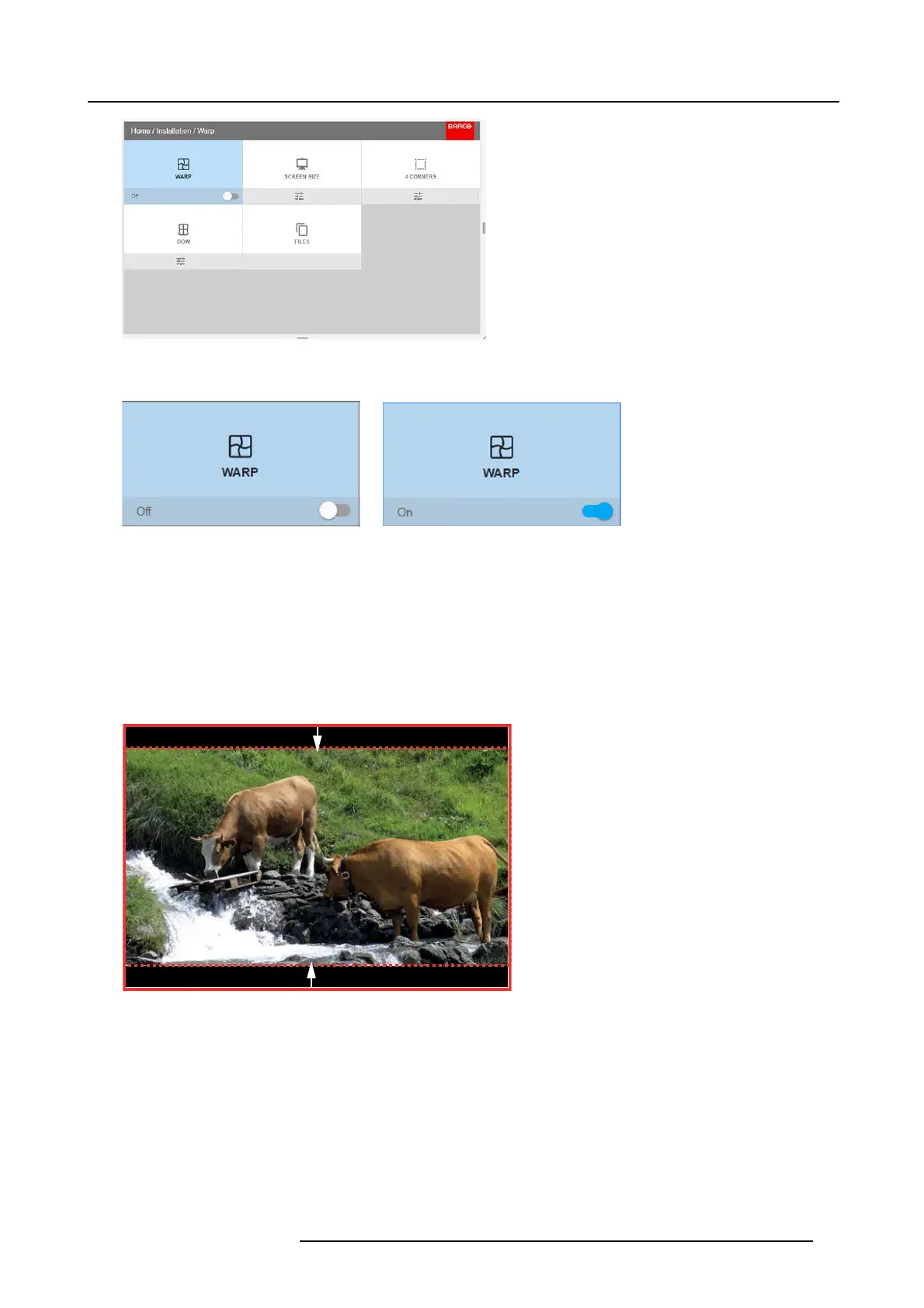

8. GUI Installation
Image 8-5
2. In the Warp m enu, click Warp to toggle between On and Off.
Image 8-6
Image 8-7
8.3.3 Warping Screen Size
About (Wa rp) Screen Size adjustment
If the us ed source aspect ratio is d ifferent than the pr ojector aspect ratio, e.g. source is 16:9 and projector is 16:10, then black bars
will be projected. In the example case a black bar on top and bottom of the image will be projected. T he warp area contains not
only the image information but also the black bars . If we want to position e.g. the active left top corner exactly on the screen u sing
4 corner warp, then it is very hard t o do t hat as we are moving the black left top corner and we do not have control over the e xact
position of image left top corner. By moving the outline of the warp screen size to the active ima ge information, the corner points of
the warp area are now exac tly o n the corner points of the active image information and makes warping much easier.
Image 8-8
Warp outline example
How t o adjust the image?
1. In the main me nu, select Installation Warp Screen Size.
R5906852 F80 SERIES 21/09/2017
45

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Barco F80-Q7 and is the answer not in the manual?

Barco F80-Q7 Specifications

General IconGeneral
PlacementDesktop
Product typeLarge venue projector
Product colorBlack, Silver
Market positioningBusiness
Heat dissipation2900 BTU/h
Native aspect ratio16:10
Projection distance- m
Projection technologyDLP
Contrast ratio (dynamic)10000:1
Contrast ratio (typical)1200:1
Screen size compatibility- \
Projector native resolutionWQXGA (2560x1600)
Zoom capabilityYes
Focal length range- mm
Light source typeLaser
Service life of light source40000 h
Analog signal format system-
Serial interface typeRS-232
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100 Mbit/s
Power sourceAC
AC input voltage100-240 V
AC input frequency50-60 Hz
Power consumption (max)850 W
Power consumption (standby)0.5 W
Power consumption (typical)700 W
Noise level35 dB
CertificationCE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude0 - 3000 m
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)10 - 40 °C
Storage relative humidity (H-H)20 - 90 %
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Depth680 mm
Width480 mm
Height227 mm
Weight25500 g
