5. Graphic User Interface (GUI)
5. GRAPHIC USER INTERFACE (GUI)
Overview
•Overview
• Navigation
• Test Patterns
5.1 Overview

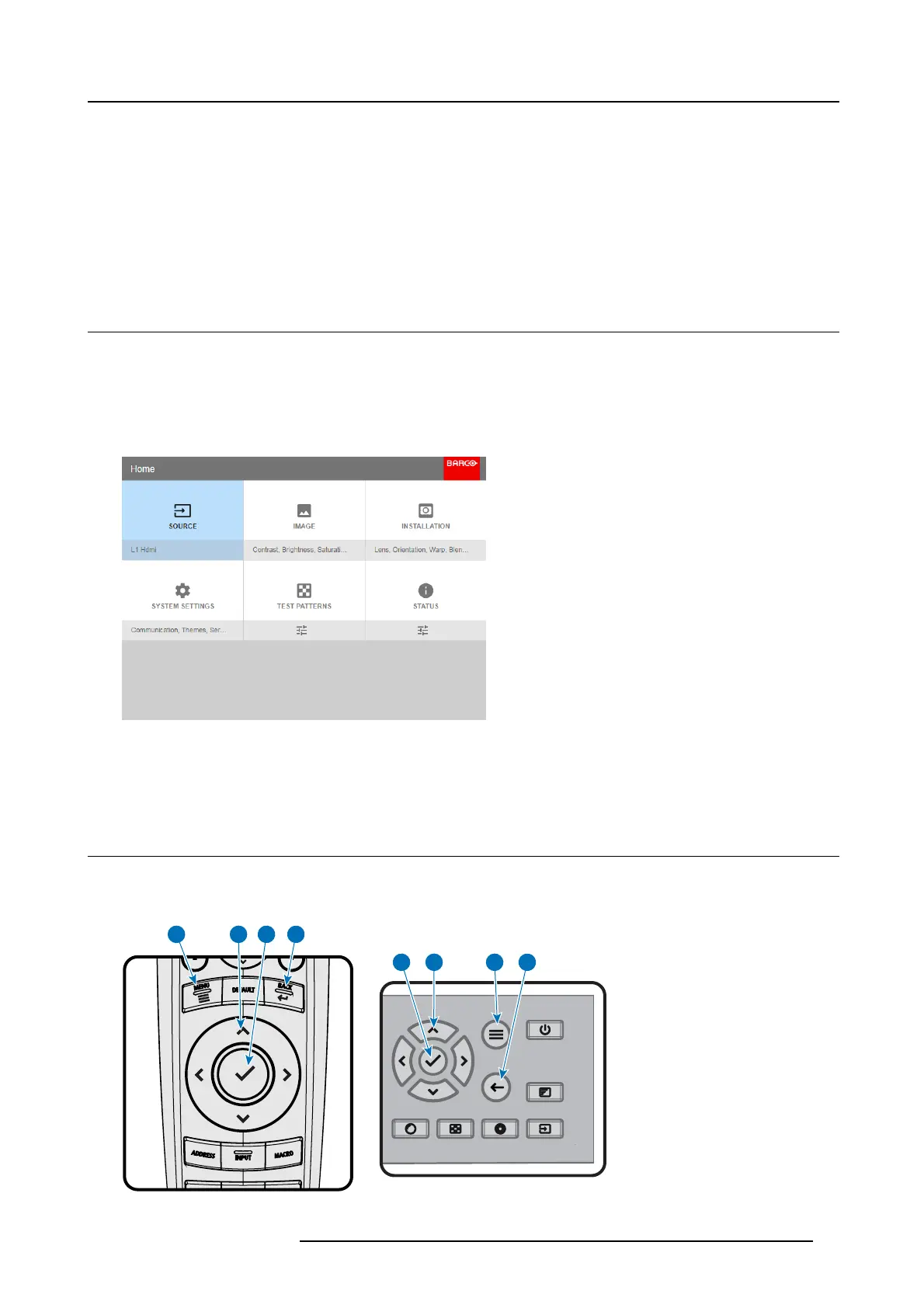

GUI - Main Menu overview
The projector on screen display (OSD) is the primary user interface (UI). From here, you can review and adjust all projector and
display settings.
The OSD interface uses tabs to display the main men u. Each main menu contains s ubmenus .
The OS D can be disabled by pressing the OSD on/off button.
Image 5-1
Home menu
The projector’s software platform uses access levels what each user can do. A standard use r has access to all projector functionality.
Acertified service technician has also access to the service menu. This menu is p assword protected.
5.2 Navigation
Navigation via the RCU or local keypad
Navigating the OSD can be done using the r emote control or the local keypad.
1 4
4
2 3
3 2 1
Image 5-2
R5906852 F80 SERIES 21/09/2017 33

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
