Barco F80-Q7 User Manual

3. Input & Communication
3.5.2 LAN/Ethernet
Specifi ca tions
Param eter Value
Ethernet connector 1 RJ45 Connec tor for projector c ontrol (not content)
Protocols DHCP, TCP/IP, UDP/P
Speed 10/100 Mbit/1000Mbit
3.5.3 USB-A port
Specifi ca tions
Parameter Value
USB connector Type A
Function Firmware upgrade using USB sticks
Power Power 5V, max 1,5A (out)
Standard USB 2.0

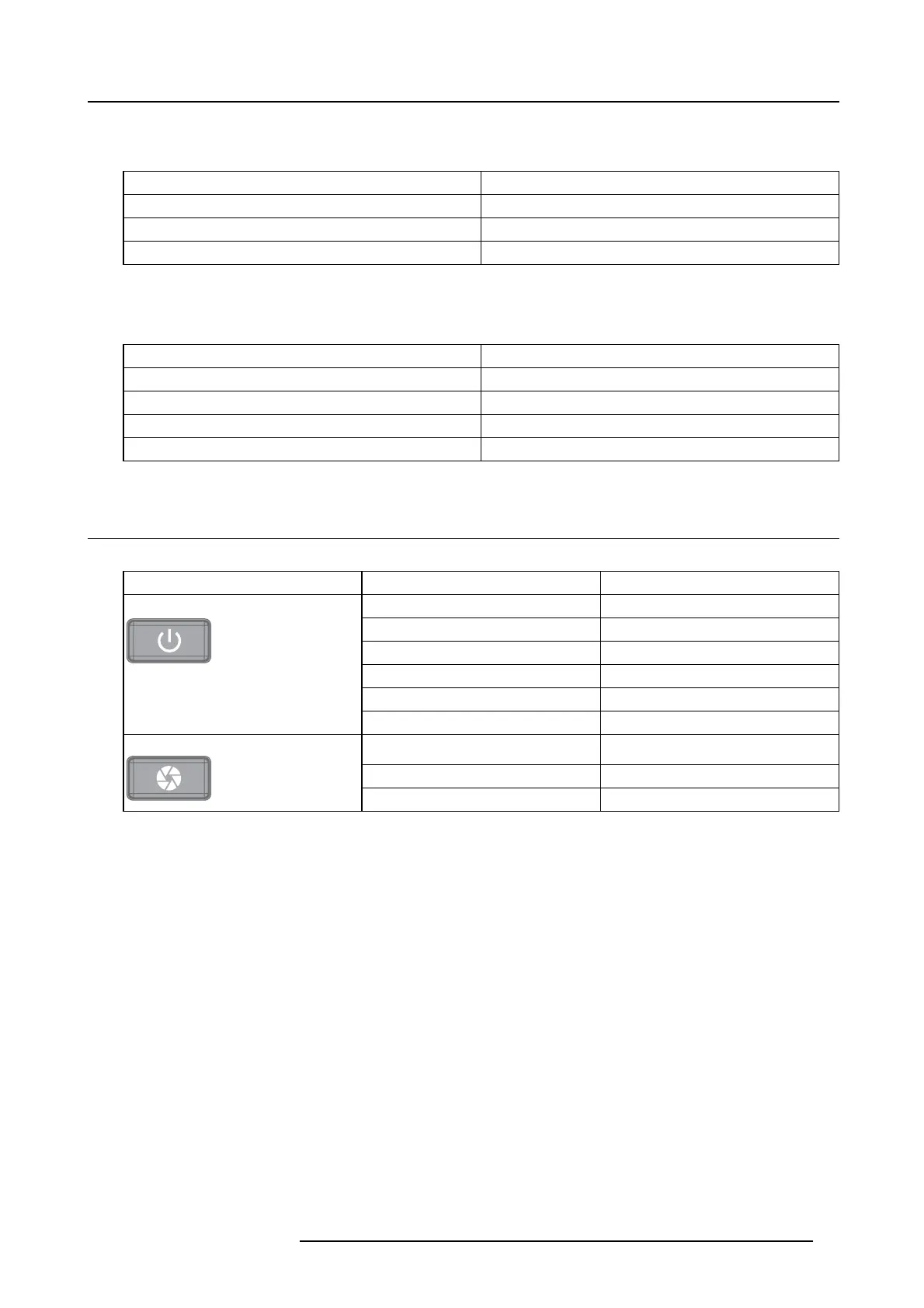

3.6 LED and Button indication chart
Button Backlight Status
Button
Color status
Description
Blinking WHITE (slow) Projector starts up (booting)
Blinking WHITE (fast)
Firmware upgrade
Solid W HIT E Projector is in Standby mode
Blinking B LU E
Projector goes to ON mod e
Solid BLUE Projector is ON
Standby button
Blinking RED Error condition
Off (no color) Projector is O FF, starts up, or is in Standby
mode.
Solid W HIT E Projector is O N, s hutter is ope n
Shutter button
Solid RED Projector is ON, shutter is closed
LED Status
The LED status is located on the top side of t
he projector, near the IR receiver.
During normal operation the LED is unlit. In the event of a critical error or high temperature, the LED will display red.
By critic al error, the projector c annot be r estarted until the projector is disconnected from the power supply and then reconnected
again. If the reason for the error persist, the projector will again go to critical er ror status.
By high temperature, the projector will restart when it has cooled down, and temperatures are back within the normal operating
limitations.
R5906852 F80 SERIES 21/09/2017
21

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
