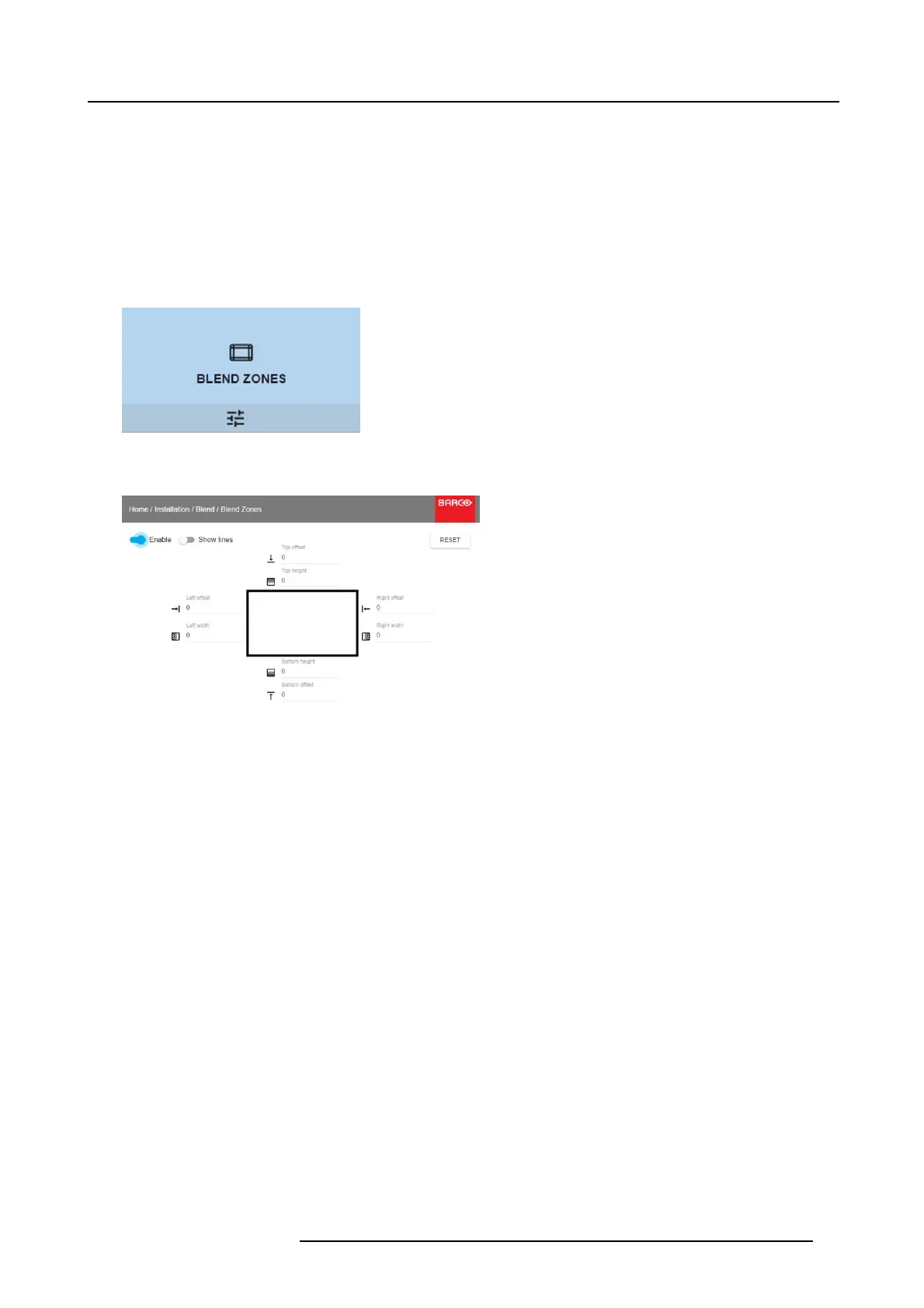

8. GUI Installation
8.4.1 Blend Zones
About offset and blending width or height
Offset is used to clip the image. The larger the offset value, the m ore the image is masked (by black bar) at the corresponding side.
E.g. Top offset of 100 will blank the top 100 lines.
Height or width is used to create a blending zone with a sm ooth brightness drop o ff. This is used to compensate for the double
brightness in overlap areas. The value is the size of the blended area in pixels.
How t o adjust blend zones?
1. In the main men u, select Installation Blend Blend Z ones.
Image 8-23
Blend m enu, Zones
The Blend zones menu is displayed
Image 8-24
Blend Zone menu
2. To e nable blending, put the switch to the right. The color of the switch becom es blue when activated.
3. To show blending lines on the screen, put the switch before Show lines to the right. The color of the switch becomes blue w hen
activated.
4. Specify the start position (offset)(1) for the blending height and width, setup an size value (2 ) to determine the width of the blending
area.
Whe n the blending lines are activated, y ou will get a visual indication of the screen of the installed blending area.
R5906852 F80 SERIES 21/09/2017
51
