9. GUI – System Settings
- Horizontal shift
- Vertical shift
-Focus
- Zoom
The text Calibration in progress will be d isplayed next to s elected function until the calibration is completed.
When an error is detected, the message Calibration Error is displayed next to function.
9.4.5 Lens features
What can be done?
Some lens features can be disabled once they are correctly aligned so that a misalignment during a show is not possible.
How t o enable/disable
1. In the main menu, System Settings → Service.

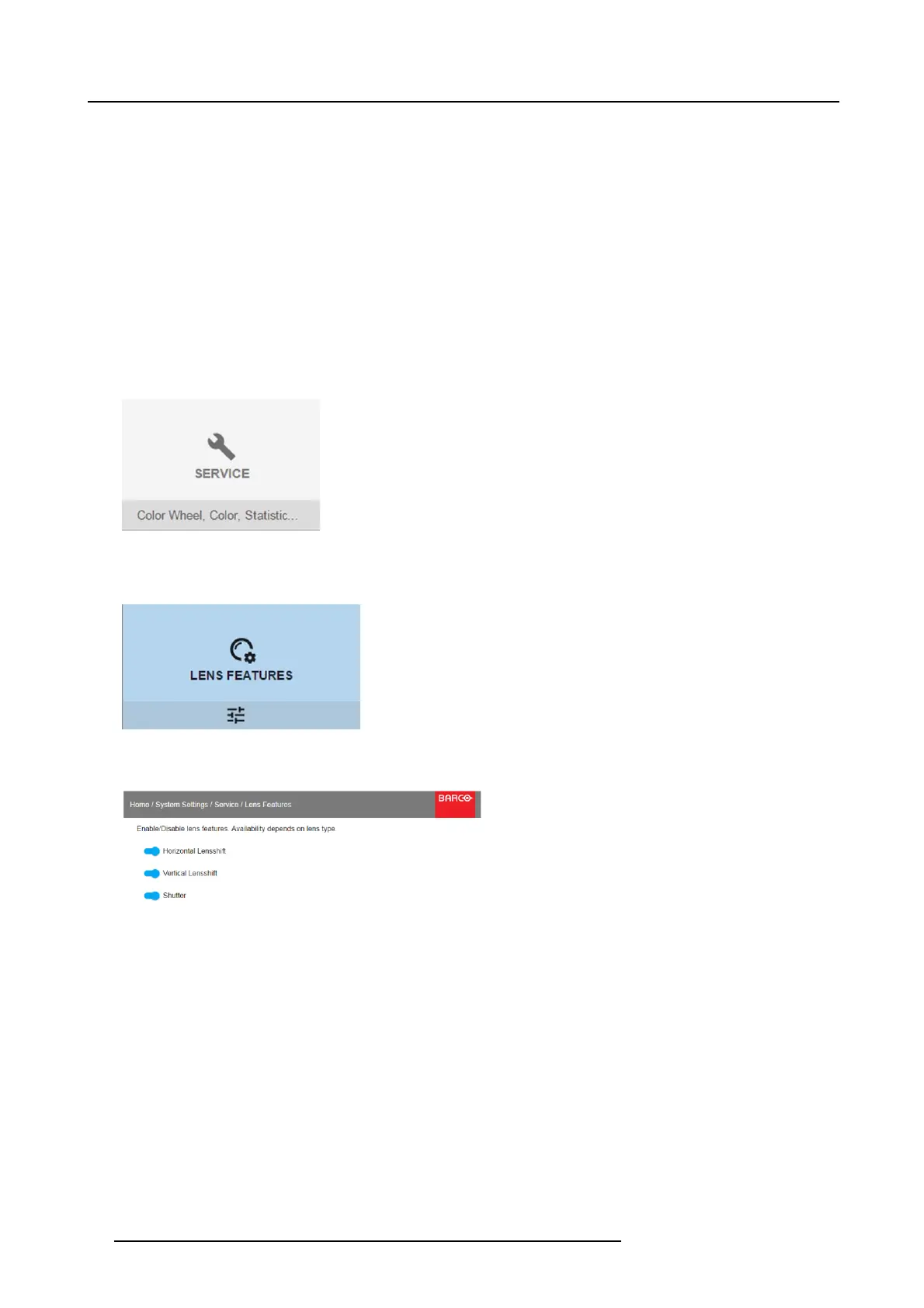

Image 9-21
2. Enter the service code.
3. In the Se rvice men u, select Lens features.
Image 9-22
Service menu, lens features
The Lens features menu is displayed.
Image 9-23
Lens features
Depending on the lens type, different functions are available such as:
-Focus
- Horizontal lens shift
- Vertical lens shift
- Shutter
- Zoom
4. To enable/disable a feature, click on t he s lider and drag it to the left to disable the feature or the right to enable the feature.
When enabled, the slider becomes blue;
When disabled, the slider is gray.
66
R5906852 F80 SERIES 21/09/2017

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
