5. Graphic User Interface (GUI)
Or,
Push the Tes t Patterns button on the RC or on the local keypad.

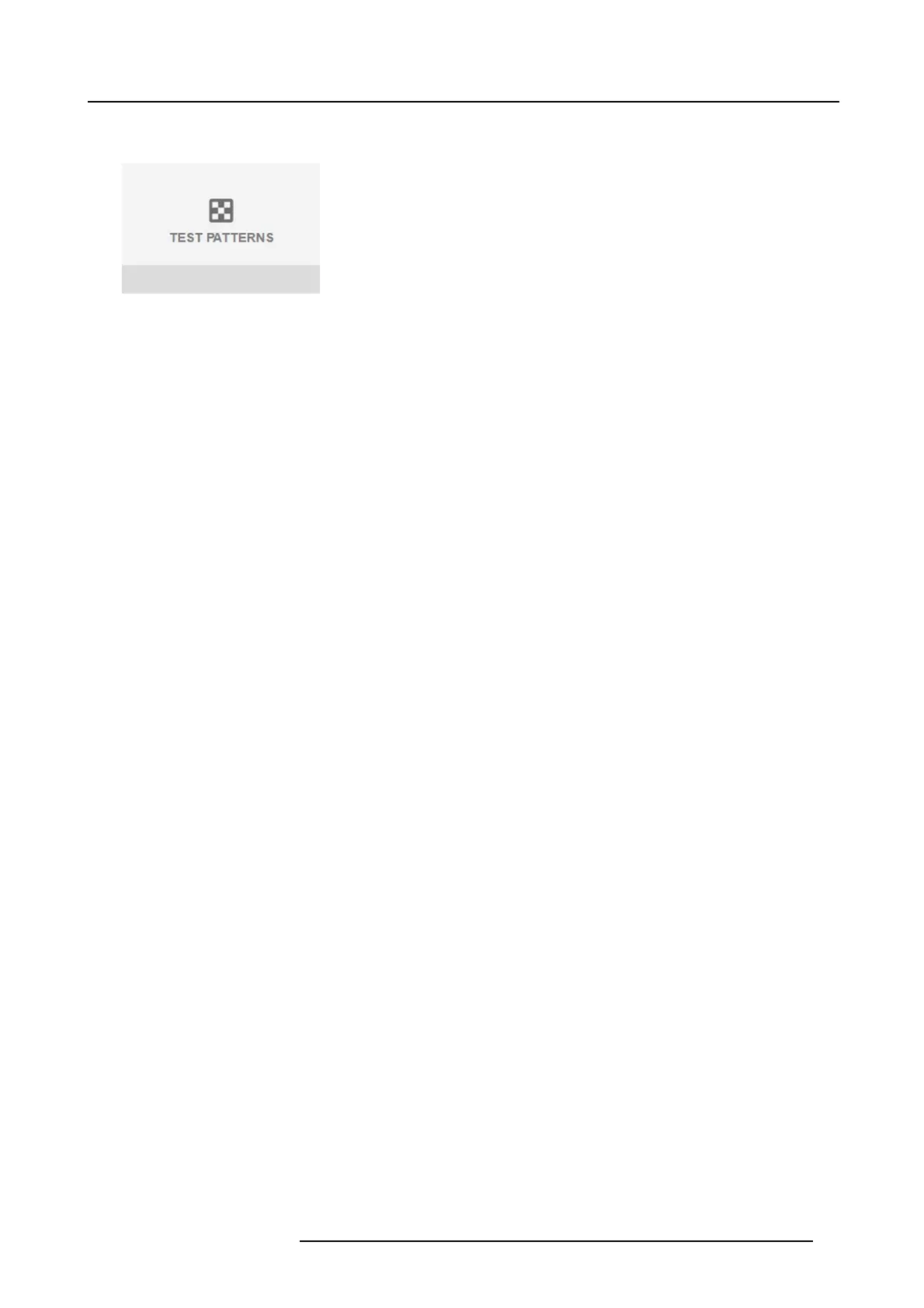

Image 5-4
Main menu, Test Patterns
2. In the Test Patterns m enu, select either Patterns, Internal,orP 7 Calibration test patterns.
3. In the ch osen submenu, select the desired test pattern from the list.
You can select one of the following Patterns test patterns:
-Refresh
- Na tive Blac k
You can select one of the following Internal test patterns:
- Aspect
- ANSI Lumen
- Ch e cker Board
-Focus
- Cro ss hatch
- Mono scope
- FRHL
-Green
-FocusBW
- Color bars
-Blue
-Red
-White
You can select one of the following P7 Calibration test patterns:
-NativeRed
- Native Green
- Na tive Blue
-NativeWhite
4. To turn the test p attern off, r eturn to the previous menu.
R5906852 F80 SERIES 21/09/2017
35

Barco F80-Q7 Specifications

General

Placement	Desktop
Product type	Large venue projector
Product color	Black, Silver
Market positioning	Business
Heat dissipation	2900 BTU/h
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	10000:1
Contrast ratio (typical)	1200:1
Screen size compatibility	- \
Projector native resolution	WQXGA (2560x1600)
Zoom capability	Yes
Focal length range	- mm
Light source type	Laser
Service life of light source	40000 h
Analog signal format system	-
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Power source	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	850 W
Power consumption (standby)	0.5 W
Power consumption (typical)	700 W
Noise level	35 dB
Certification	CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	680 mm
Width	480 mm
Height	227 mm
Weight	25500 g
