Line Output Level Adjust
This section adjusts the output level of the auxiliary 600 ohm balanced audio output
port. The level can be set to -6 dBm,-3 dBm, -0 dBm, +3 dBm, +6 dBm and +9
dBm.

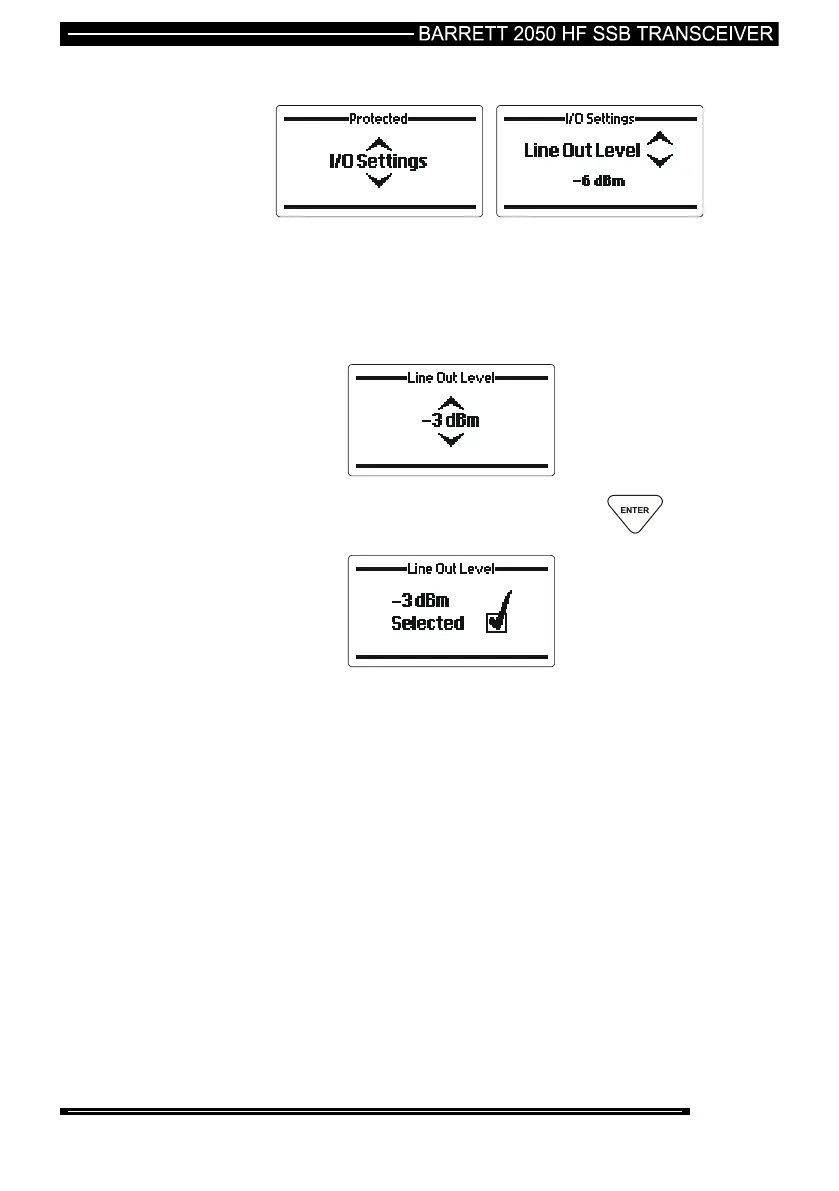

Use the Scroll keys to select the level required (example shown -
3 dBm):-
When the level required is displayed press the key
