910 Automatic Tuning Mobile Antenna - Barrett P/N BC91000
The 910 antenna plugs directly into the rear of a 2050 transceiver using the cables
supplied. Important:- 2050 transceivers must have the 910 antenna option set
during programming.
The 910 antenna should be mounted in positions similar to those illustrated in the
diagrams below. Select a position free from excessive vibration. A bracket,
fabricated to withstand the forces and vibration that can be expected during off-road
driving, should be used to mount the antenna to the vehicle. When locating the
mounting position for the antenna ensure that the antenna body, when flexing on its
vibration mount, cannot come into contact with other parts of the vehicle. The
antenna should be mounted as far from surrounding objects on the vehicle as
possible.

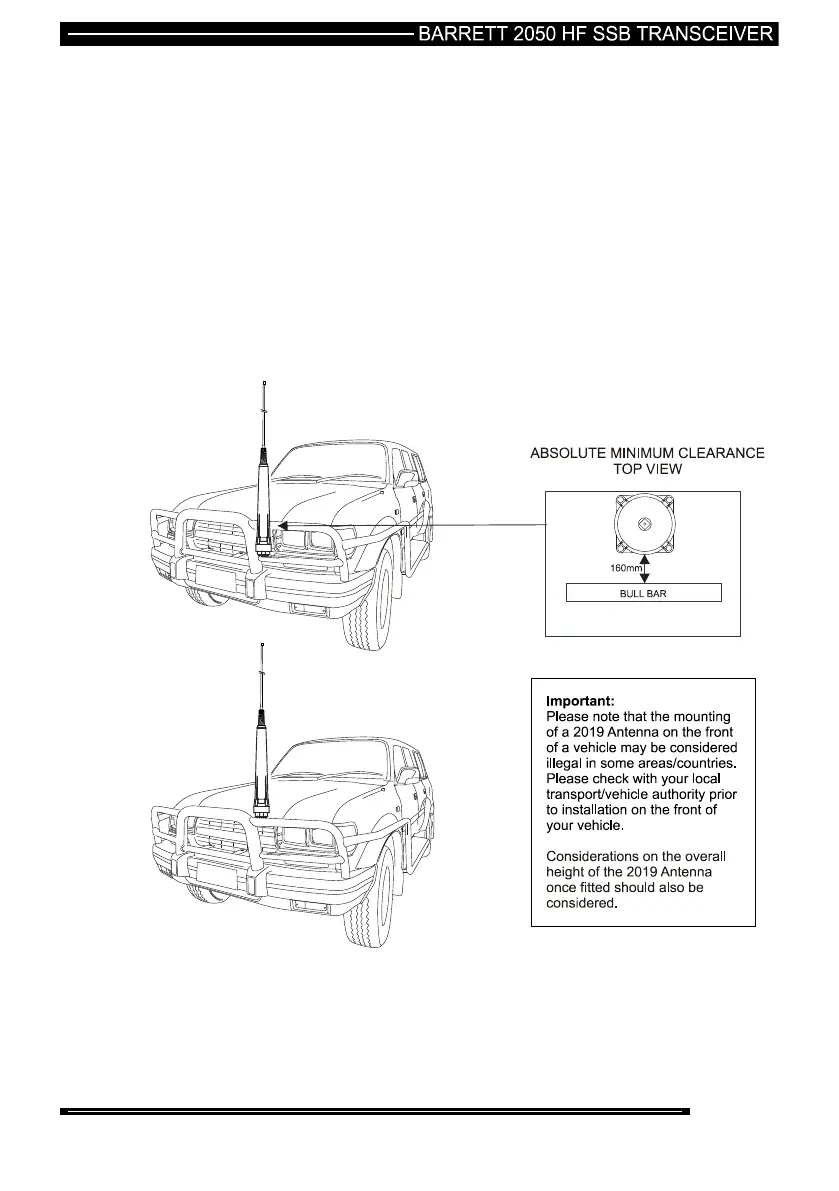

Preferred Mounting Positions
