Barrett 2050 - Line Input Level Adjust

164 of 285
Line Input Level Adjust
This section adjusts the input level sensitivity of the auxiliary 600 ohm balanced
audio input. Sensitivity can be adjusted to -24 dBm,-18 dBm, -12 dBm, -6 dBm and
0 dBm.

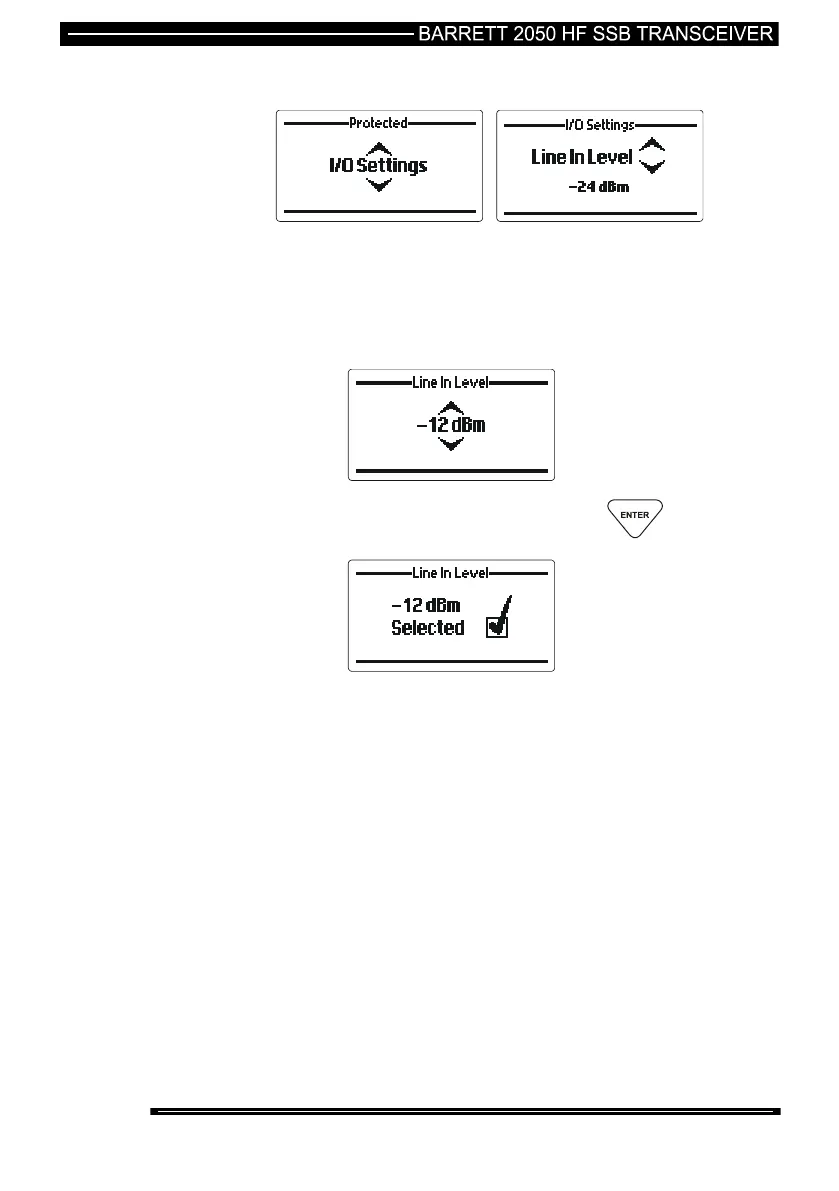

Use the Scroll keys to select the level required (example shown -
12 dBm):-
When the level required is displayed press the key
