74 of 285

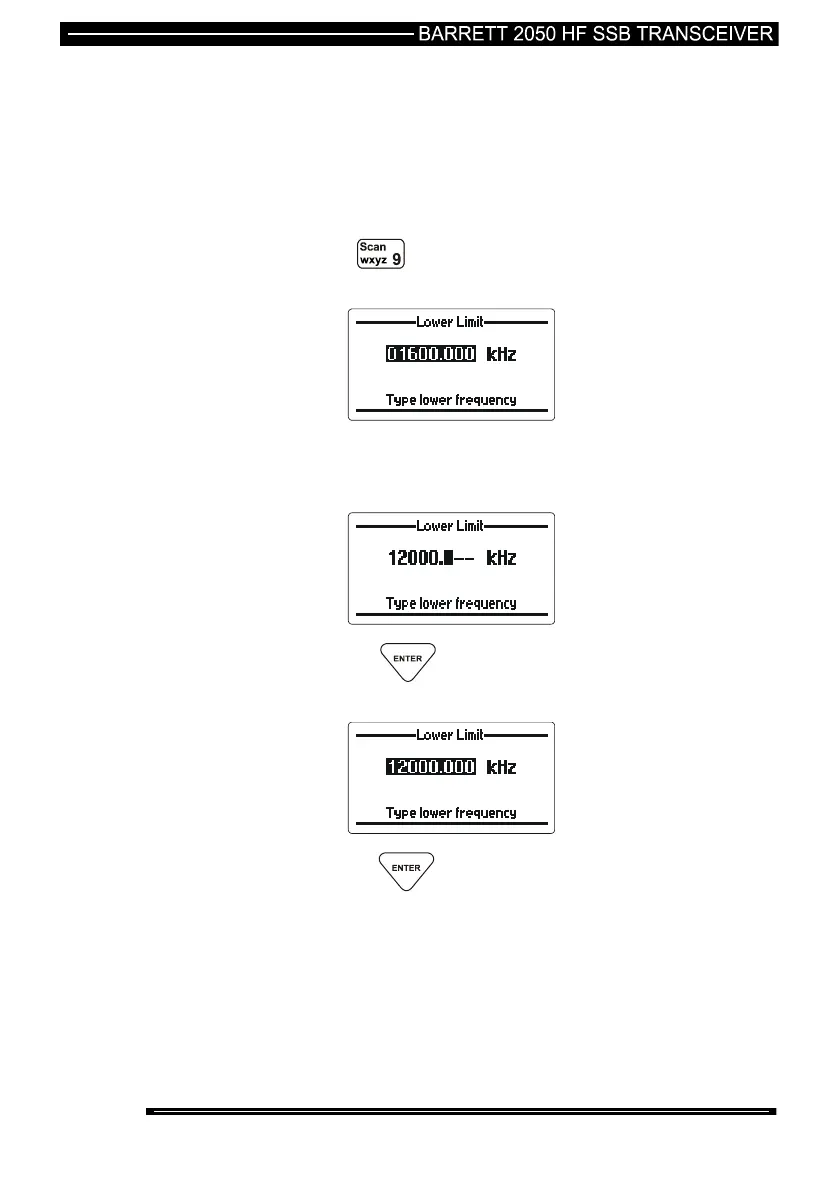

Scanning with the Tunable Receiver
The receiver can scan any range of frequencies from 250 kHz to 30 MHz with a
frequency step down to 10 Hz.
Setting up Scan Frequencies
To set up the frequency scan parameters, enter the tuning receiver mode, then:-
Press the key for two seconds until the following is
displayed:-
Enter a new frequency, using the numeric keys, to set the lower
scan limit boundary - example below shows the lower limit set to
12 MHz:-
then press the key. The newly entered frequency will be
displayed.
then press the key. The last entered upper frequency will
be displayed.
