Operation of the Manpack in Temporary Base Stations
For temporary base station operation, Barrett manpack can be operated using
either a single wire, end fed, portable broadband antenna Barrett P/N BC91205 or
a tactical rapid deploy end fed low power dipole, Barrett P/N BC91503 as
illustrated below:-
Deploying the End Fed Single Wire Low Power Broadband
Barrett P/N BC91205
Unfurl the broadband antenna from the winding bobbin supplied.
Push the earth stake into the ground. Clip the short wire from the balun box, with
the coaxial connector on it, to the earth stake using the crocodile clip supplied.

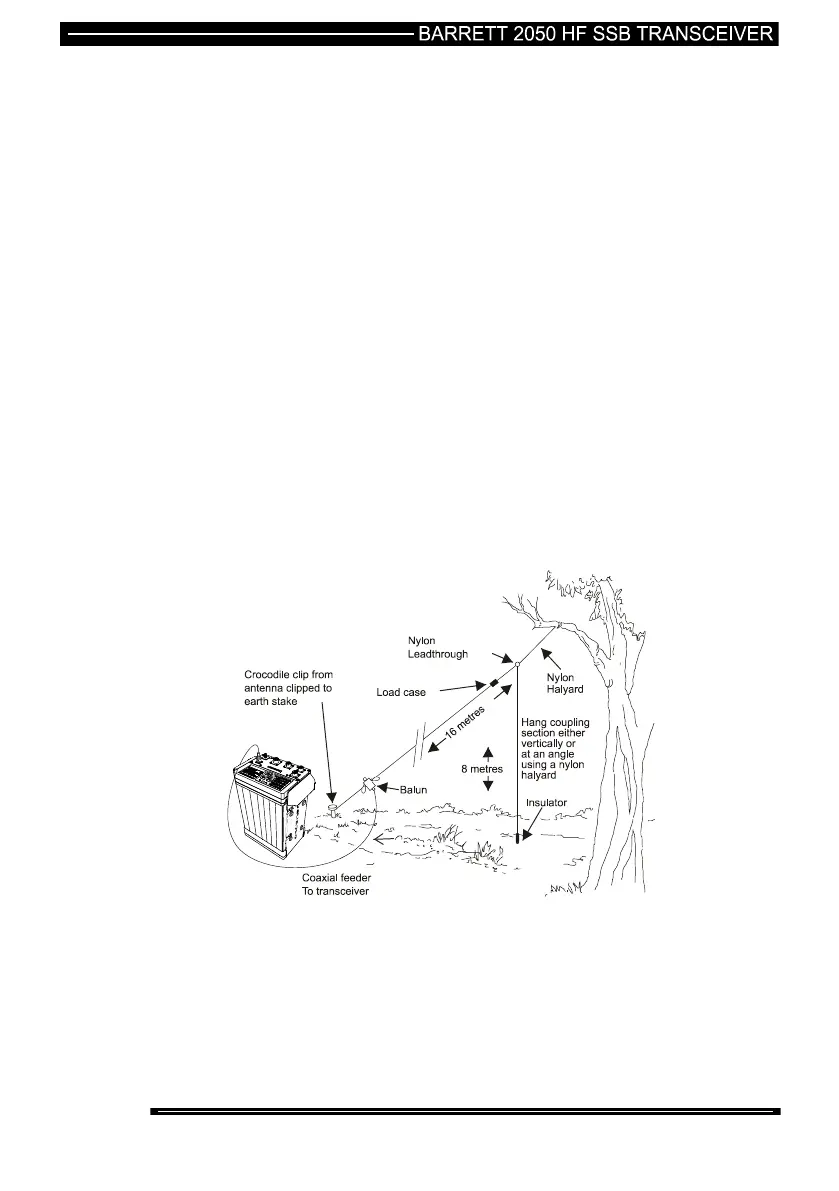

Hang the wire section of the antenna in any configuration convenient as indicated in
the diagrams below. Note the higher from the ground the more efficient the
antenna will be.
Connect the coaxial cable from the coaxial socket on the blue balun box on the
antenna to the manpack transceiver 50Ω BNC antenna socket.
The antenna is now ready for operation, no tuning or adjustments are required.
.
