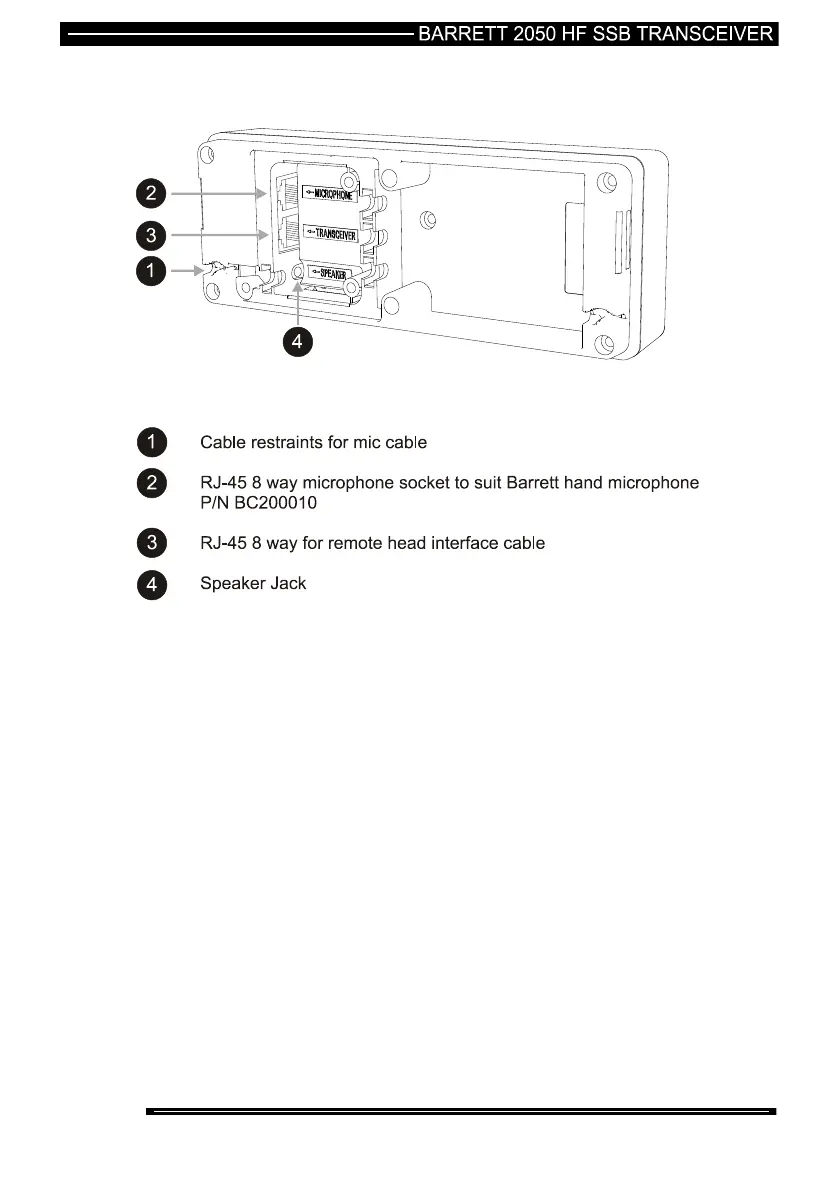

2050 Transceiver Control Head Rear View
Microphone Socket
The microphone supplied with the Barrett 2050 is inserted here.
Note:- When the transceiver is supplied it is assembled in the one piece base
station configuration and the microphone is already fitted. If using the 2050 in the
remote control (trunk mount) configuration refer to the section “Installing the Barrett
2050 transceiver”.
Transceiver Socket
When used in a base station configuration (one piece unit, as supplied) the small
remote head interface cable supplied in the kit is plugged in here with the other end
into the front of the main transceiver module. When used in the remote control
(trunk mount) configuration the longer interface cable supplied is used.
