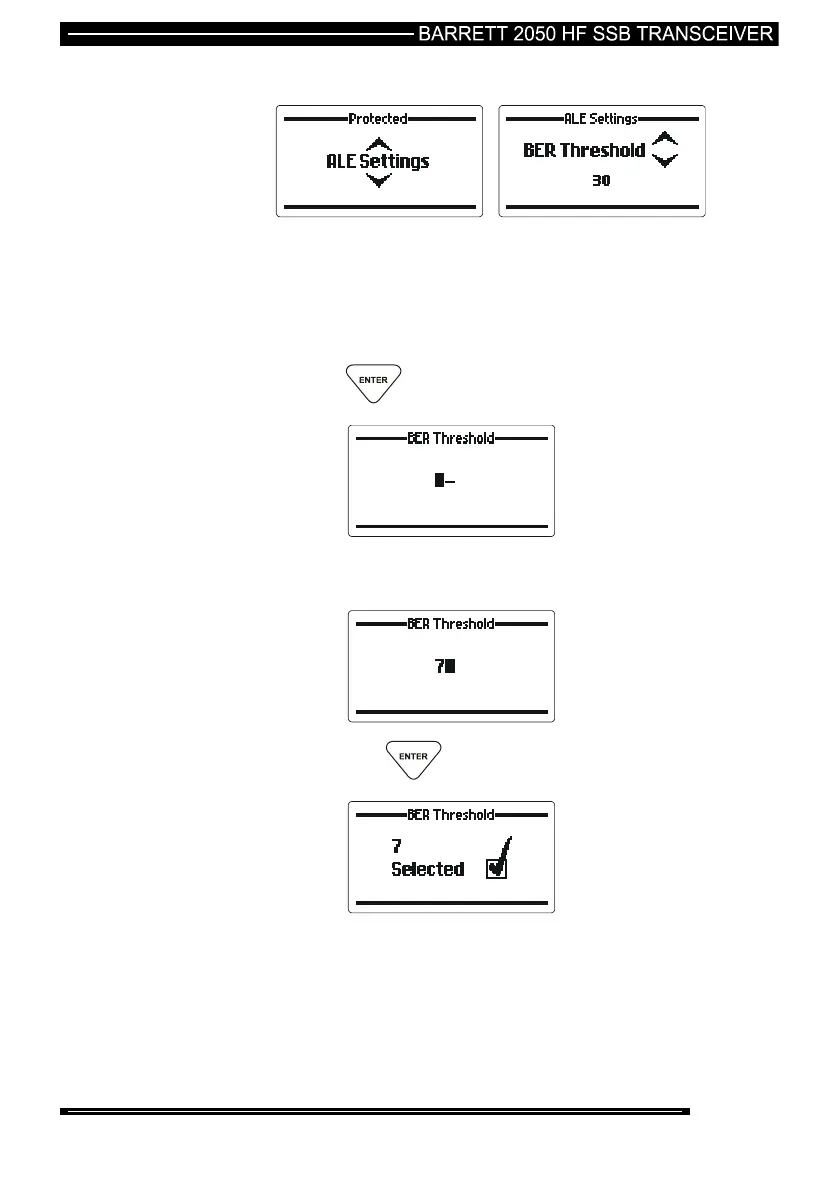

BER Threshold
This option selects the BER threshold at which an ALE channel is considered
usable. If the required BER is not reached in the reply from the remote station the
link establishment process is rejected. Depending on the retry setting the link
establishment would continue on another link.
It can be set between 0-30, selecting 30 effectively means that all links are allowed
press the key
using the numeric keys enter the BER threshold required
(example “7”):-
then press the key
ALE Fill Mode
The ALE is configured with its entire network data using the Barrett 2000 Series PC
based programming.
