Using the Counterpoise

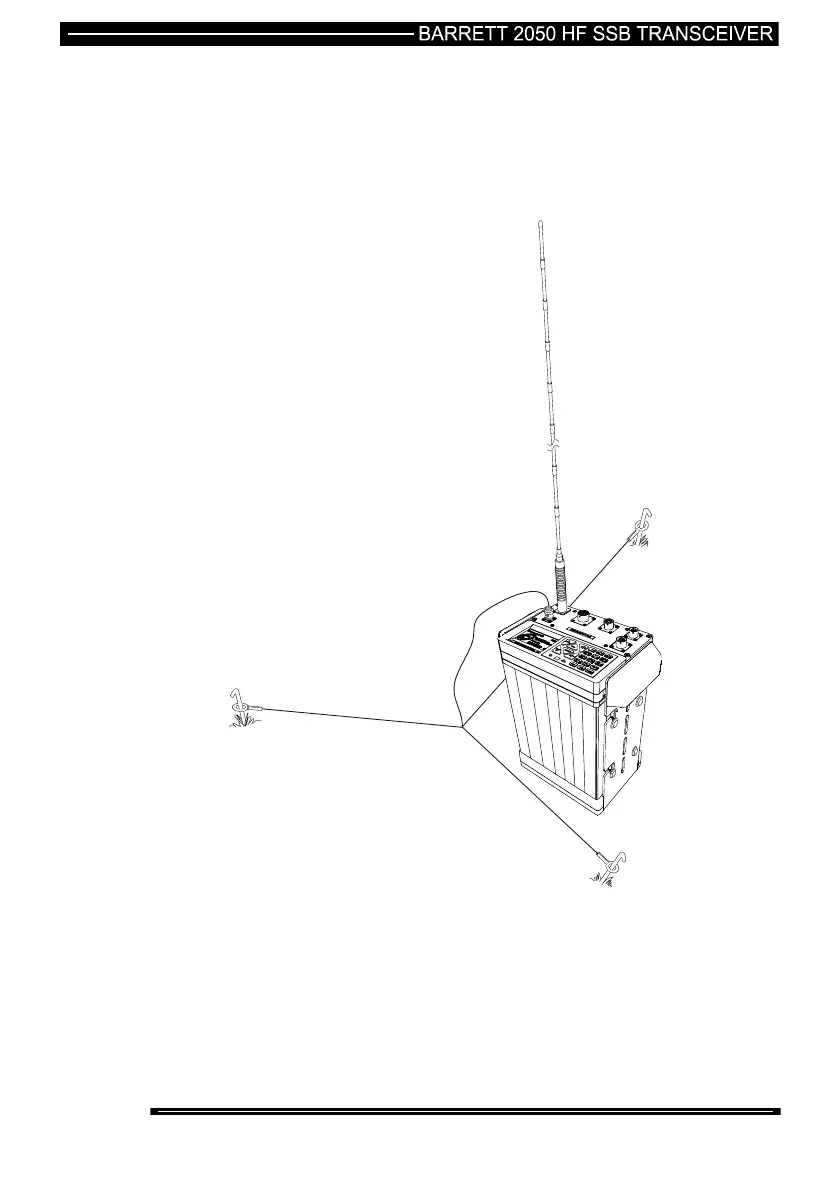

When using either a whip or the long wire antenna efficiency can be increased by
the use of the counterpoise supplied. This is connected to the 2040 via the BNC
connector connected to the counterpoise. The three radials should be spread out
on the ground as indicated in the diagram below:-
