258 9424200994 Rev N
Adapter bracket 9289924100 allows a single BE1-11g to be mounted in a 19-inch rack (see Figure 192).
A second adapter bracket (9289929100) performs the same function but includes a cutout for an ABB FT
switch (see Figure 193).

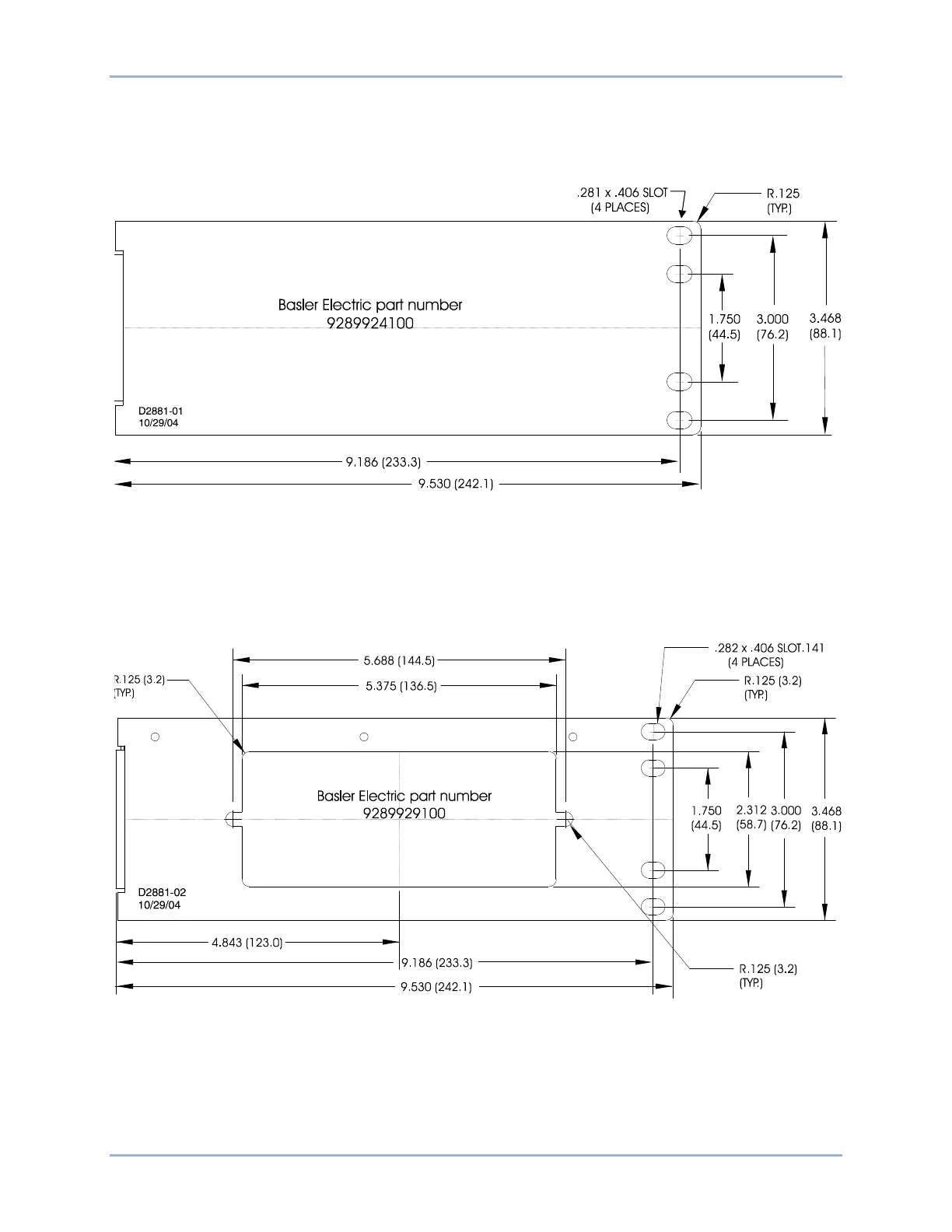

Figure 192. Adapter Bracket for Mounting a Single BE1-11g in a 19-inch Rack
Figure 193. Adapter Bracket for 19-inch Rack Mount with ABB FT Cutout Switch
Mounting BE1-11g
