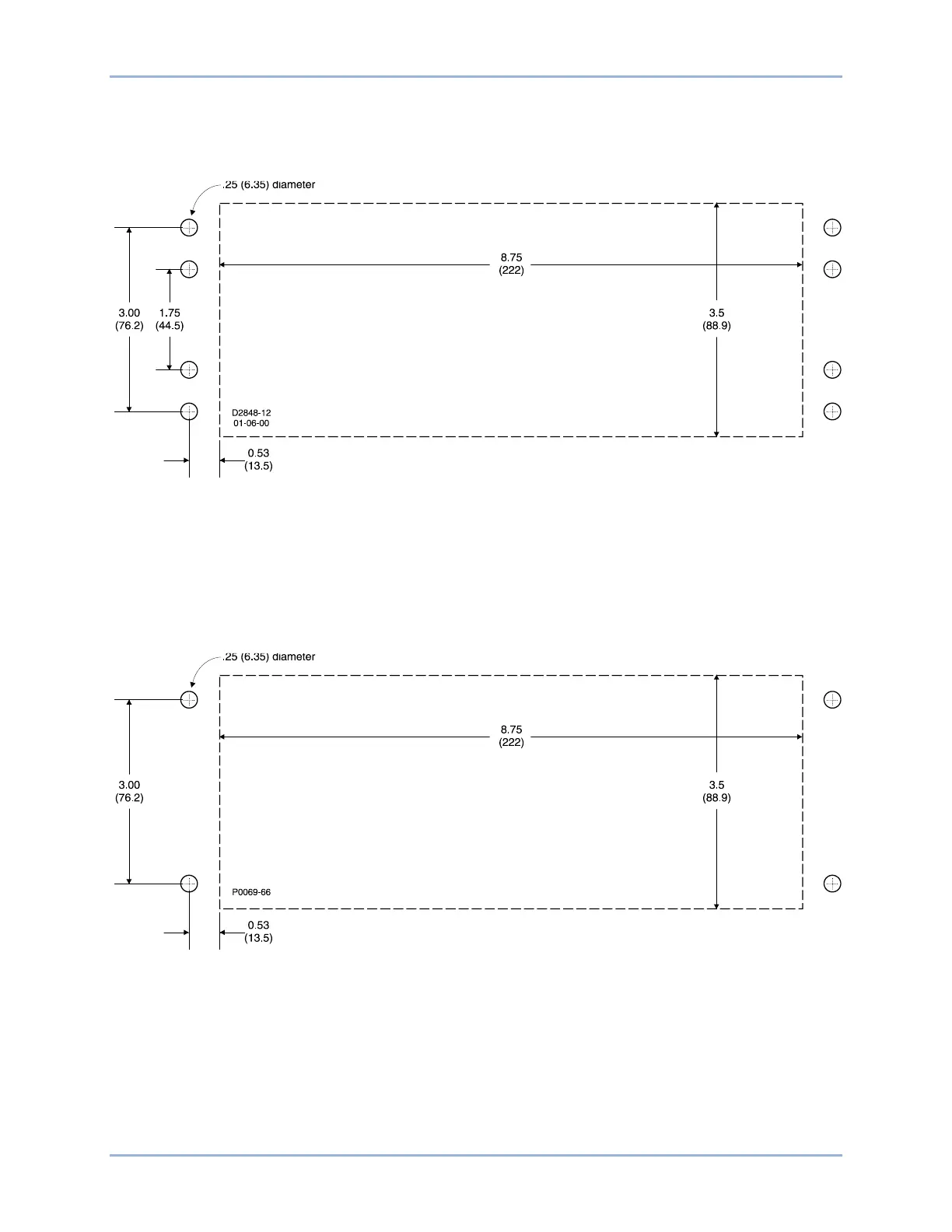

If a single H1 BE1-11g (H style case) is to be rack mounted, the cutout and drilling dimensions of Figure
194 should be used. If a single H1 BE1-11g (P style case) is to be panel mounted, the cutout and drilling
dimensions of Figure 195 should be used.
Figure 194. Single H1 BE1-11g (H Style Case) Cutout and Drilling Dimensions for Rack Mounting
Figure 195. Single H1 BE1-11g (P Style Case) Cutout and Drilling Dimensions for Panel Mounting
BE1-11g Mounting
