Outputs
Configurable Local Outputs
This screen indicates the status of configurable local outputs. A red LED indicates that the status is
TRUE. Refer to Figure 4-63.

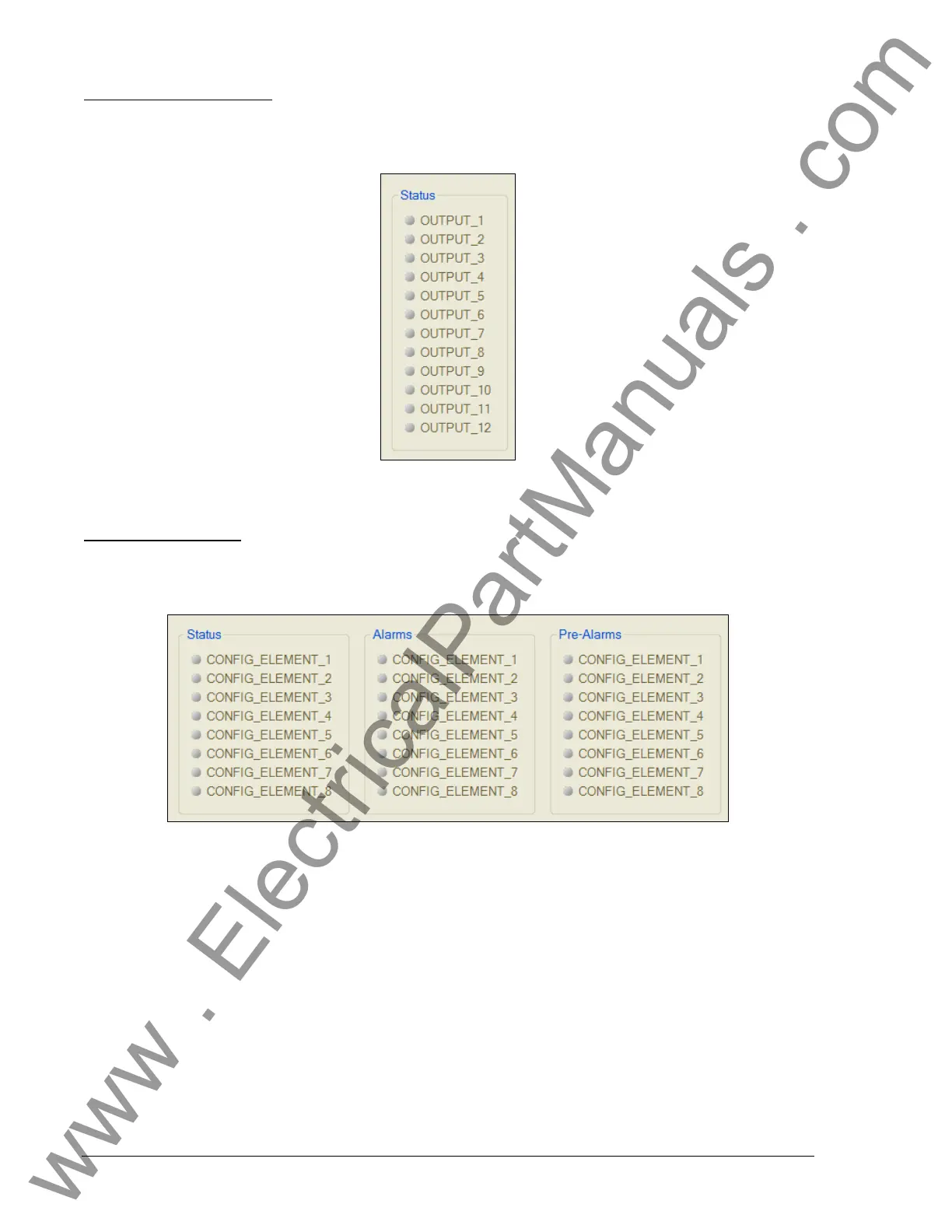

Figure 4-63. Metering, Outputs, Configurable Local Outputs
Configurable Elements
This screen indicates the status of configurable elements. It also indicates alarms and pre-alarms of
configurable elements. A red LED indicates that the status is TRUE. Refer to Figure 4-64.
Figure 4-64. Metering, Outputs, Configurable Elements
