8-10 DGC-2020 LSM-2020 (Load Share Module) 9400200990 Rev I

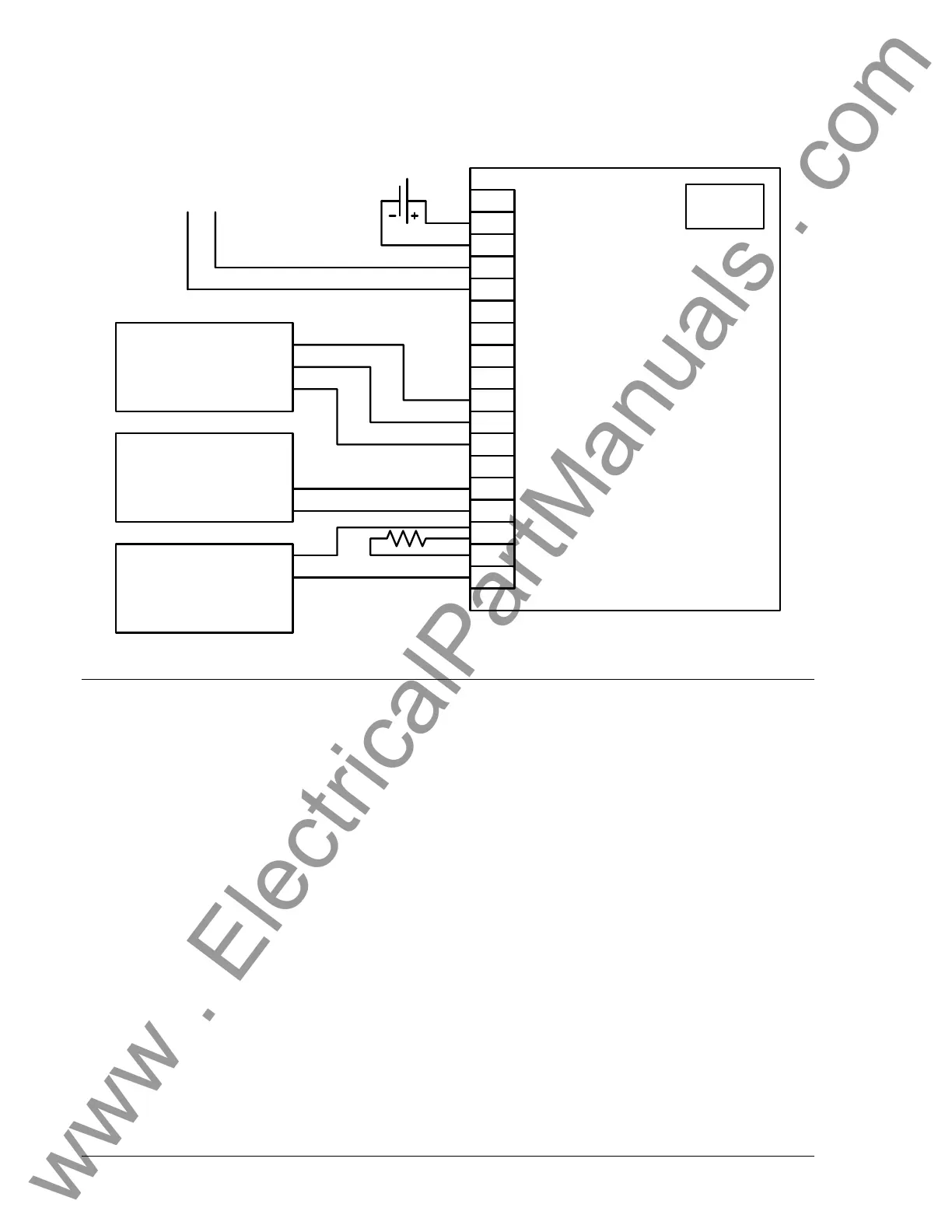

Connections using AVR’, GOV’, and LS’
Additional terminals provide a landing point to add series resistance to the GOV, AVR, and LS analog
outputs. These terminals are not internally connected to the LSM-2020. Figure 8-7 illustrates connections
usin
g the additional AVR’ terminal as a landing point.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Ethernet
LSM-2020
AVR+
AVR-
AVR’
GOV+
GOV-
GOV’
CANL
CANH
GND
V+
IN-
I+
LS+
LS-
LS’
B-
B+
GND
Voltage
Regulator
Analog
Aux
Input
Governor
Analog
Aux
Input
DGC-2020
CANL
CANH
SHIELD
To System Load
Share Line
12 or
24 Vdc
P0052-56
Figure 8-7. Connections using the AVR’ Terminal
MAINTENANCE
Preventive maintenance consists of periodically checking that the connections between the LSM-2020
and the system are clean and tight. LSM-2020’s are manufactured using state-of-the-art surface-mount
technology. As such, Basler Electric recommends that no repair procedures be attempted by anyone
other than Basler Electric personnel.
