9400200990 Rev I DGC-2020 BESTlogic+ Programmable Logic 5-7

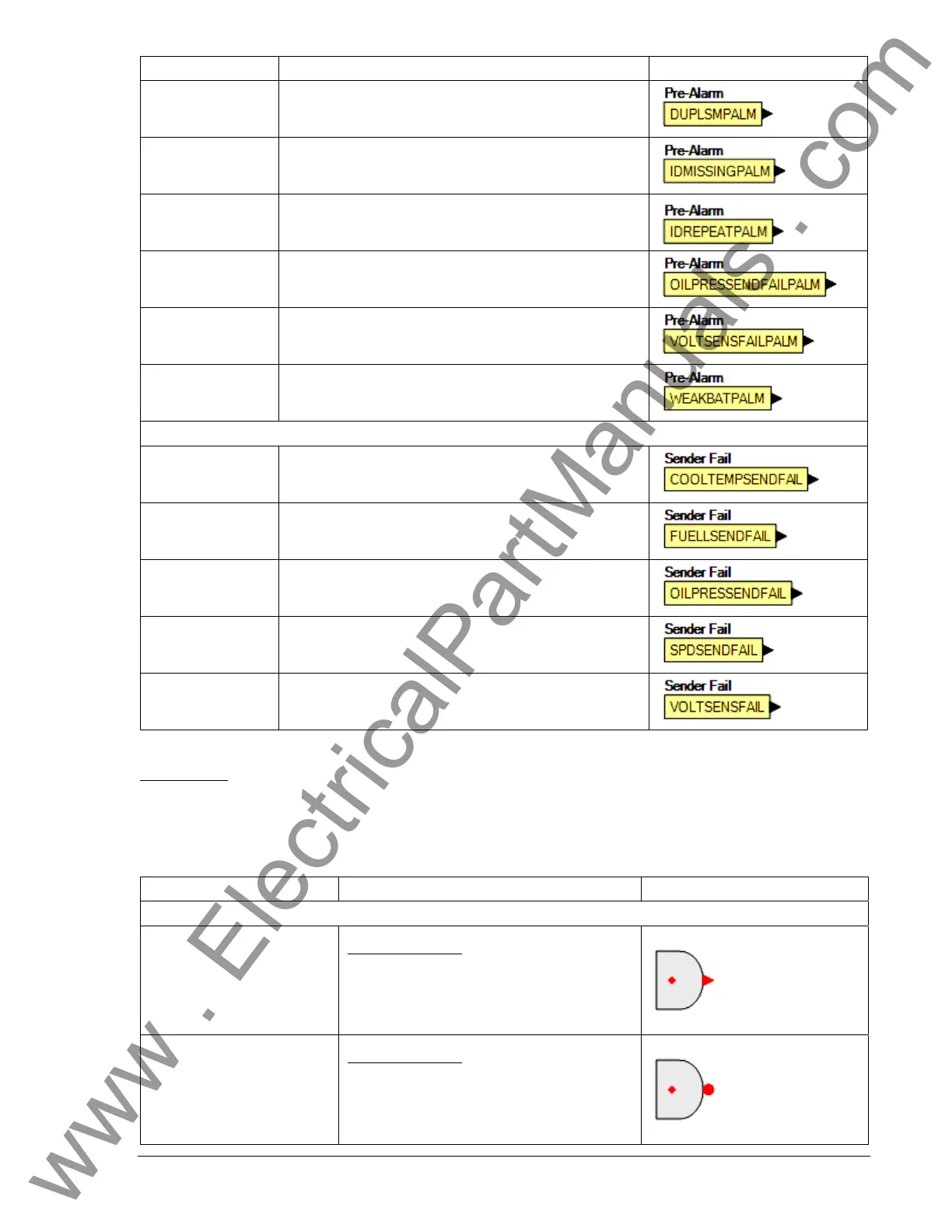

Name Description Symbol
Multiple Load
Share Modules
Detected
TRUE when more than one LSM-2020 is connected.
Network ID Missing
Error
TRUE if an expected sequence ID of an optional LSM-
2020 is not detected on the network. Expected sequence
IDs are entered on the Network Configuration screen.
Network ID Repeat
Error
TRUE if two or more optional LSM-2020’s report the
same expected sequence ID. Expected sequence IDs
are entered on the Network Configuration screen.
Oil Pressure
Sender Fail
TRUE when the Oil Pressure Sender Fail is configured
as a Pre-Alarm and the activation delay has expired.
Voltage Sensing
Fail
TRUE when the Voltage Sensing Fail is configured as a
Pre-Alarm and the activation delay has expired.
Weak Battery
TRUE when the Weak Battery Voltage Pre-Alarm
settings have been exceeded.
Senders
Coolant Temp
Sender Fail
TRUE when the Coolant Temp Sender Fail is configured
as either a Pre-Alarm or Alarm and the activation delay
has expired.
Fuel Level Sender
Fail
TRUE when the Fuel Level Sender Fail is configured as
either a Pre-Alarm or Alarm and the activation delay has
expired.
Oil Pressure
Sender Fail
TRUE when the Oil Pressure Sender Fail is configured
as either a Pre-Alarm or Alarm and the activation delay
has expired.
Speed Sender Fail
TRUE when the Speed Sender Fail activation delay has
expired.
Voltage Sensing
Fail
TRUE when the Voltage Sensing Fail is configured as
either a Pre-Alarm or Alarm and the activation delay has
expired.
Components
This group contains Logic Gates, Pickup and Dropout Timers, Latches, and Comment Blocks. Table 5-2
lists the nam
es and descriptions of the objects in the Components group.
Table 5-2. Components Group, Names and Descriptions
Name Description Symbol
Logic Gates
AND
Input Output
0 0 0
0 1 0
1 0 0
1 1 1
NAND
Input Output
0 0 1
0 1 1
1 0 1
1 1 0
