9400200990 Rev I DGC-2020 BESTCOMSPlus Software 4-19

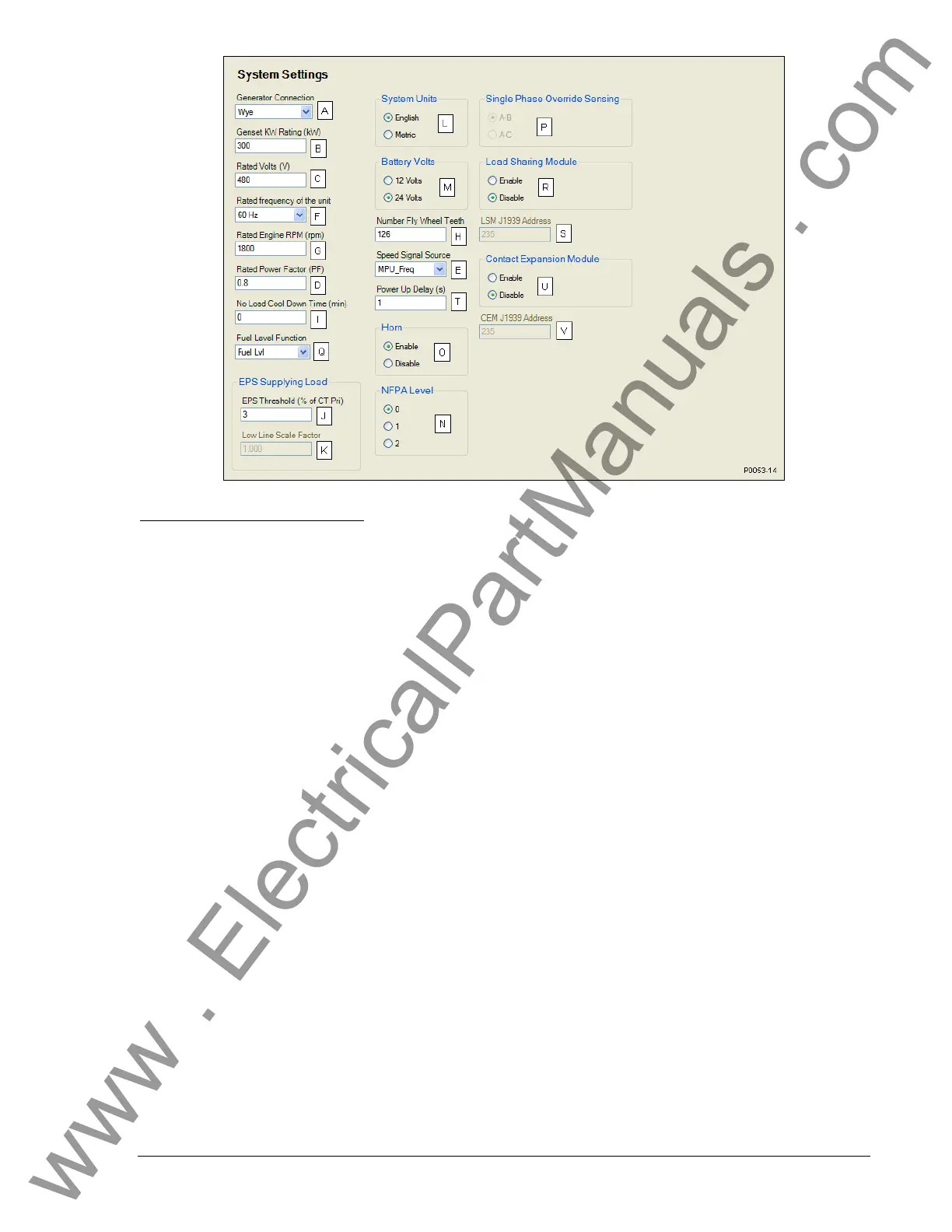

Figure 4-16. System Settings
A
Generator Connection: Delta, Wye, 1-Phase A-B, 1-Phase A-C, or 4-Wire Delta.
B
Genset kW Rating: Adjustable from 5 to 9,999 kW in 1 kW increments.
C
Rated Volts: Adjustable from 1 to 999 Vac in 1 Vac increments.
D
Rated Power Factor: Adjustable from -1 to 1 in increments of 0.001.
E
Speed Signal Source: MPU, Gen Freq, or MPU_Gen Freq.
F
Rated Frequency: 50/60 or 400 Hz.
G
Rated Engine RPM: Adjustable from 750 to 3,600 rpm in 1 rpm increments.
H
Number Fly Wheel Teeth: Adjustable from 50 to 500 in increments of 1.
I
No Load Cool Down Time: Adjustable from 0 to 60 minutes in 1 minute increments.
J
EPS Current Threshold: Adjustable from 3 to 10% of the CT primary rating in 1% increments.
K
Low Line Scale Factor: Adjustable from 0 to 3.000 in increments of 0.001.
L
System Units: English or Metric.
M
Battery Volts: 12 or 24 Vdc.
N
NFPA Level: 0 disables NFPA compliance, 1 enables Level 1 NFPA compliance, 2 enables Level 2.
O
Horn: Enable or Disable.
P
Single Phase Override Sensing: Either phases A-B or phases A-C.
Q
Fuel Level Function: Disable, Fuel Lvl, Natural Gas, or Liquid Propane.
R
Load Sharing Module: Enable or Disable.
S
LSM J1939 Address: Adjustable from 1 to 253 in increments of 1.
T
Power Up Delay: Adjustable from 0 to 60 seconds in 1 second increments.
U
Contact Expansion Module: Enable or Disable.
V
CEM J1939 Address: Adjustable from 1 to 253 in increments of 1.
Crank Settings
The DGC-2020 can be programmed for either cycle or continuous engine cranking
A
. Cycle cranking
provides multiple engine starting attempts
B
. Each starting attempt consists of a fixed interval of engine
cranking
C
followed by a rest interval of the same duration. Continuous cranking
D
provides a single,
extended engine-starting attempt.
The DGC-2020 uses the engine speed signal (supplied by a magnetic pickup (MPU) or the generator
frequency) and the Crank Disconnect Limit setting
E
to detect engine startup (and determine when engine
cranking can be stopped). The Crank Disconnect Limit setting is expressed as a percentage of the
nominal engine speed.
If desired, cycle or continuous cranking can be delayed after initiating engine startup. During this delay
F
,
the Pre-Start output closes to energize the engine glow plugs or pre-start lubrication pump. The Pre-Start
