Basler DGC-2020 User Manual

4-24 DGC-2020 BESTCOMSPlus Software 9400200990 Rev I

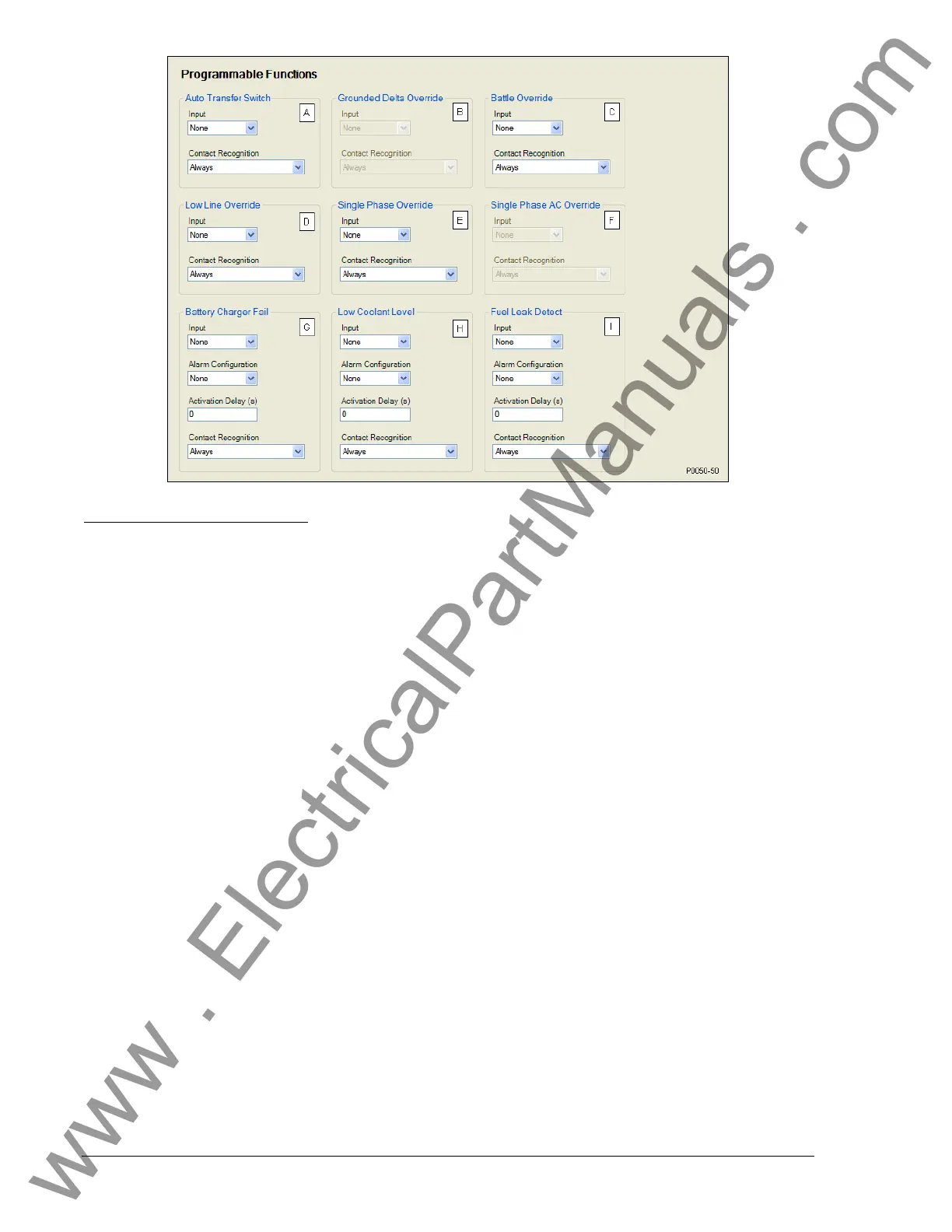

Figure 4-22. Programmable Functions Settings
A
Auto Transfer Switch Input: Select Input (None, 1-16) and Contact Recognition (Always or While
Engine Running Only).
B
Grounded Delta Override: Select Input (None, 1-16) and Contact Recognition (Always or While Engine
Running Only).
C
Battle Override: Select Input (None, 1-16) and Contact Recognition (Always or While Engine Running
Only).
D
Low Line Override: Select Input (None, 1-16) and Contact Recognition (Always or While Engine
Running Only).
E
Single Phase Override: Select Input (None, 1-16) and Contact Recognition (Always or While Engine
Running Only).
F
Single Phase AC Override: Select Input (None, 1-16) and Contact Recognition (Always or While Engine
Running Only).
G
Battery Charger Fail: Select Input (None, 1-16), Alarm Configuration (None, Alarm, Prealarm),
Activation Delay (s) (0 to 300 in increments of 1), and Contact Recognition (Always or While Engine
Running Only).
H
Low Coolant Level: Select Input (None, 1-16), Alarm Configuration (None, Alarm, Prealarm), Activation
Delay (s) (0 to 300 in increments of 1), and Contact Recognition (Always or While Engine Running Only).
I
Fuel Leak Detect: Select Input (None, 1-16), Alarm Configuration (None, Alarm, Prealarm), Activation
Delay (s) (0 to 300 in increments of 1), and Contact Recognition (Always or While Engine Running Only).
Configurable Remote Inputs
An optional CEM-2020 (Contact Expansion Module) provides 10 contact inputs. Each of the 10 contact
inputs can be independently configured to annunciate an alarm or pre-alarm
A
when the input senses a
contact closure. A user-adjustable time delay
B
can be set to delay recognition of a contact input. By
default, all inputs are configured so that they do not trigger an alarm or pre-alarm.
To make identifying the contact inputs easier, a user-assigned name
C
can be given to each input.
Contacts can be recognized
D
always or only while the engine is running.
BESTCOMSPlus settings for the configurable contact inputs (DGC-2020, Programmable Inputs,
Configurable Remote Inputs) are illustrated in Figure 4-23.
