4-14 DGC-2020 BESTCOMSPlus Software 9400200990 Rev I

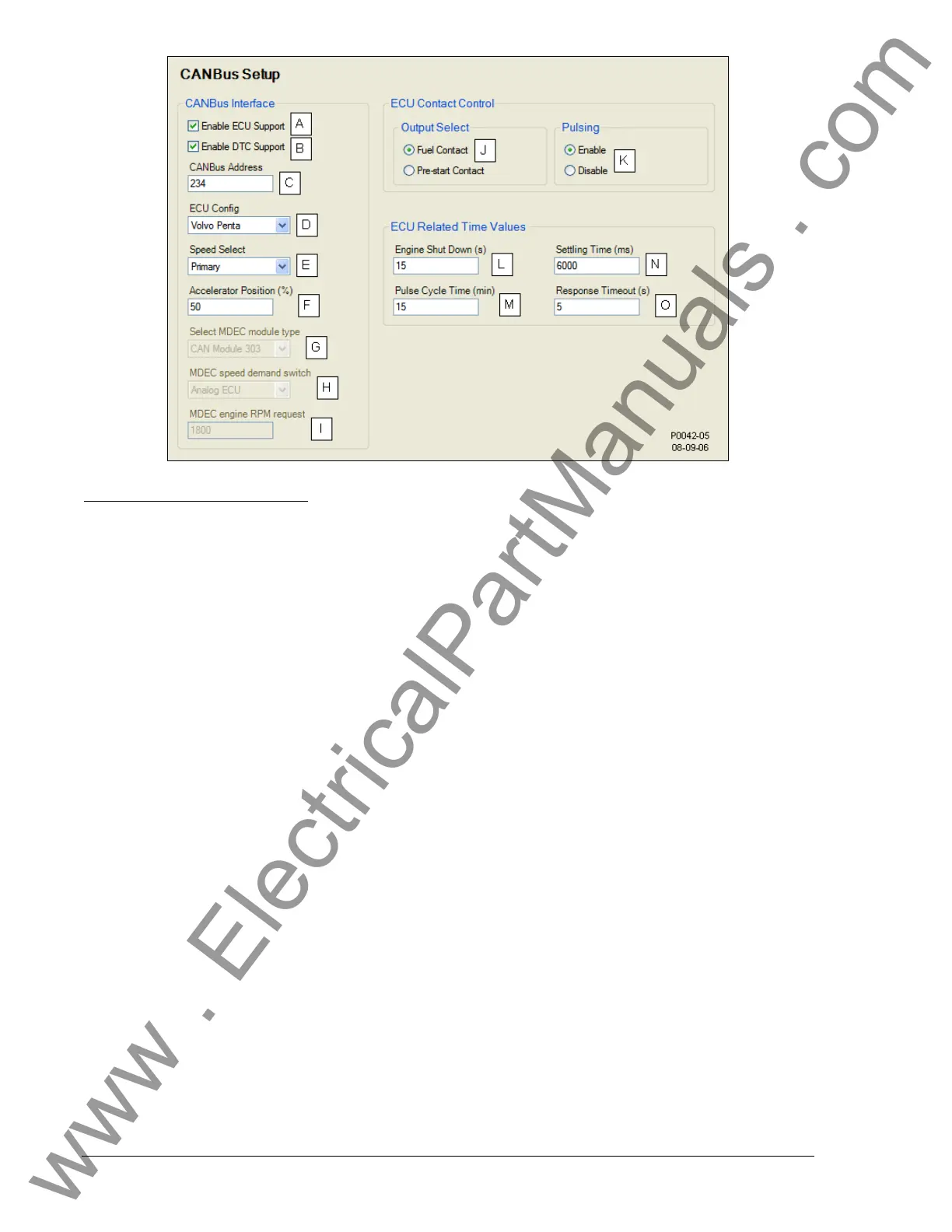

Figure 4-13. CANBus Setup
A
Enable ECU Support: Check box to enable ECU support.
B
Enable DTC Support: Check box to enable DTC support.
C
CANBus Address: Accepts an address number from 0 to 253 in increments of 1.
D
ECU Config: Standard, Volvo Penta, or MTU MDEC.
E
Speed Select: Primary or Secondary.
F
Accelerator Position: Adjustable from 0 to 100% in 1% increments.
G
Select MDEC module type: Can Module 201, 302, 303, or 304.
H
MDEC speed demand switch: Analog CAN, Analog ECU, Up Down ECU, Up Down Can, Frequency, or
No CAN Demand.
I
MDEC engine RPM request: Adjustable from 1,400 to 2,000 in increments of 1.
J
Output Select: Fuel Contact or Pre-start Contact.
K
Pulsing: Enable or Disable.
L
Engine Shutdown: Adjustable from 1 to 60 s in 1 s increments.
M
Pulse Cycle Time: Adjustable from 1 to 60 s in 1 s increments.
N
Settling Time: Adjustable from 5,500 to 30,000 ms in 1 ms increments.
O
Response Timeout: Adjustable from 1 to 60 s in 1 s increments.
Modem Setup (Optional)
DGC-2020 controllers with style number xxxxxMxxx are equipped with an internal telephone modem that
has dial-in and dial-out capability. The modem gives the DGC-2020 the ability to dial up to four telephone
numbers
A
and annunciate user-selected conditions to specified pagers
B
. These user-selected conditions
include
C
:
• 27-1 Trip Alarm
• 27-2 Trip Alarm
• 32 Trip Alarm
• 40 Trip Alarm
• 47 Trip Alarm
• 51-1 Trip Alarm
• 51-2 Trip Alarm
• 59-1 Trip Alarm
• 59-2 Trip Alarm
• 81O Trip Alarm
• 81U Trip Alarm
• 27-1 Trip Pre-Alarm
• 27-2 Trip Pre-Alarm
