Front Panel HMI
The contrast
A
of the front panel LCD (liquid crystal display) can be adjusted to suit the viewing angle used
or compensate for environmental conditions.
A power saving feature, referred to as Sleep mode
B
, will turn the front panel LCD backlight and LCD
heater off when the DGC-2020 is in Off mode or Auto mode (not in Run mode) and a key is not pressed
for more than 15 minutes. Normal display operation is resumed when any front panel button is pressed or
the genset is started remotely via the ATS. Sleep mode is enabled and disabled in BESTCOMSPlus.
Specific language modules can be uploaded into the DGC-2020. When the language module upload is
complete, use the Language
C
selector to select the correct language.

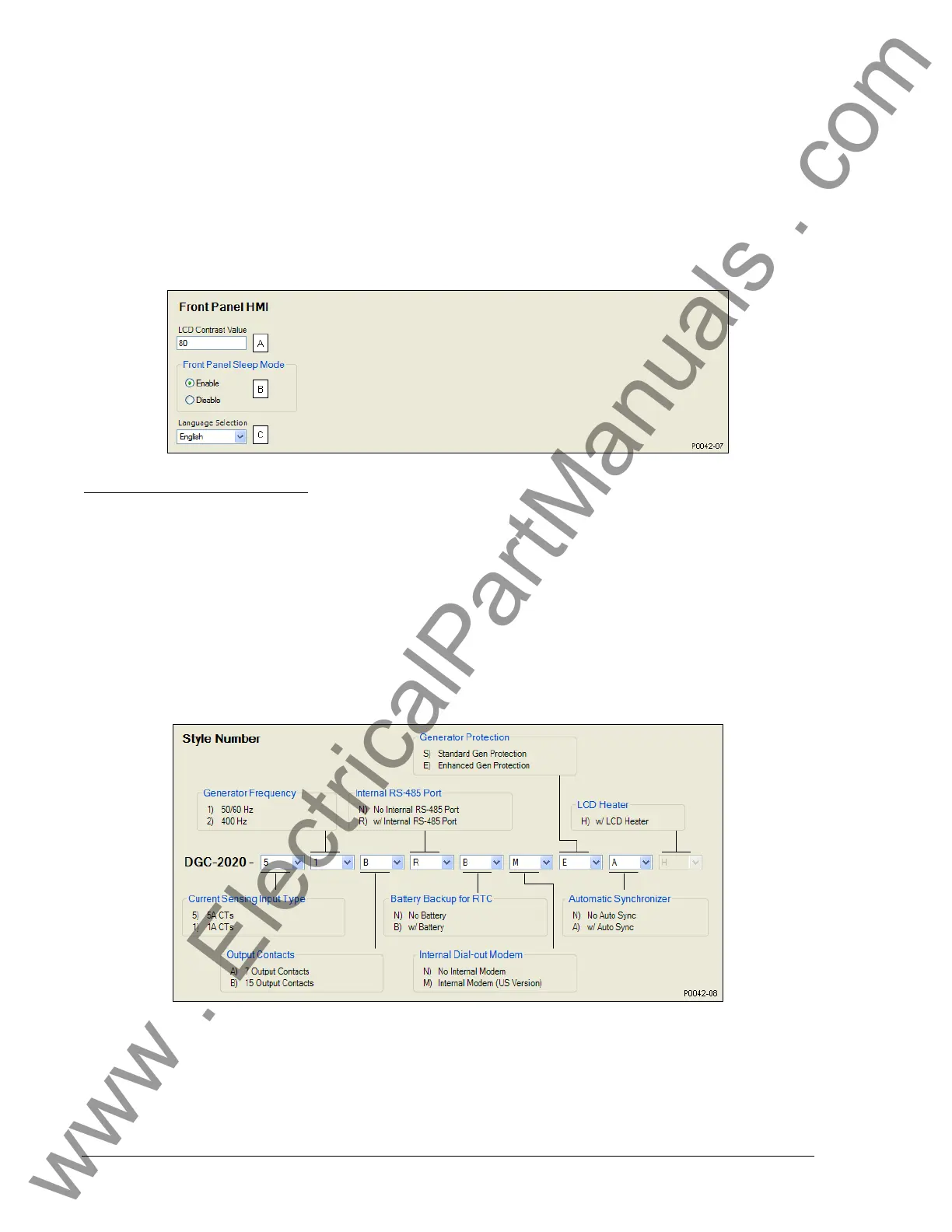

BESTCOMSPlus front panel HMI settings are illustrated in Figure 4-8.
Figure 4-8. Front Panel HMI Settings
A
LCD Contrast Value: Adjustable from 0 to 100 (maximum contrast) in increments of 1.
B
Front Panel Sleep Mode: Enable or Disable.
C
Language: Default or Alternate.
Style Number
When a PC operating BESTCOMSPlus is communicating with a DGC-2020, the style number of the
DGC-2020 is automatically displayed on the BESTCOMSPlus Style Number tab.
When configuring DGC-2020 settings off-line, the style number for the unit to be configured can be
entered into BESTCOMSPlus to enable configuration of the required settings.
BESTCOMSPlus style number selections and definitions are illustrated in
Figure 4-9.
Figure 4-9. DGC-2020 Style Chart Selections and Definitions
Device Info
Information about a DGC-2020, LSM-2020 (Load Share Module), and CEM-2020 (Contact Expansion
Module) can be obtained when communicating with BESTCOMSPlus.
