Basler DGC-2020 User Manual

9400200990 Rev I DGC-2020 Human-Machine Interface 2-5
P0052-37
SETTINGS
GENERAL SETTINGS
COMMUNICATIONS
SYSTEM PARAMS
ALARM CONFIGURATION
GENERATOR PROTECTION
BREAKER MANAGEMENT
BIAS CONTROL
MULTIGEN MANAGEMENT
ENTER PASSWORD
GENERAL SETTINGS
Refer to Table 2-2
COMMUNICATIONS
Refer to Table 2-3
SYSTEM PARAMS
Refer to Table 2-4
ALARM CONFIGURATION
Refer to Table 2-5
GENERATOR PROTECTION
Refer to Table 2-6
BREAKER MANAGEMENT
Refer to Table 2-7
BIAS CONTROL
Refer to Table 2-8
MULTIGEN MANAGEMENT
Refer to Table 2-9
(Available when Load Sharing Module
is enabled.)

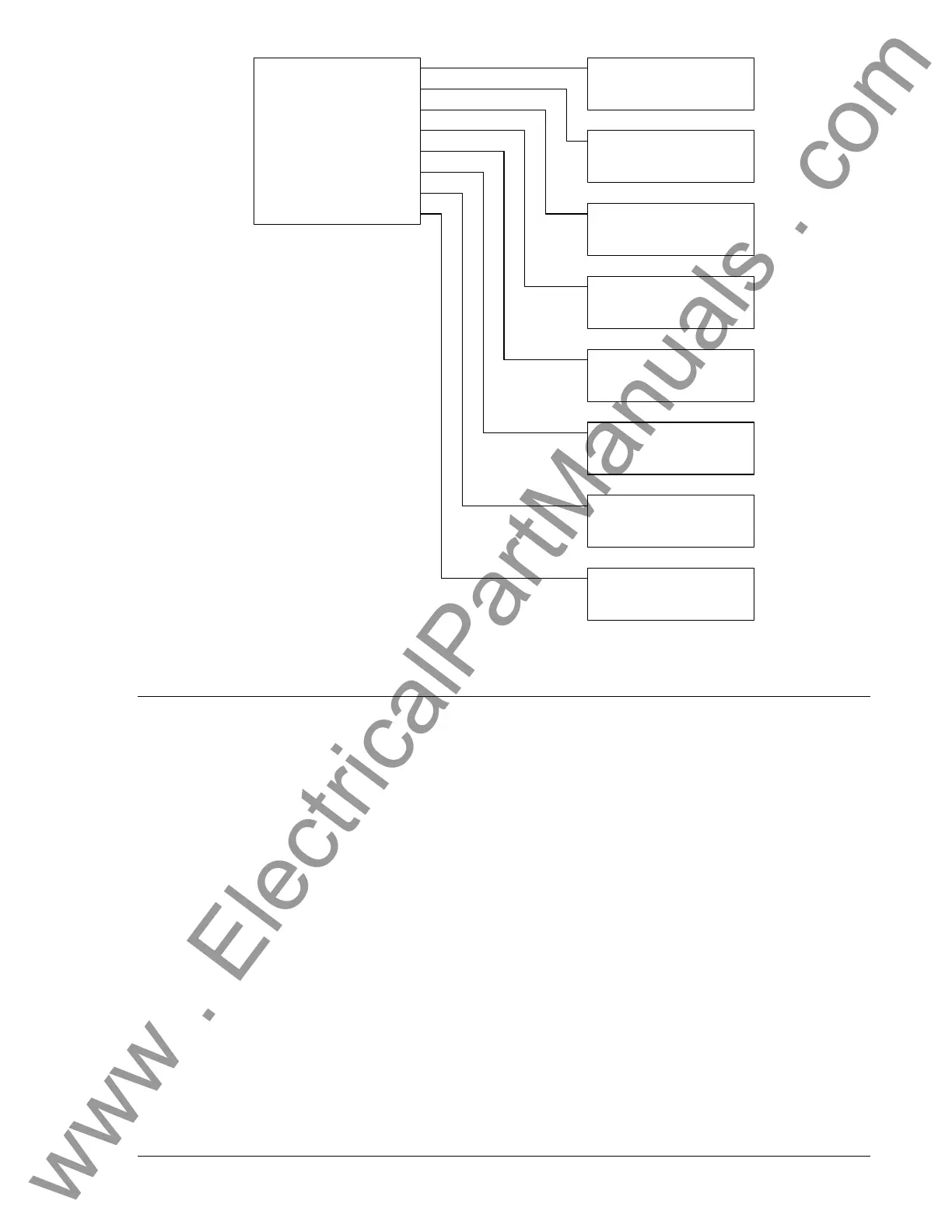

Figure 2-3. Settings Screen Branches
Table 2-2. General Settings Screen Branches
• FRONT PANEL HMI
o SUMMARY VIEW
o SCROLL DELAY
o LCD CONTRAST
o SLEEP MODE
o LANGUAGE
o CONFIGURABLE METERING
• CONFIGURE DATE/TIME
o YEAR
o MONTH
o DAY
o HOURS
o MINUTES
o SECONDS
o UTC OFFSET
o DST ENABLED
• VIEW DATE/TIME
• VERSION INFO
o FIRMWARE VERSION
o BOOT CODE
o SERIAL NUMBER
o PART NUMBER
o MODEL NUMBER
o LANGUAGE VERSION
o LANGUAGE PART NUM
