9400200990 Rev I DGC-2020 BESTCOMSPlus Software 4-25

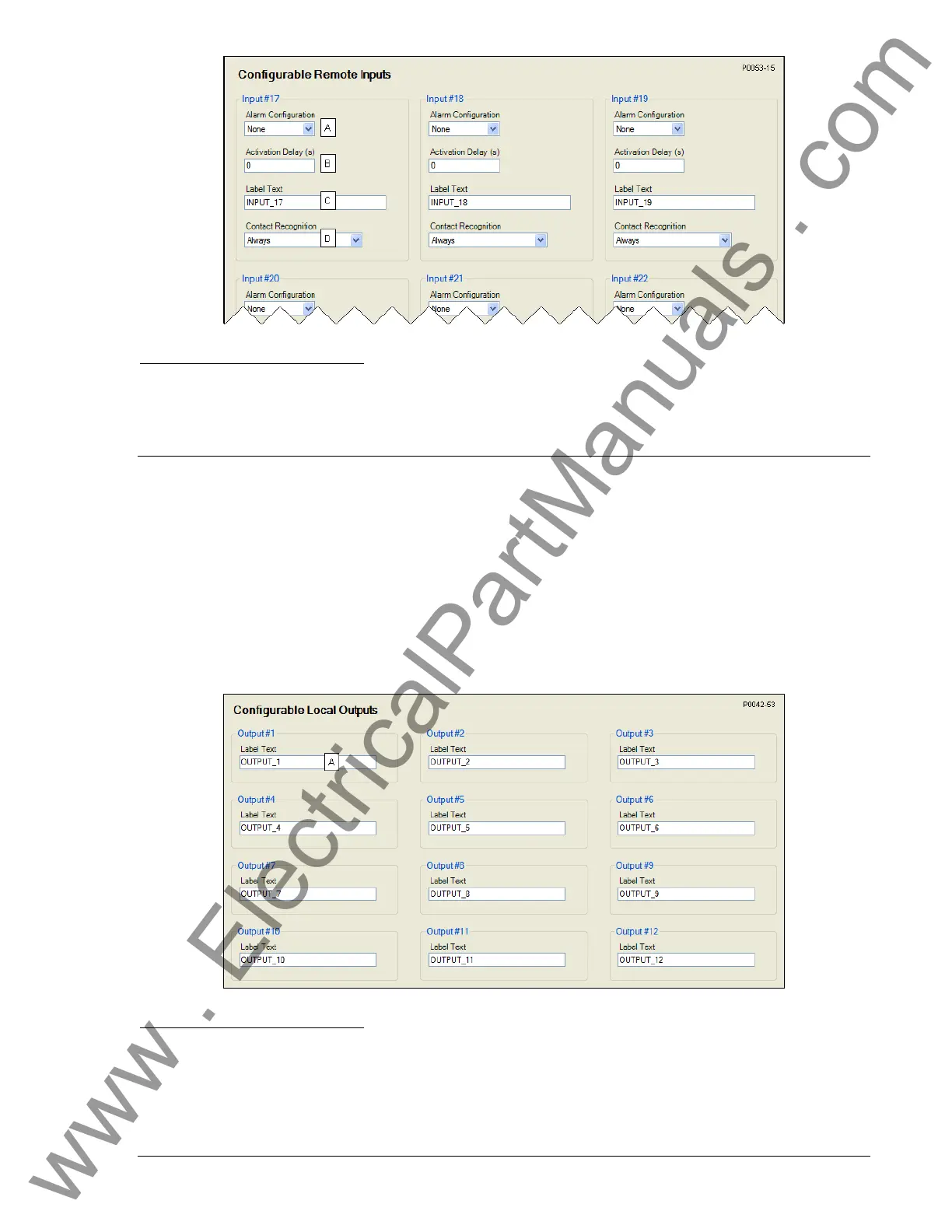

Figure 4-23. Configurable Remote Inputs Settings
A
Alarm Configuration: None, Prealarm, or Alarm.
B
Activation Delay: Adjustable from 0 to 300 s in 1 s increments.
C
Label Text: An alphanumeric character string with a maximum of 16 characters.
D
Contact Recognition: Always or While Engine Running Only.
PROGRAMMABLE OUTPUTS
DGC-2020 output contacts include four user-programmable output contacts if the style number is
xxAxxxxxx. If the style number is xxBxxxxxx, twelve output contacts are provided. An additional 24 output
contacts are provided with an optional CEM-2020 (Contact Expansion Module).
Configurable Local Outputs
To make identifying the output contacts easier, each of the output contacts can be given a user-assigned
name
A
.
BESTCOMSPlus settings for the configurable output contacts (DGC-2020, Programmable Outputs,
Configurable Local Outputs) are illustrated in Figure 4-24.
Figure 4-24. Configurable Outputs Settings
A
Label Text: An alphanumeric character string with a maximum of 16 characters.
Configurable Elements
Each of the 8 elements can be independently configured to annunciate an alarm or pre-alarm
A
. A user-
adjustable time delay
B
can be set to delay recognition of an element. By default, all elements are
configured so that they do not trigger an alarm or pre-alarm.
