9400200990 Rev I DGC-2020 BESTlogic+ Programmable Logic 5-9
Other
Comment Block Enter user comments.
Elements
This group contains logic block objects for the 51, 27, 47, 59, 81, 32, and 40 Elements. It also contains
logic block objects for Generator Breaker, AVR Raise/Lower, Governor Raise/Lower, Logic Alarm, Logic
Pre-Alarm, Modem, Configurable Elements, AUTO Mode, OFF Mode, RUN Modem, Parallel to Mains,
and Run with Load.
Table 5-3 lists the names and descriptions of the objects in the El
ements group.

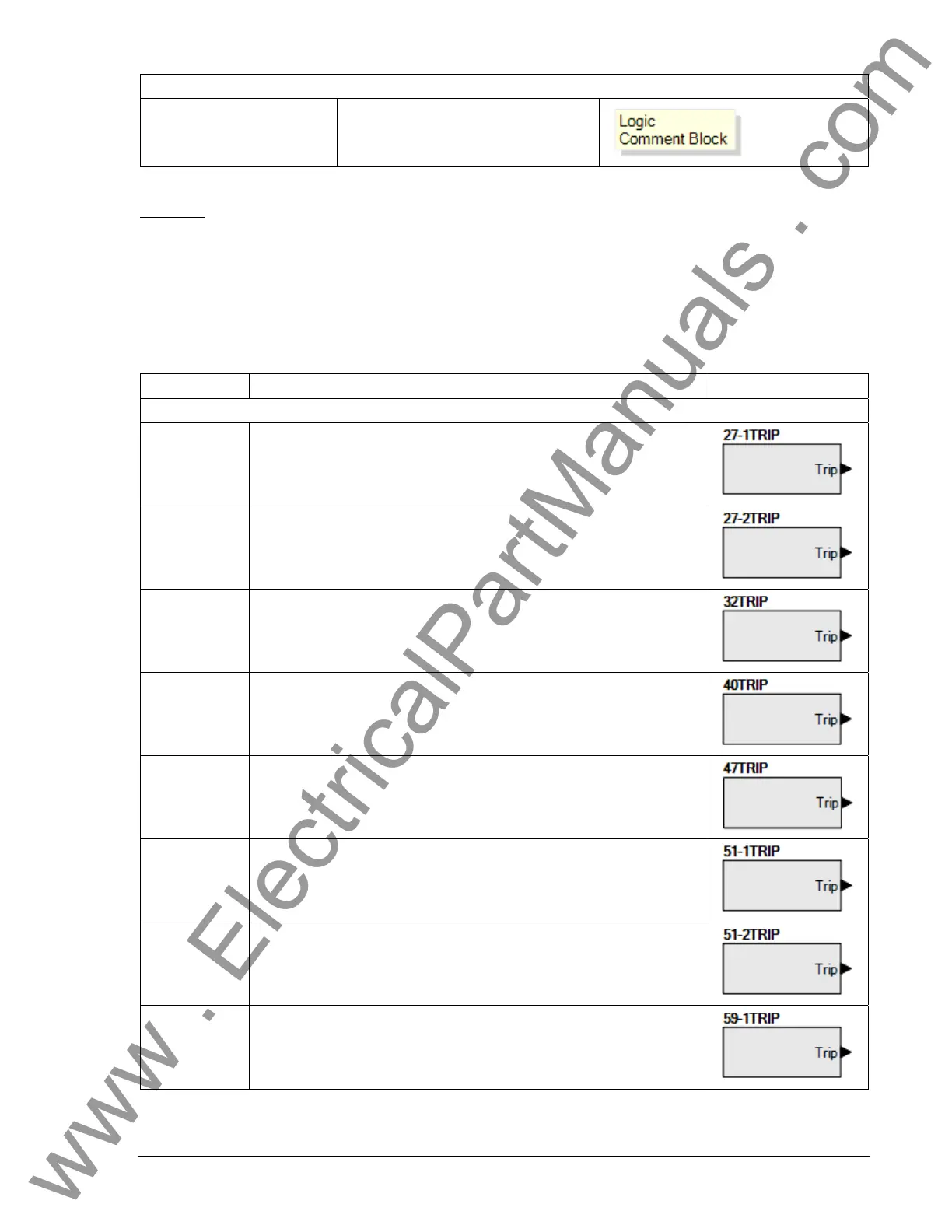

Table 5-3. Elements Group, Names and Descriptions
Name Description Symbol
Protective Element Objects
27-1TRIP
TRUE when the 27-1 undervoltage is in a TRIP condition. Connect to
another logic block input.
27-2TRIP
TRUE when the 27-2 undervoltage is in a TRIP condition. Connect to
another logic block input.
32TRIP
TRUE when the 32 reverse power is in a TRIP condition. Connect to
another logic block input.
40TRIP
TRUE when the 40Q loss of excitation is in a TRIP condition. Connect
to another logic block input.
47TRIP
(Optional)
TRUE when the 47 phase imbalance is in a TRIP condition. Connect to
another logic block input.
51-1TRIP
(Optional)
TRUE when the 51-1 overcurrent is in a TRIP condition. Connect to
another logic block input.
51-2TRIP
(Optional)
TRUE when the 51-2 overcurrent is in a TRIP condition. Connect to
another logic block input.
59-1TRIP
TRUE when the 59-1 overvoltage is in a TRIP condition. Connect to
another logic block input.
