5-10 DGC-2020 BESTlogic+ Programmable 9400200990 Rev I

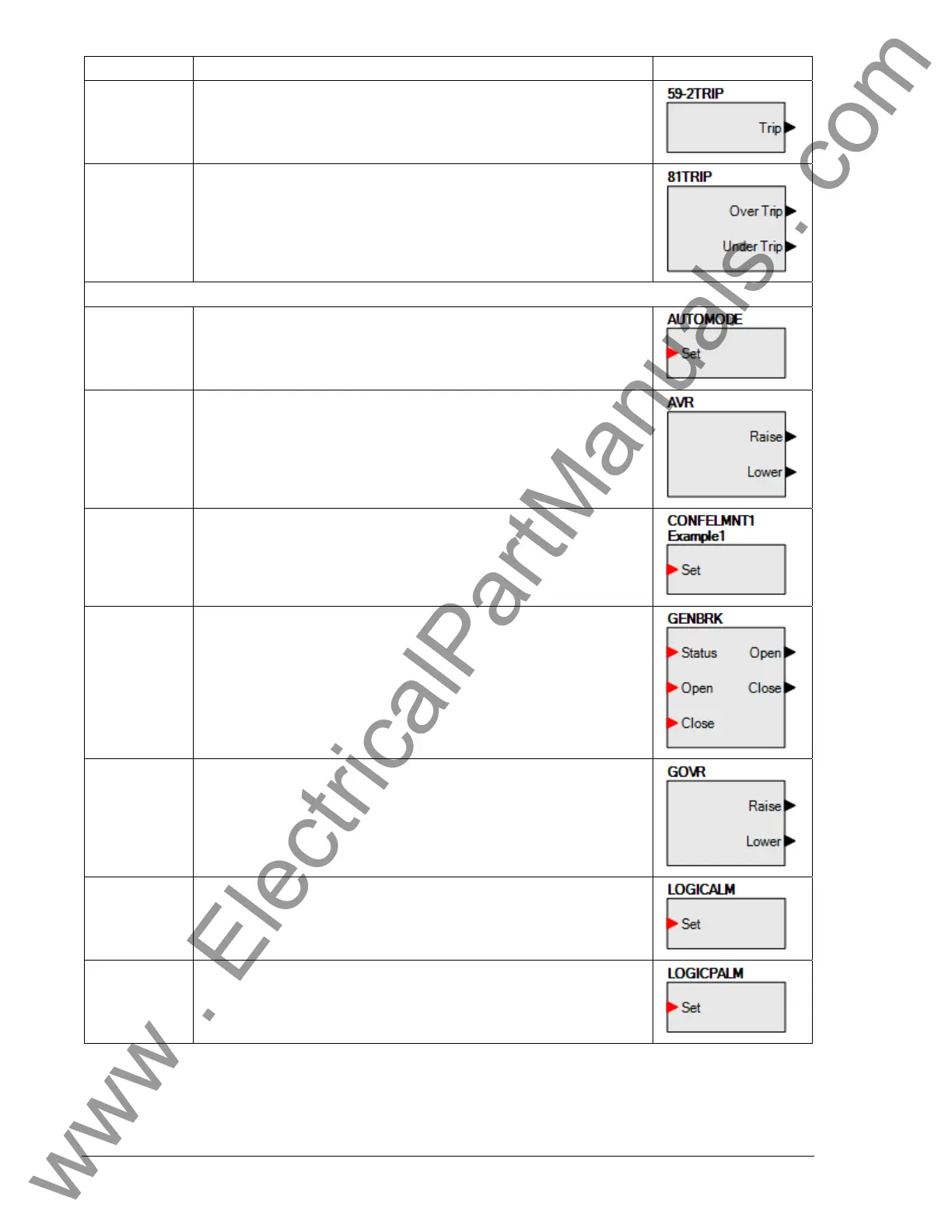

Name Description Symbol
59-2TRIP
TRUE when the 59-2 overvoltage is in a TRIP condition. Connect to
another logic block input.
81TRIP
TRUE when the 81 frequency is in a TRIP condition. Connect to
another logic block input.
Other Element Objects
AUTOMODE
When this input is TRUE, and the DGC-2020 is in OFF mode, the
DGC-2020 will switch to AUTO mode. This is a pulsed input. It does
not need to be held after the desired mode switch has occurred.
AVR
Can be connected to inputs of other logic blocks. When the AVR is
being raised, the Raise output is TRUE. When being lowered, the
Lower output is TRUE.
CONFELMNT
Eight configurable elements can be set up on the Configurable
Elements screen using the Settings Explorer. A configurable element
can be programmed to annunciate an alarm or pre-alarm when the
input is TRUE.
GENBRK
Used to control the generator breaker. Connect the inputs and outputs
to inputs and outputs of other logic blocks.
GOVR
Can be connected to inputs of other logic blocks. When the Governor is
being raised, the Raise output is TRUE. When being lowered, the
Lower output is TRUE.
LOGICALM When this input is TRUE, the DGC-2020 goes into an Alarm condition.
LOGICPALM
When this input is TRUE, the DGC-2020 goes into a Pre-alarm
condition.
