Basler DGC-2020 User Manual

5-8 DGC-2020 BESTlogic+ Programmable 9400200990 Rev I

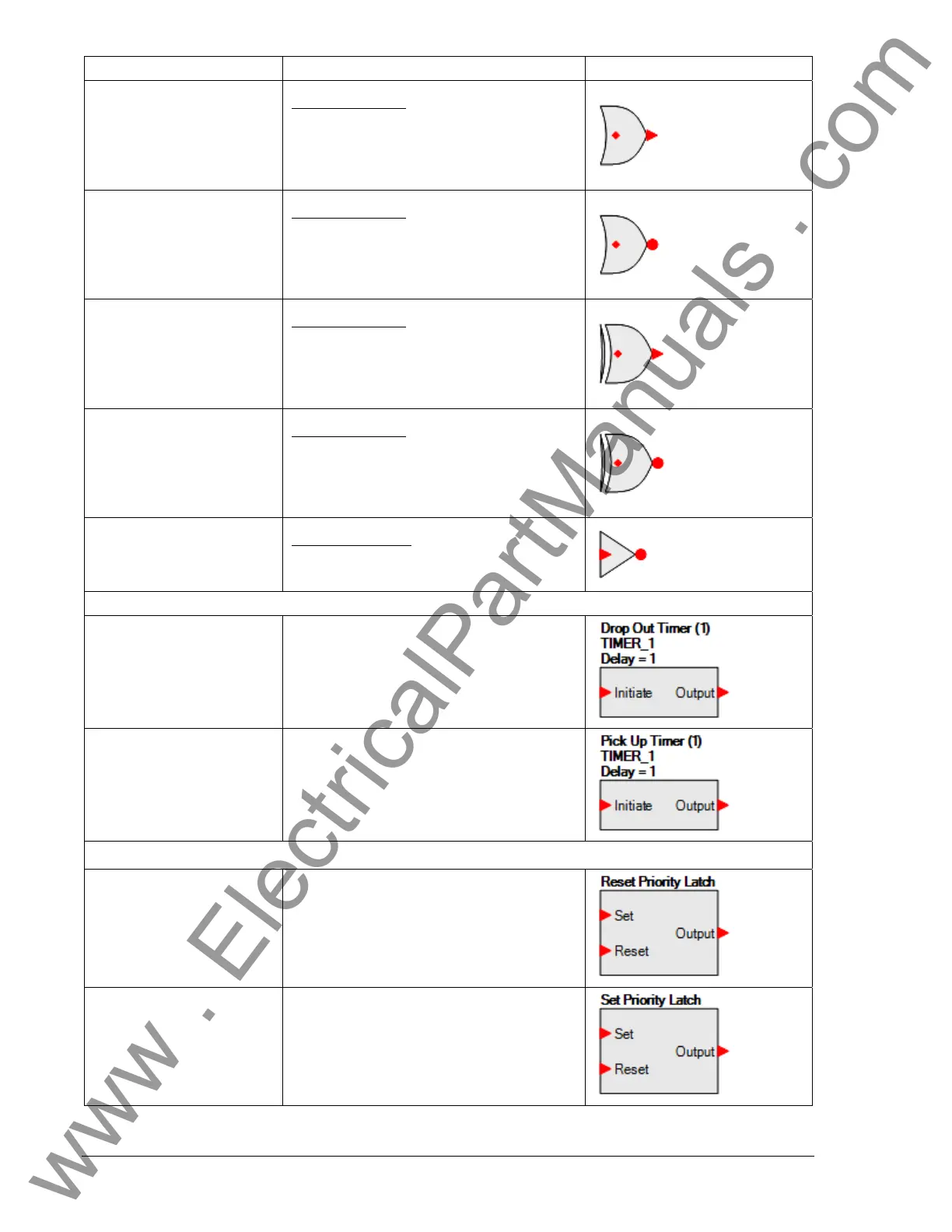

Name Description Symbol
OR
Input Output
0 0 0
0 1 1
1 0 1
1 1 1
NOR
Input Output
0 0 1
0 1 0
1 0 0
1 1 0
XOR
Input Output
0 0 0
0 1 1
1 0 1
1 1 0
XNOR
Input Output
0 0 1
0 1 0
1 0 0
1 1 1
NOT
Input Output
0 1
1 0
Pickup and Dropout Timers
Drop Out Timer Used to set a delay in the logic.
Pickup Up Timer Used to set a delay in the logic.
Latches
Reset Priority Latch Resets latch.
Set Priority Latch Sets latch.
