Measurement frequency, measurement repeat time and response time
A complete measurement cycle of the sensor consists of the following steps:
1. Exposure and read out
2. Calculation
3. Output of the measured values
Process steps are executed in parallel to increase measuring speed. The illustrations below de-
scribe two situations: Measurement rate limited by exposure time (fig.1) and measuring rate lim-
ited by calculation time (fig.2):

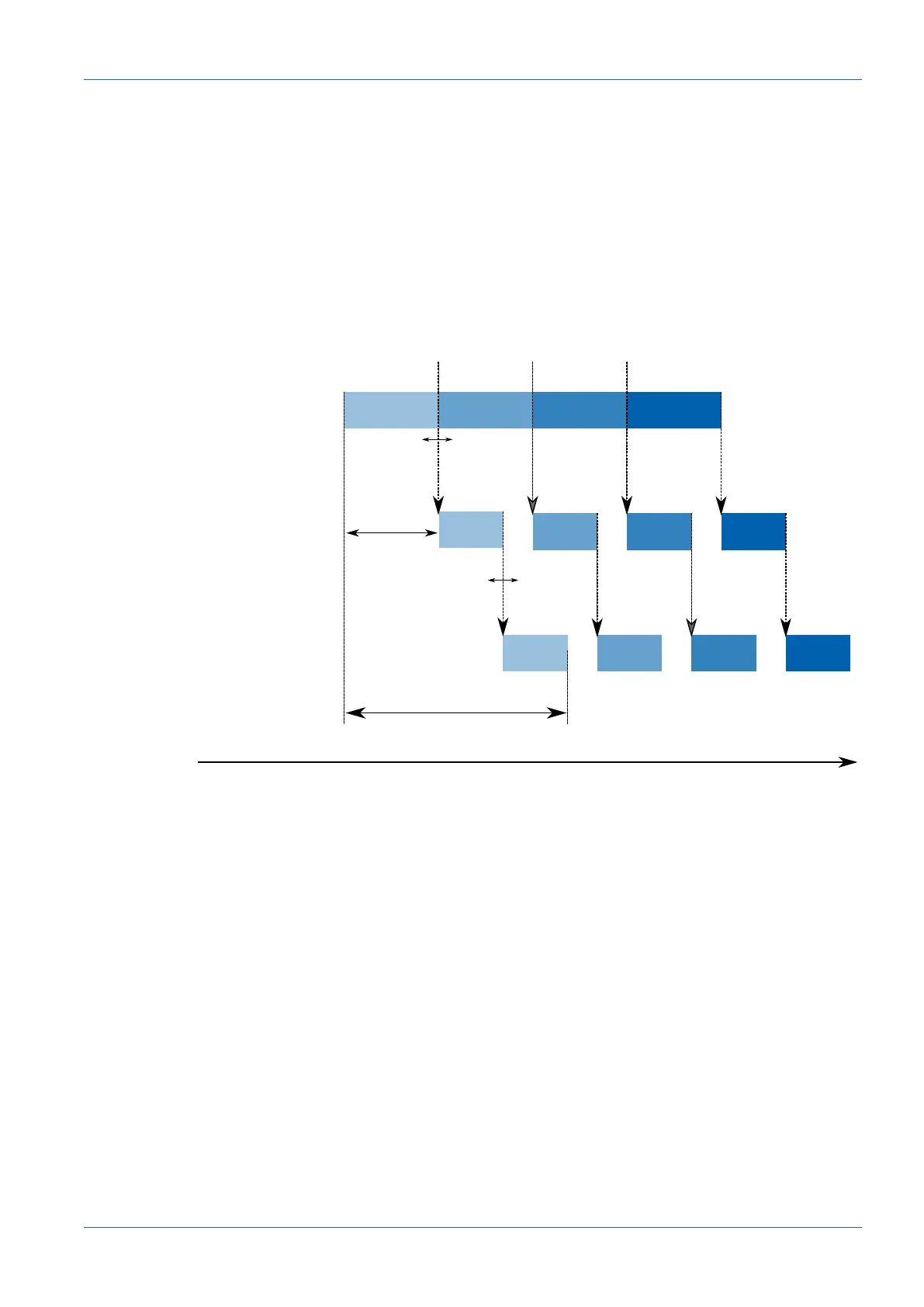

Single shot
mode (trigger)
Earliest possible
trigger pulse
Exposure &
read out
Calculation
Measured value output
Depending on:
- Exposure time
- Field of view
Measurement
repeat time
Depending on the
measurement tool
Response time
Time
Ill.5: Measurement rate limited by exposure time
