3 | Description Baumer
12 Operating Manual OX100 | V2
Single shot
mode (trigger)
Earliest possible
trigger pulse
Exposure &
read out
Calculation
Measured value output
Depending on:
- Exposure time
- Field of view
Measurement
repeat time
Depending on the
measurement tool
Response time
Time

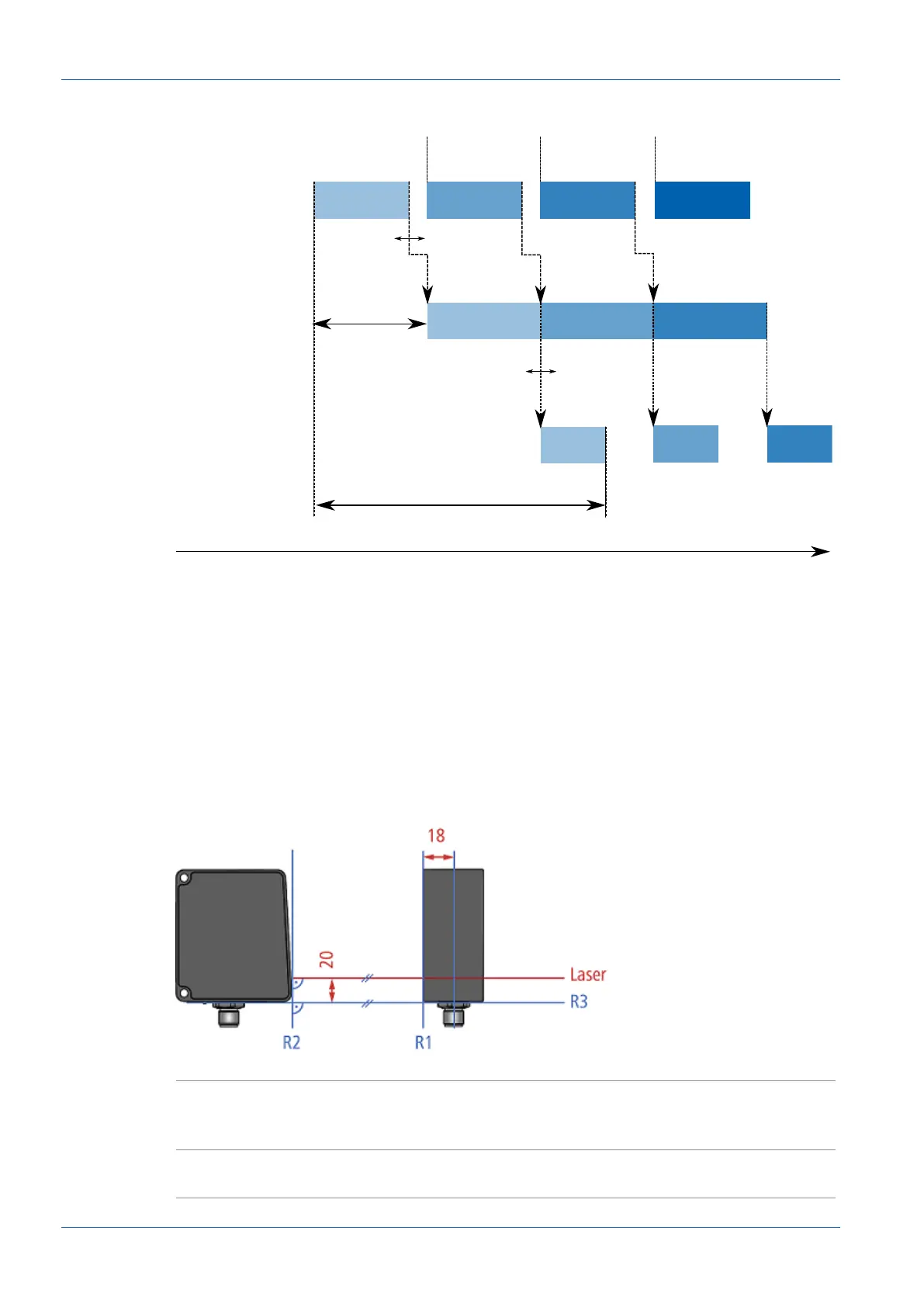

Ill.6: Measurement rate limited by calculation time
The time between two exposure periods is called the measurement repeat time, which can be
converted into a measurement frequency. The calculated measurement frequency indicates
how many measured values the sensor can output per second.
n
Formula for calculating the measurement frequency:
▪ Measurement frequency [kHz] = 1 / Measurement repeat time [ms]
3.1.3 Reference surfaces
The purpose of the reference surfaces R1 to R3 presented below is to facilitate alignment of the
sensor during mounting and commissioning.
Ill.7: Reference surfaces
R1 Reference surface 1; positioned parallel
to the side surface at a right angle to
the laser beam
R2 Reference level 2; is in a right angle po-
sition towards the laser beam
R3 Reference surface 3; extends parallel
to the laser beam
