Baumer Web interface operation | 9
V2 | OX100 Operating Manual 51
Using an auxiliary plate
To compensate any irregularities in the reference surface you may use an auxiliary plate for the
teach-in process. The auxiliary plate should be as even as possible and provide the minimum
length of the reference surface L
R,min
. According to the sensor's sensing range, L
R,min
is at ap-
prox. 50% of the field of view depth at the reference distance. Conditions are the same as for
teaching of Flex Mount. Make sure that the auxiliary plate is parallel to the reference surface
underneath. As long as being within the sensor's measurement field, the thickness of the auxil-
iary plate can be selected at will. In the next step, the thickness may be deducted via the web
interface.

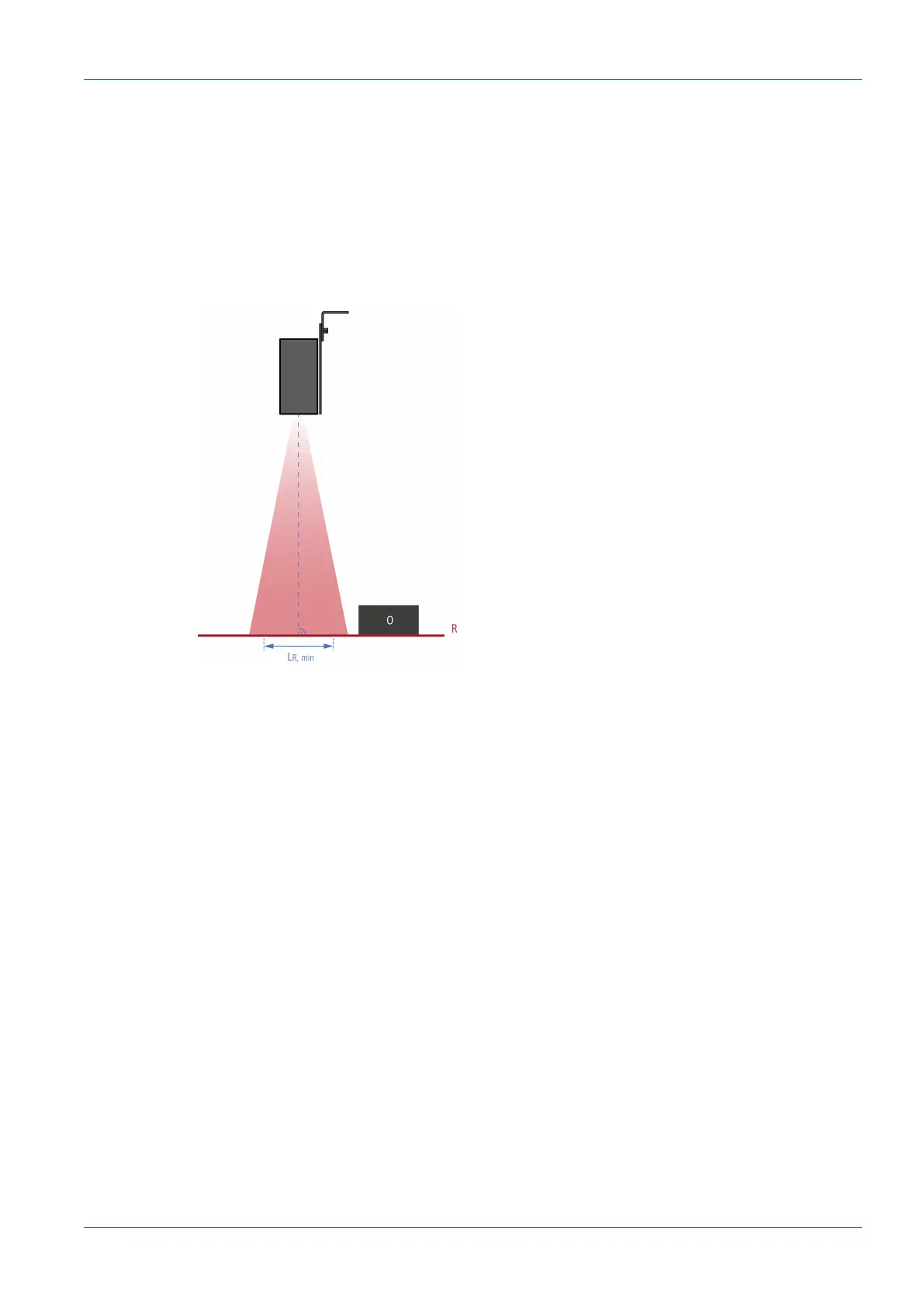

Ill.22: Minimum length of the the reference surface L
R, min
