Mounting
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10
155
of 314
6

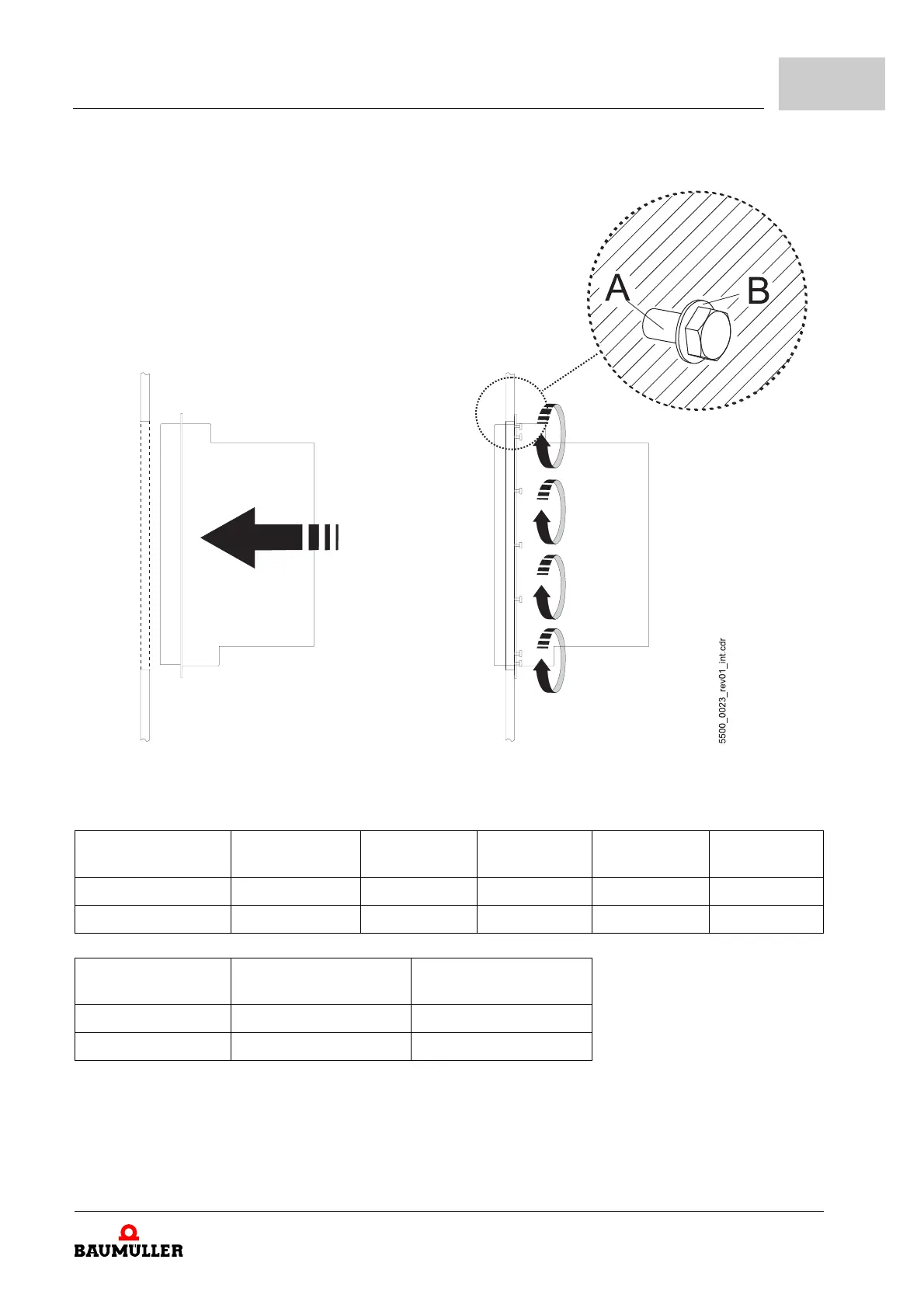

Figure 75: Mounting instruction „diverse“
Device BM552X-A/F/Z/C BM553X-A/F/C
BM563X-F
BM554X-A/F
BM564X-F
BM555X-A/F
BM565X-F
BM556X-A/F
BM566X-F
A - Screws 4 x M5 14 x M4 16 x M5 16 x M8 20 x M8
B - Washers 4 x (5.3 x 10) 14 x (4.3 x 9) 16 x (5.3 x 15) 16 x (8.4x21) 20 x (8.4x21)
Device BM565X-FXX9
BM575X-FXX9
BM566X-FXX9
BM576X-FXX9
A - Screws 18x M6 18 x M8
B - Washers 18 x (6.4x17) 18 x (8.4x21)
