Mounting instructions
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10 Baumüller Nürnberg GmbH
156
of 314
6.3

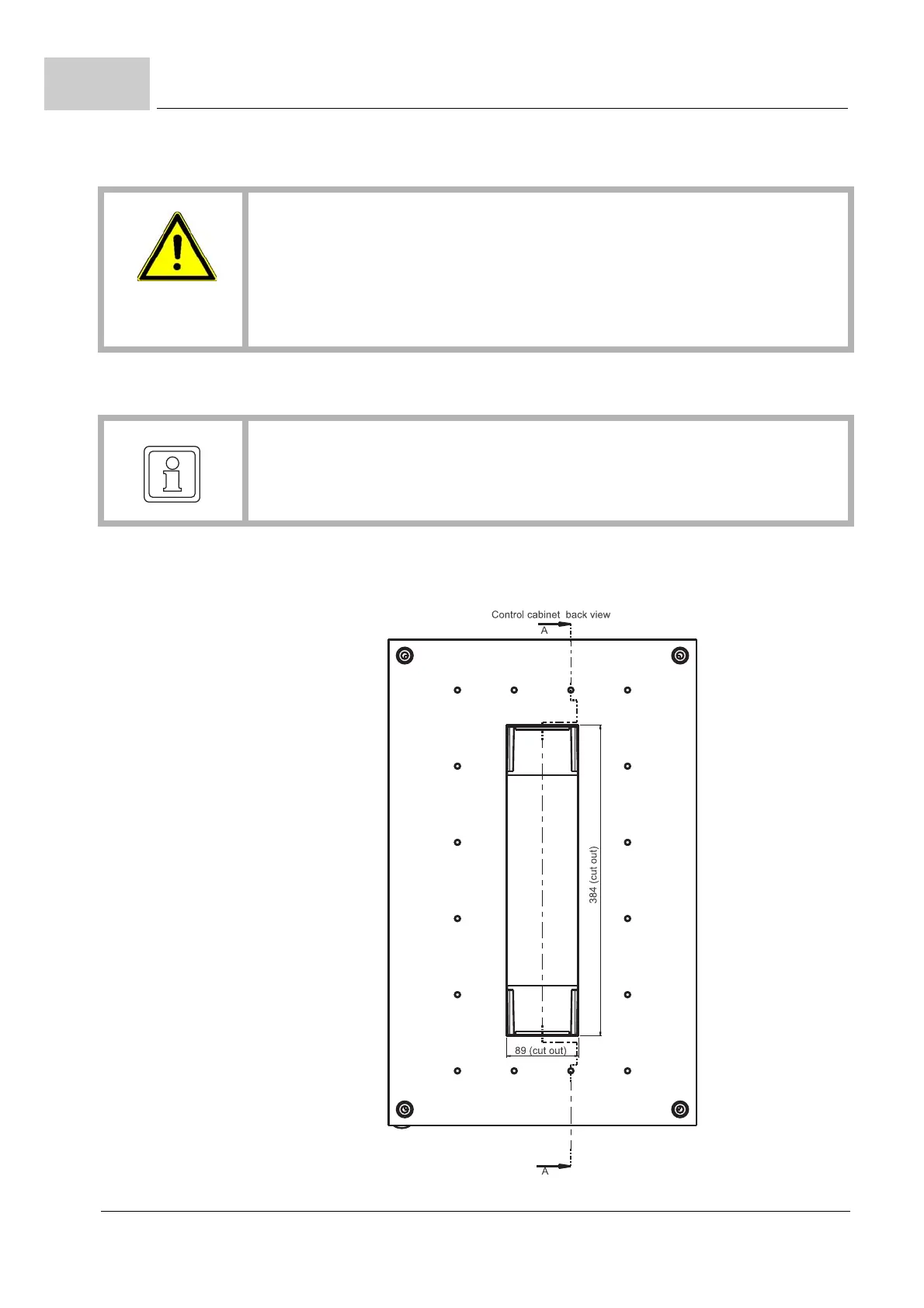

Type of protection: control cabinet with built in through-hole devices BM552X-A/F
IP protection class for air-cooled through-hole devices: IP44
IP pr
otection class for water-cooled through-hole devices: IP54
WARNING!
Danger because of conductive fluid in connection with electricity!
The mounting drills are outside of the gasket. With non-waterproof fastening holes,
e. g. the liquid coolant can ingress into the control cabinet.
m Seal the mountings against water. Use, e.g., waterproof draw-in bolts and sealants
between screws and bolts.
NOTE
The following required control cabinet mounting is only valid for control cabinets with
protection class IP54 or higher.
